H3C S3600 Series Installation Manual

Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-35
(1) 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs
(2) Console port
(3) 7-segment digital LED (4) Mode button
(5) Mode LED (6) AC Power LED
(7) DC power LED (8) 1000Base-X SFP port status LED

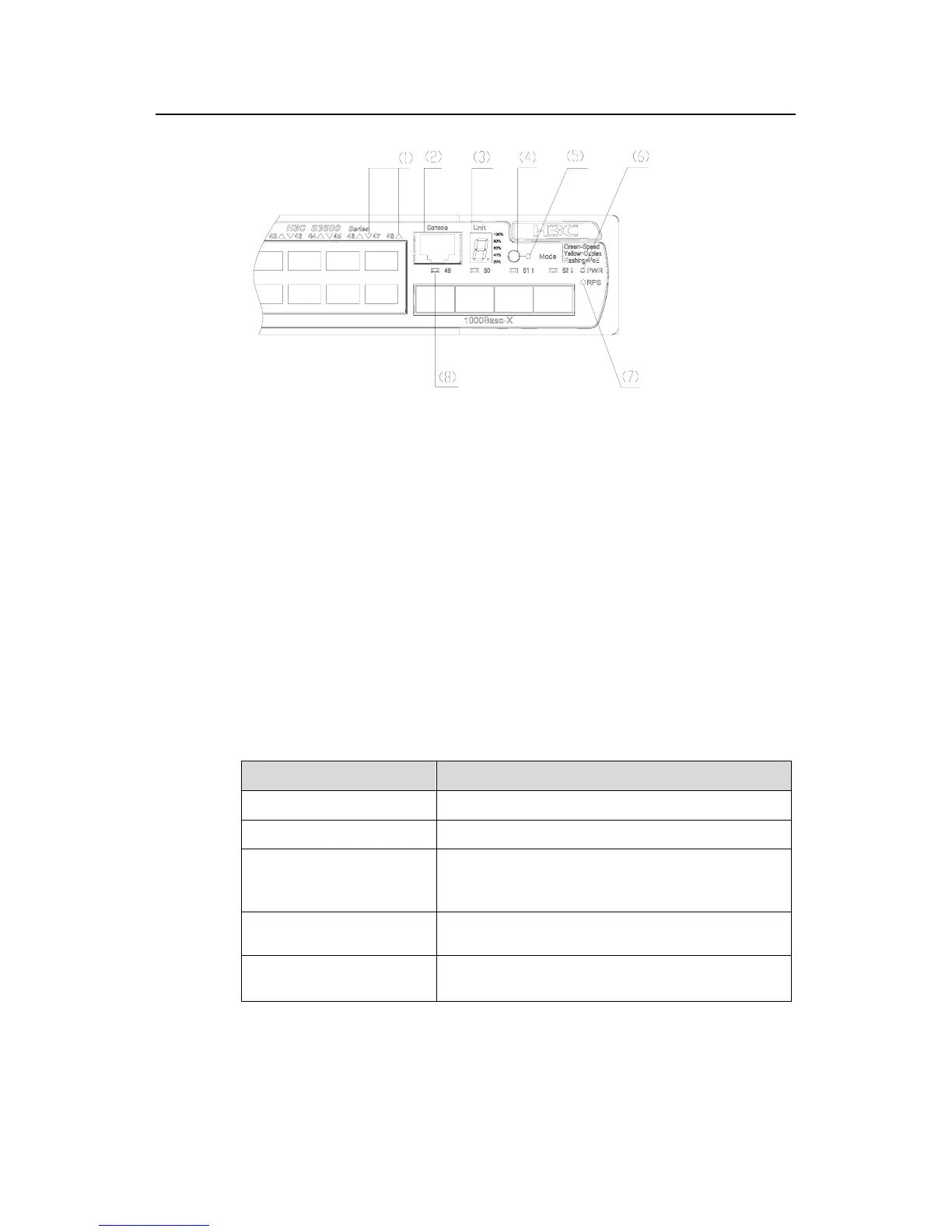

Figure 1-15 Front panel of the S3600-52P-PWR-SI/S3600-52P-PWR-EI
II. LEDs
The S3600-52P-PWR-SI/S3600-52P-PWR-EI provides one AC power LED, one DC
power LED, one mode LED, one 7-segment digital LED, forty-eight
10Base-T/100Base-TX auto-sensing Ethernet port status LEDs, and four 1000Base-X
SFP port status LEDs. You can learn how the switch operates by observing the LEDs
listed in
Table 1-9.
III. Attributes of the 10Base-T/100Base-TX Ethernet ports
Table 1-14 Attributes of the 10Base-T/100Base-TX Ethernet ports
Attribute Description
Connector RJ-45
Number of ports 48
Rate
z 10/100 Mbps, half duplex/full duplex
z MDI/MDI-X auto-sensing
z PoE
Standard
z IEEE 802.3u
z IEEE 802.3af
Transmission distance over
the selected medium
100 m (328.08 ft) over the category-5 unshielded
twisted pair (UTP) cable
