4-3
BOOTP Client Configuration Example
Network requirement
Switch A’s port belonging to VLAN 1 is connected to the LAN. VLAN-interface 1 obtains an IP address
from the DHCP server by using BOOTP.

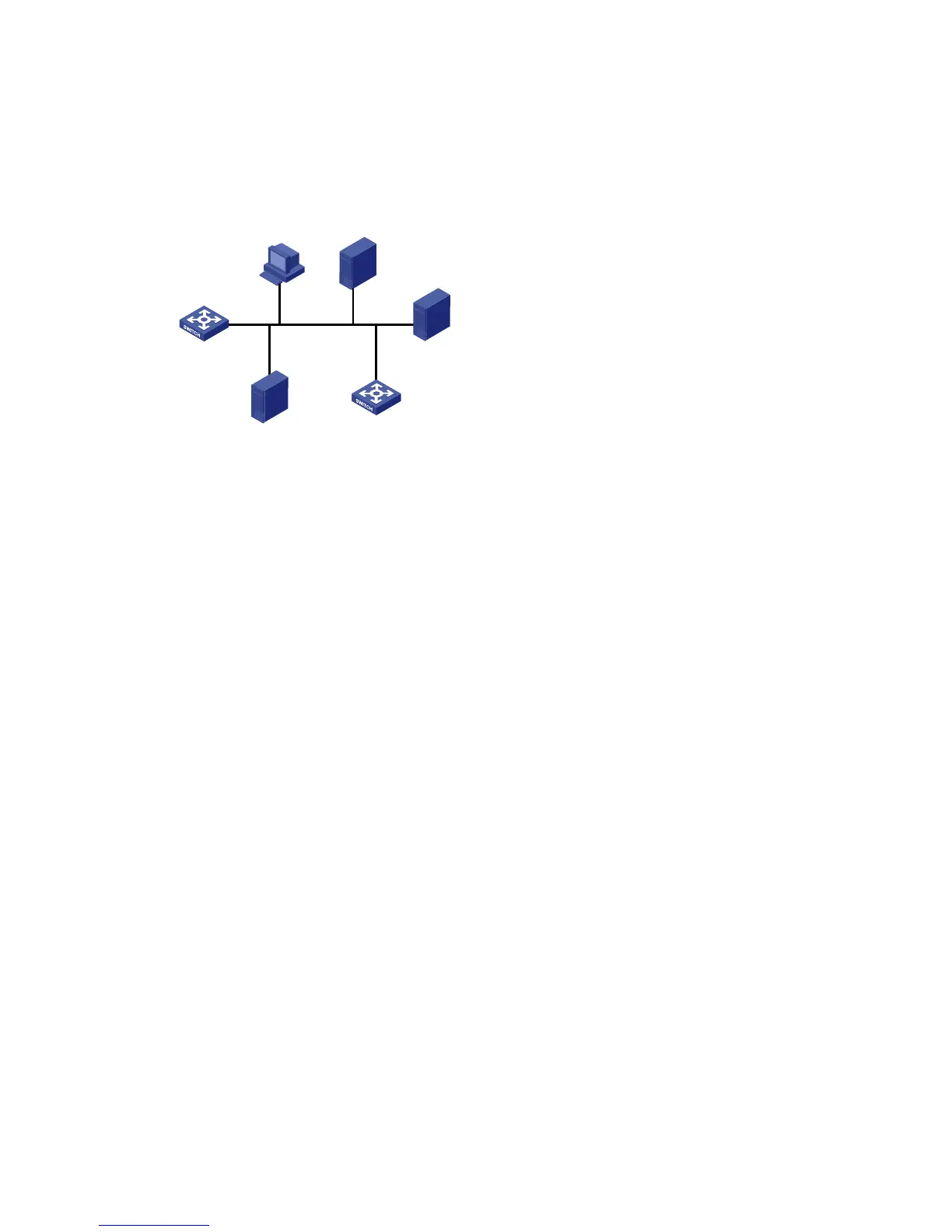

Figure 4-1 Network diagram for BOOTP client configuration example
DHCP serverGateway A
WINS server
10.1.1.4/25
Client
Switch A
Client
DNS server
10.1.1.2/25
Vlan-int1
10.1.1.1/25
Vlan-int1
10.1.1.126/25
Configuration procedure
The following describes only the configuration on Switch A serving as a client.
# Configure VLAN-interface 1 to dynamically obtain an IP address from the DHCP server.
<SwitchA> system-view
[SwitchA] interface vlan-interface 1
[SwitchA-Vlan-interface1] ip address bootp-alloc
# Use the display bootp client command to view the IP address assigned to the BOOTP client.
