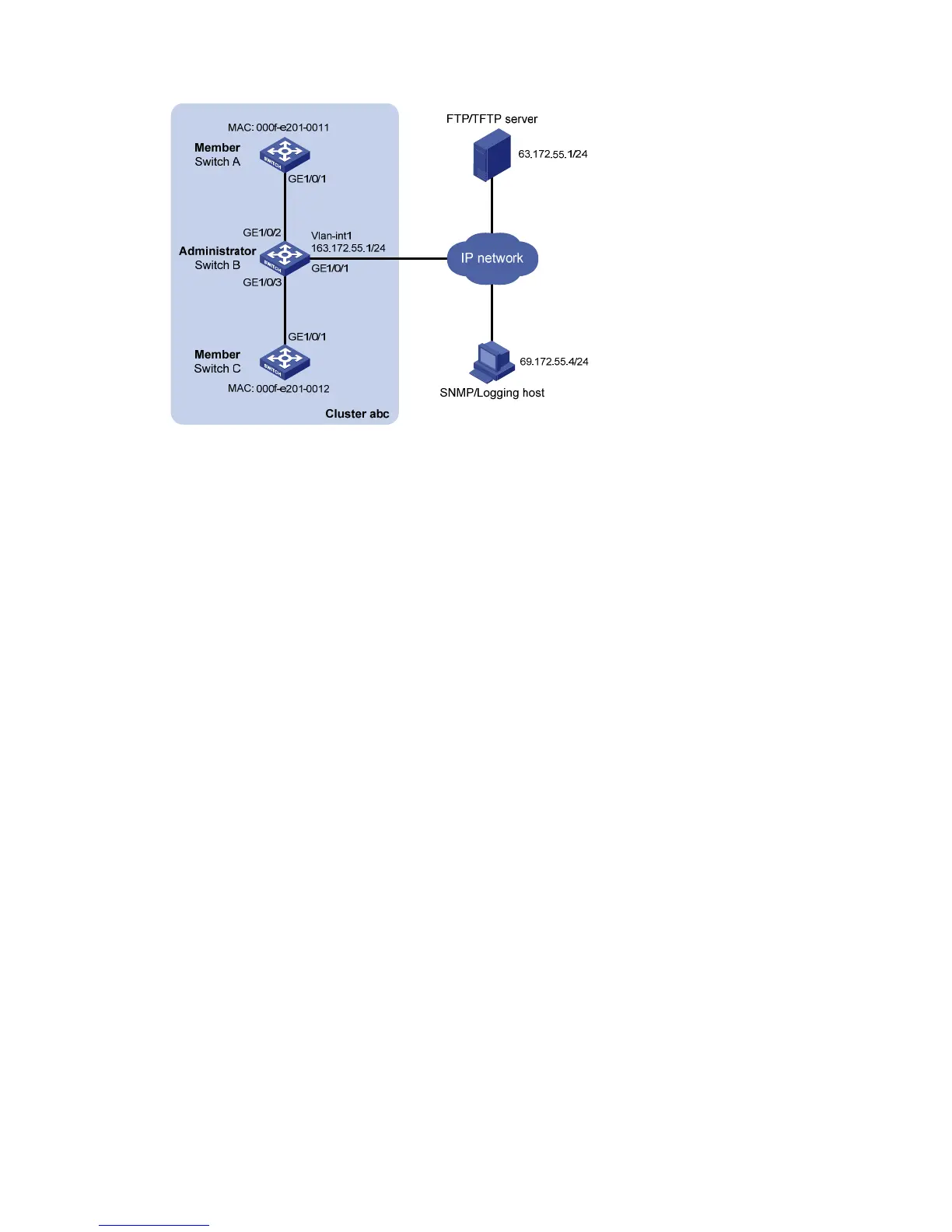

Figure 1-4 Network diagram for cluster management configuration
Configuration procedure
1) Configure the member device Switch A
# Enable NDP globally and for port GigabitEthernet 1/0/1.
<SwitchA> system-view
[SwitchA] ndp enable
[SwitchA] interface gigabitethernet 1/0/1
[SwitchA-GigabitEthernet1/0/1] ndp enable
[SwitchA-GigabitEthernet1/0/1] quit
# Enable NTDP globally and for port GigabitEthernet 1/0/1.
[SwitchA] ntdp enable
[SwitchA] interface gigabitethernet 1/0/1
[SwitchA-GigabitEthernet1/0/1] ntdp enable
[SwitchA-GigabitEthernet1/0/1] quit
# Enable the cluster function.
[SwitchA] cluster enable
2) Configure the member device Switch C
As the configurations of the member devices are the same, the configuration procedure of Switch C is
omitted here.
3) Configure the management device Switch B
# Enable NDP globally and for ports GigabitEthernet 1/0/2 and GigabitEthernet 1/0/3.
<SwitchB> system-view
[SwitchB] ndp enable
[SwitchB] interface gigabitethernet 1/0/2
[SwitchB-GigabitEthernet1/0/2] ndp enable
[SwitchB-GigabitEthernet1/0/2] quit
[SwitchB] interface gigabitethernet 1/0/3
