96-8000 197
G CODES
June 1999

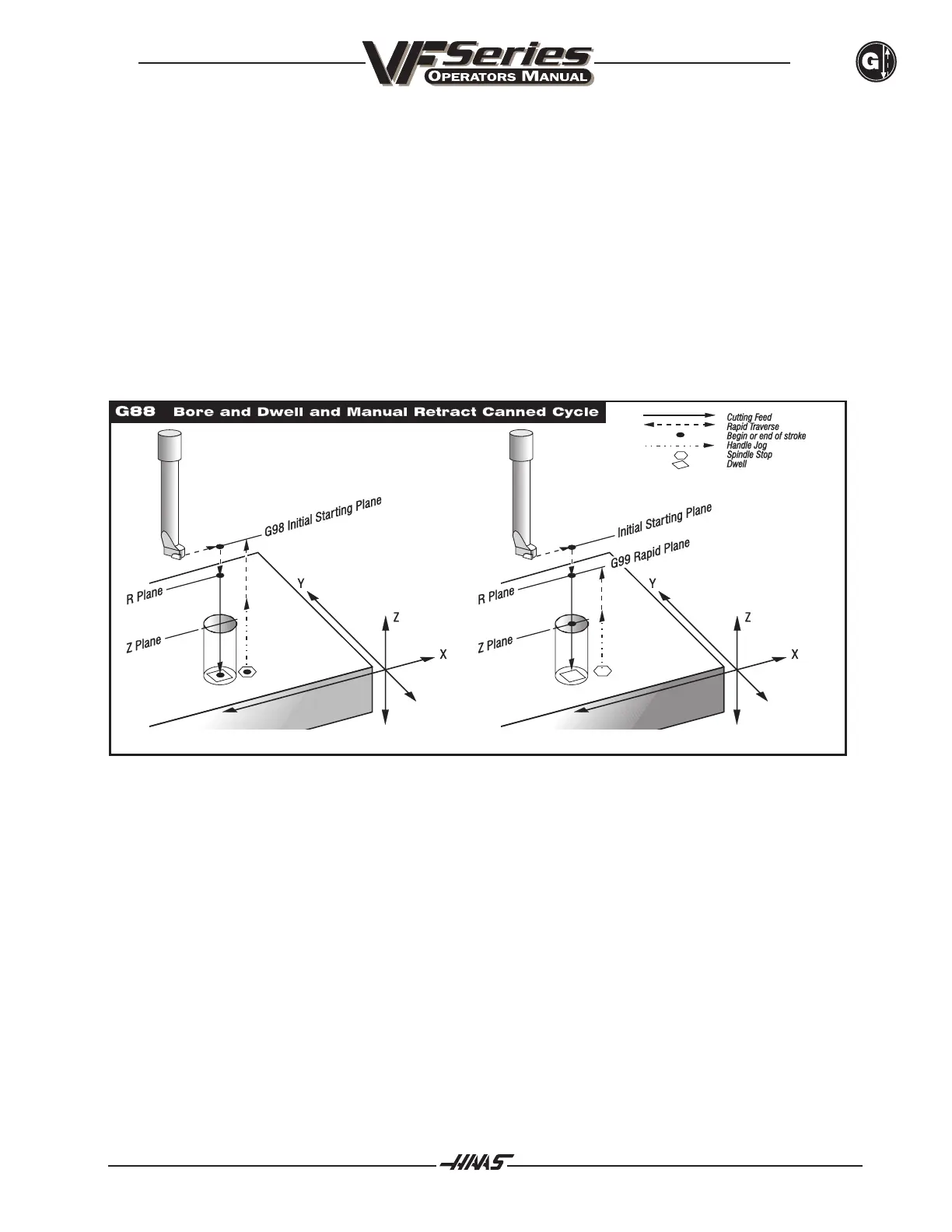

G88 Bore and Dwell and Manual Retract Canned Cycle Group 09
F Feed Rate in inches (mm) per minute
L Number of repeats
P The dwell time at the bottom of the hole
R Position of the R plane
X Optional X-axis motion command
Y Optional Y-axis motion command
Z Position of bottom of hole
This G code is modal in that once activated, every motion of X and/or Y will cause this canned cycle to be
executed until it is canceled or another canned cycle is selected. After manual jog press cycle start to resume
program.
