Installation
3.5 Reconnect battery power
For safety reasons, the battery pack will not be connected during shipment. Once the instrument
has been unpacked, the battery power should be reconnected using the following procedure:
CAUTION
To avoid any damage to the instrument, it will be necessary to perform the above
procedure in reverse (i.e. turn the connection OFF) prior to any future transportation of
this instrument.

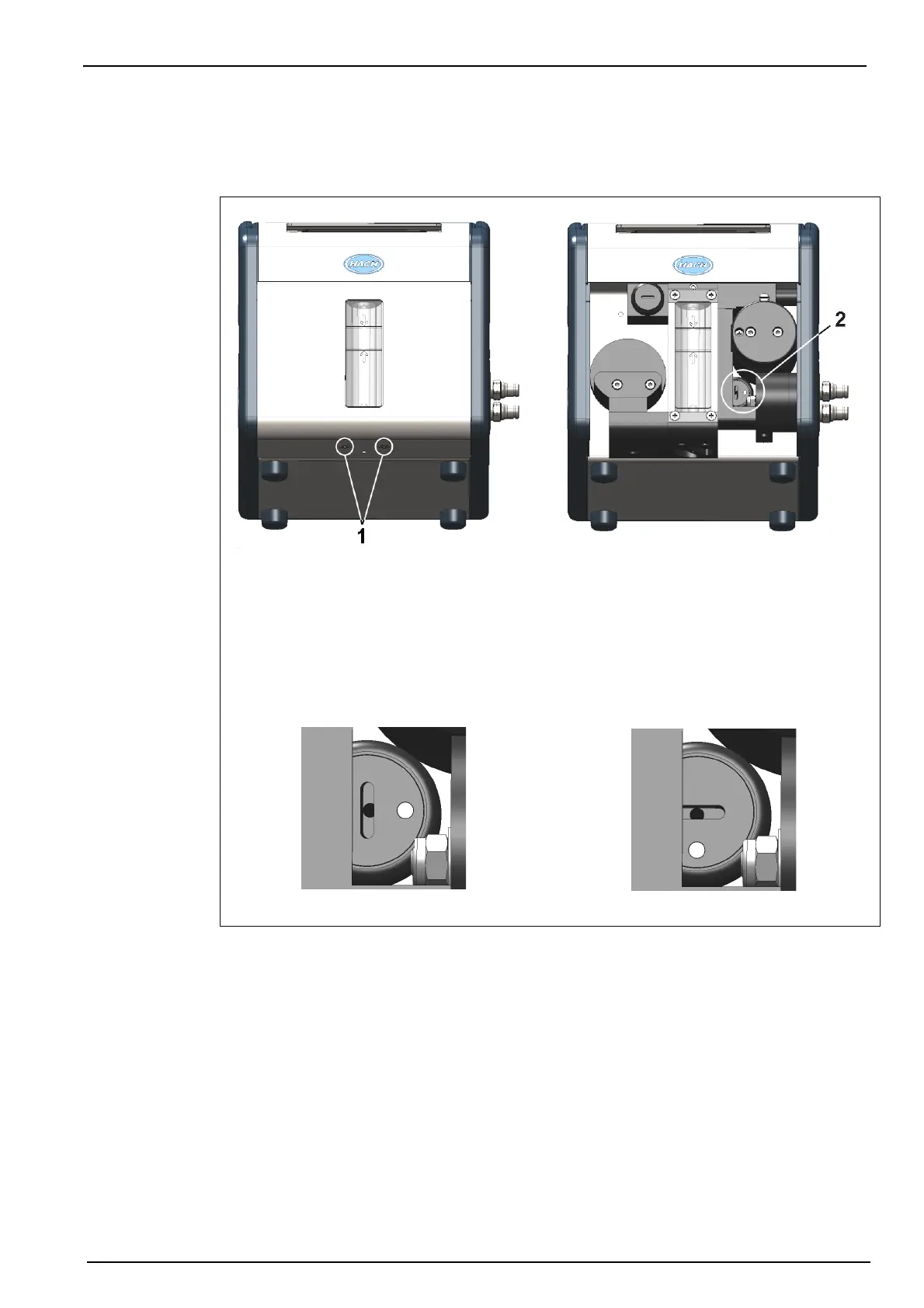

1. Tilt the instrument towards the rear, to reveal two screws underneath (No. 1) that hold the
instrument front panel in place.
2. Using the cross screwdriver supplied in the tool kit, unscrew and remove these screws.
Lift off the front panel to reveal the internal battery power switch (No. 2).
3. Using the long-bladed flat-head screwdriver supplied in the tool kit, turn the switch a
quarter of a turn clockwise to reconnect the battery power. The diagrams below show the
switch in the OFF position as delivered (left) and in the ON position (right).
4. Replace the front panel and secure back in place with the two screws.
