P/N 53063-30, Manual revision: B
2-15
Describing the Cell Saver 5+ System Components
Receptacles and collection containers
Every CS5+ disposable setup must be equipped with the following recepta-
cles: a waste bag, a reinfusion bag and a source of unprocessed blood which
may be either a collection reservoir or an extracorporeal circuit. A typical
disposable set will have saline tubing and spikes to connect to a saline solu-
tion source. An aspiration and anticoagulation (A&A) assembly is also
required. The A&A assembly contains a double lumen tubing which can be
attached to a suction tip for aspiration from the field. Blood and AC solution
are drawn into the tubing by wall suction, mixed and then passed through
the tubing into a collection reservoir. The roller clamp regulates the AC solu-
tion flow.

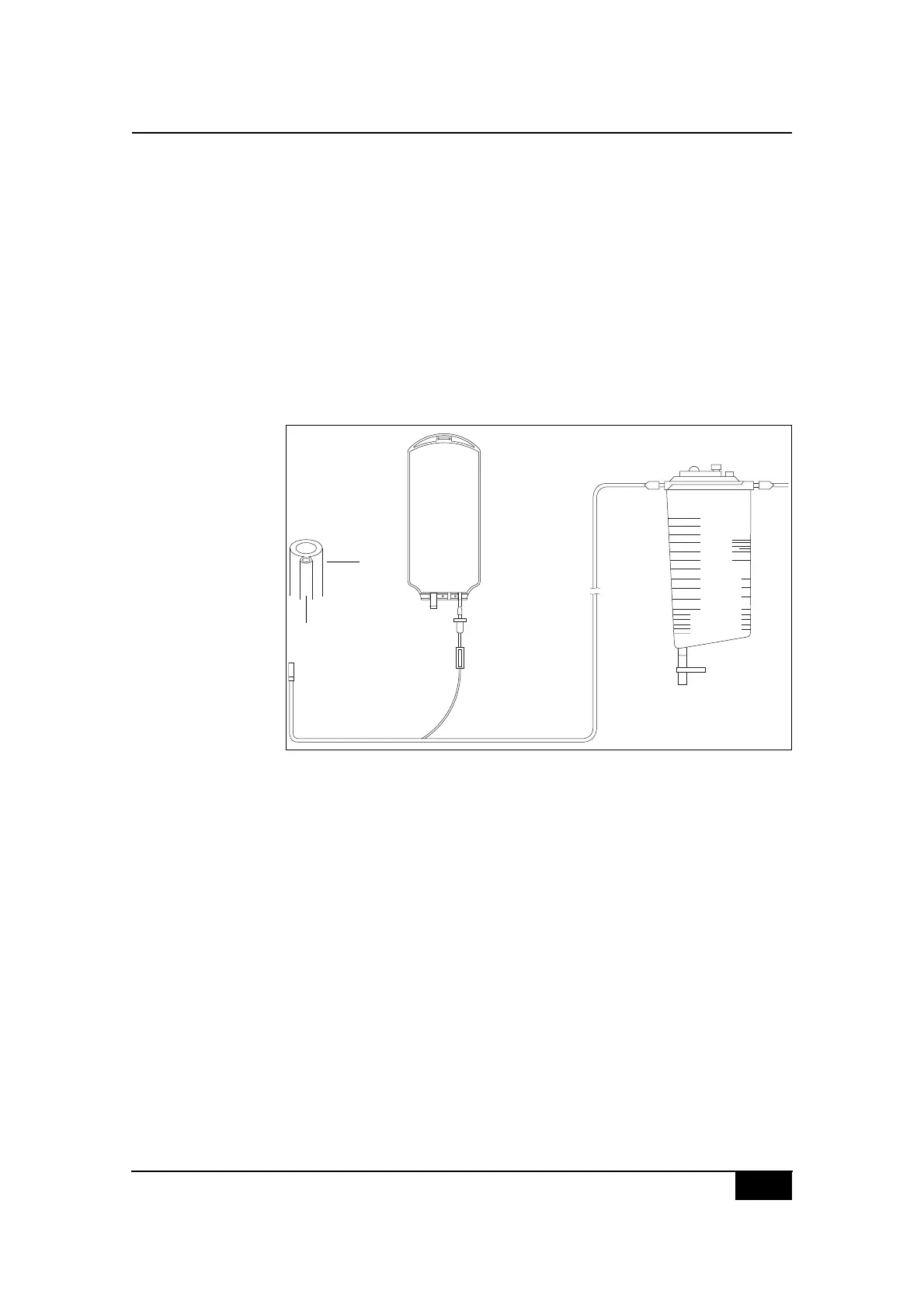

Figure 2-12, The Aspiration & Anticoagulation assembly
Aspiration and Antico-
agulation Assembly
1. Suction line con-
nector
2. Cross section of
A&A tubing
a. large lumen for
anticoagulated
shed blood
b. small lumen for
solution adminis-
tration
3. Saline and AC solu-
tion bag
4. Drip chamber
5. Roller clamp
6. Collection reservoir
7. Line to vacuum
source
8. Reservoir drain
2a.
3.
6.
7.
4.
5.
2.
2b.
1.
8.
