Preparing for a Cell Saver 5+ Procedure
" Hang the waste bag on the pins on the front of the device as depicted.

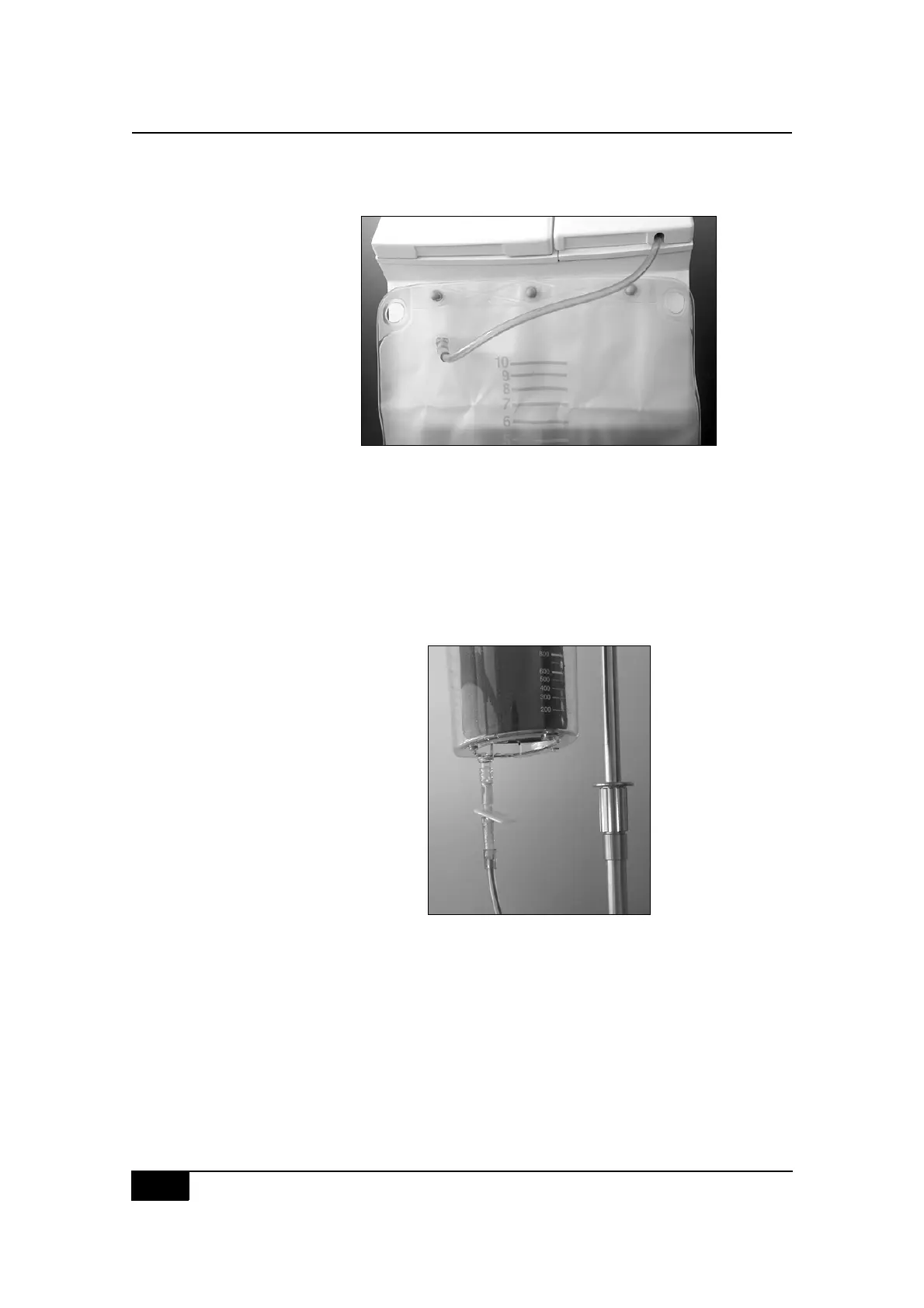

Figure 4-14, Hanging the waste bag
" Verify that the waste bag is securely connected to the effluent line.
" Ensure that the drain port is completely closed.
Connecting the reservoir
" Aseptically connect the red-coded line to the drain tube on the bot-
tom of the reservoir.
Figure 4-15, Connecting the red line to the reservoir
