Preparing for a Cell Saver 5+ Procedure
" Close and lock the manifold latch and lock the pump lever.

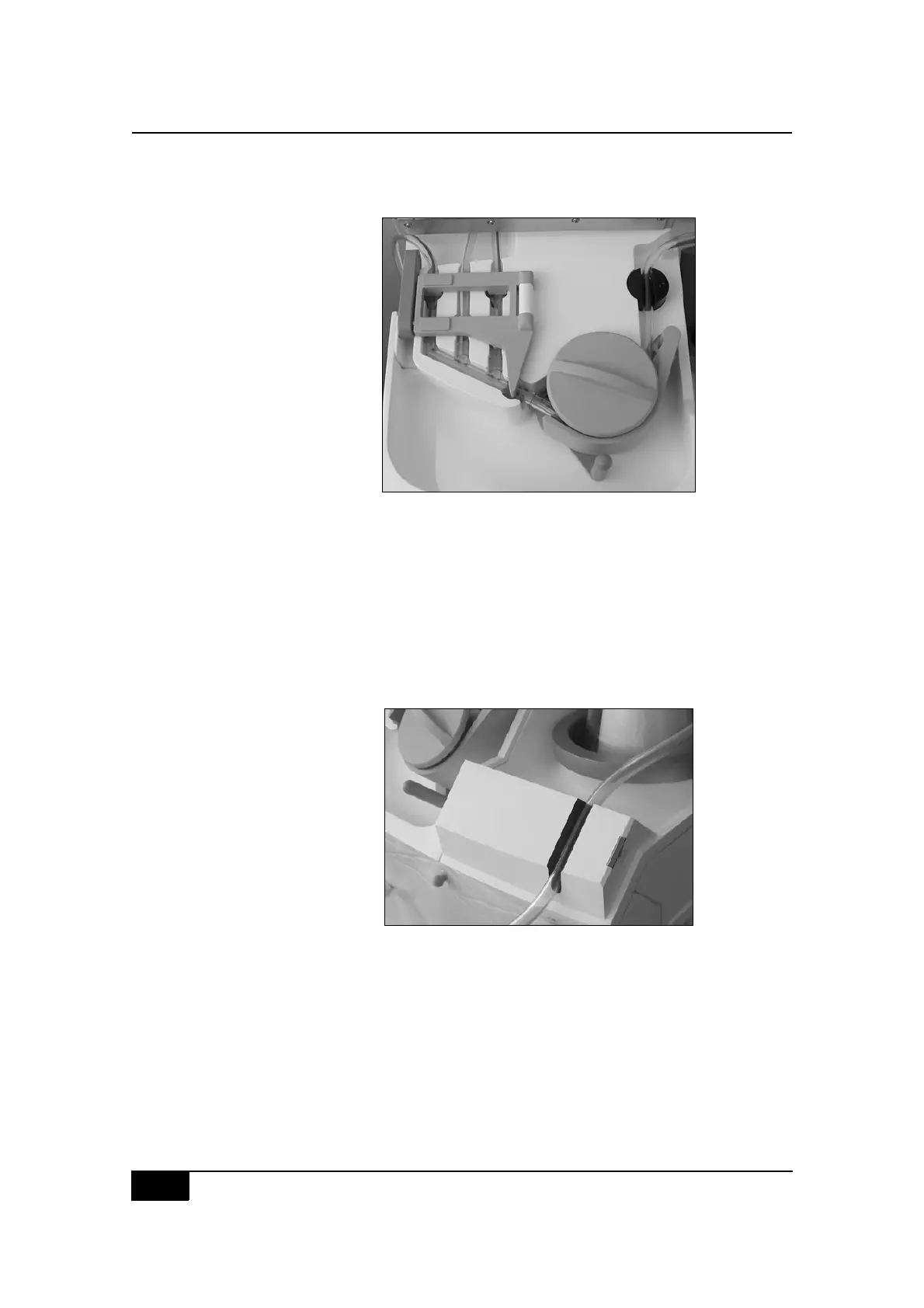

Figure 4-10, Securing the tubing harness
" Close the fluid deck cover.
Installing the line sensor tubing
For the Latham bowl sets
" Thread the effluent tubing through the effluent line sensor groove.
" Ensure that the tubing is deeply inserted as depicted.
Figure 4-11, Installing the line sensor tubing: Latham bowl sets
