96LE008146B

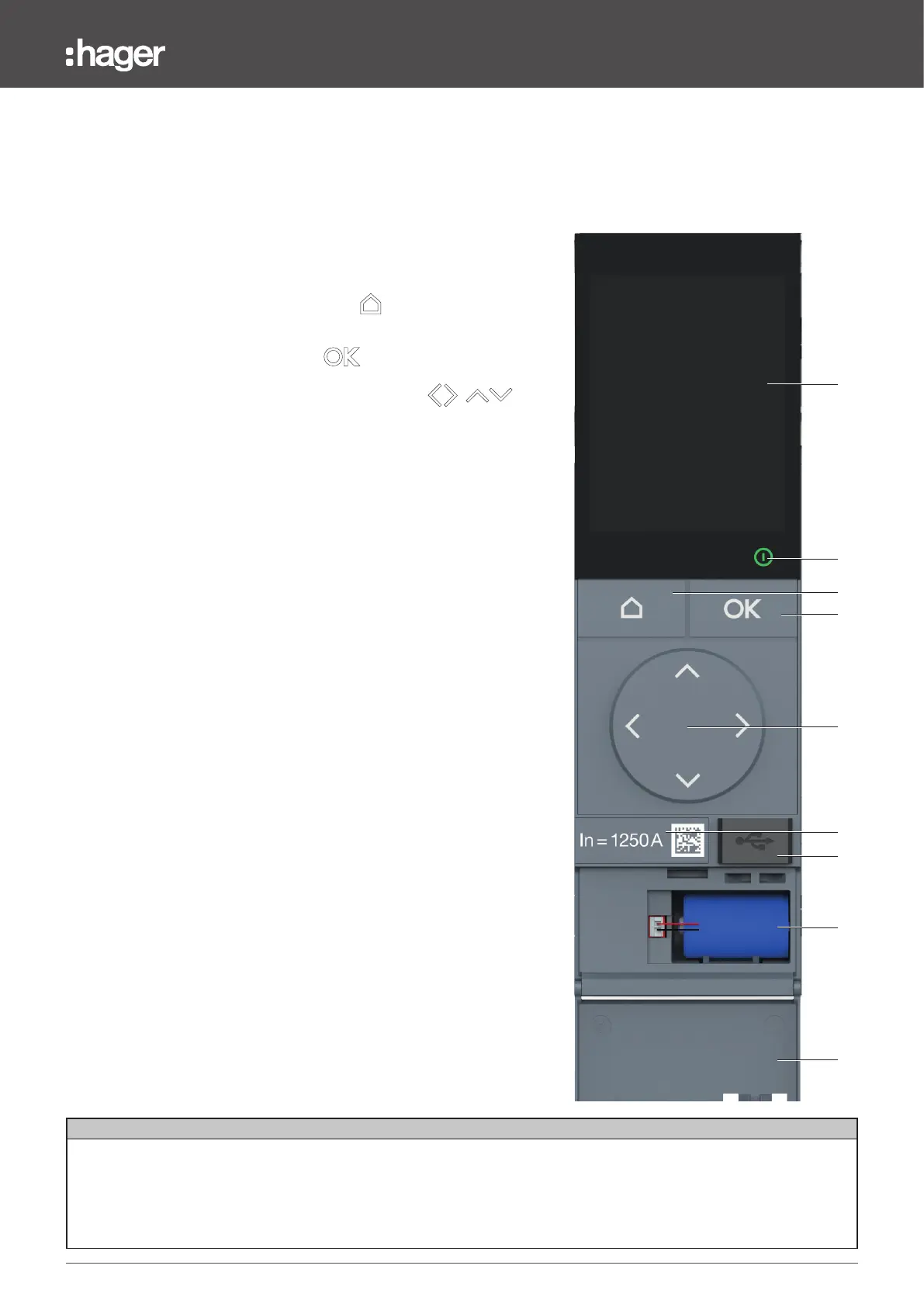

The sentinel Energy trip unit
2.1 General description
1
Graphical colour display
2
ReadyToProtect LED
3
Home button
4
Acknowledgement and confirmation
button
5
Navigation buttons
6
Rated current value In and indication
of optional functions. This value is
shown on the rating plug fitted on the
trip unit.
7
USB-C port to connect an external
battery or a computer equipped with
the Hager Power setup software
8
The backup battery powers the
display after a tripping in order to
indicate the cause of the fault that
was stored.
9
Backup battery housing cover.
1
2
3
4
5
6
7
8
9
The sentinel Energy electronic trip unit includes:
• A graphical colour display and a keyboard with six keys allowing interaction with the trip unit,
• A ReadyToProtect indicator that displays when the trip unit is operational and ready to
protect.
ATTENTION
The electronic trip unit must be powered in order for it to perform its protection functions. It is powered on condition that a minimum current
of 120 A on one phase or 80 A per phase passes through the circuit breaker.
Nevertheless, it is strongly recommended that a 24V DC SELV external power supply be connected (recommended product reference
Hager HTG911H) on the TU terminal to guarantee optimal operation of the trip unit and prevent malfunctions in the electrical installation
associated with a breach in the trip unit's continuity of operation.
