1-20 4. Status Bar
Timing of Displaying the Status Bar
• Upon pressing the [SYSTEM] switch
• When the status of communication with the connected device is changed (from normal to error)
*1
*1 When the communication status is changed while the backlight is off, the backlight is forcibly turned on.
Timing of Hiding the Status Bar
• Upon pressing the [Close] icon at the right end of the status bar
• 15 seconds after displaying the status bar
*1 *2
• Upon pressing the [SYSTEM] switch with the status bar displayed
*1
• Upon recovery of communication with all communication equipment
*1 When the status bar is set to “display at all times”, it will not disappear.
*2 It will not disappear when the detailed status information is displayed.
Prohibiting the Status Bar

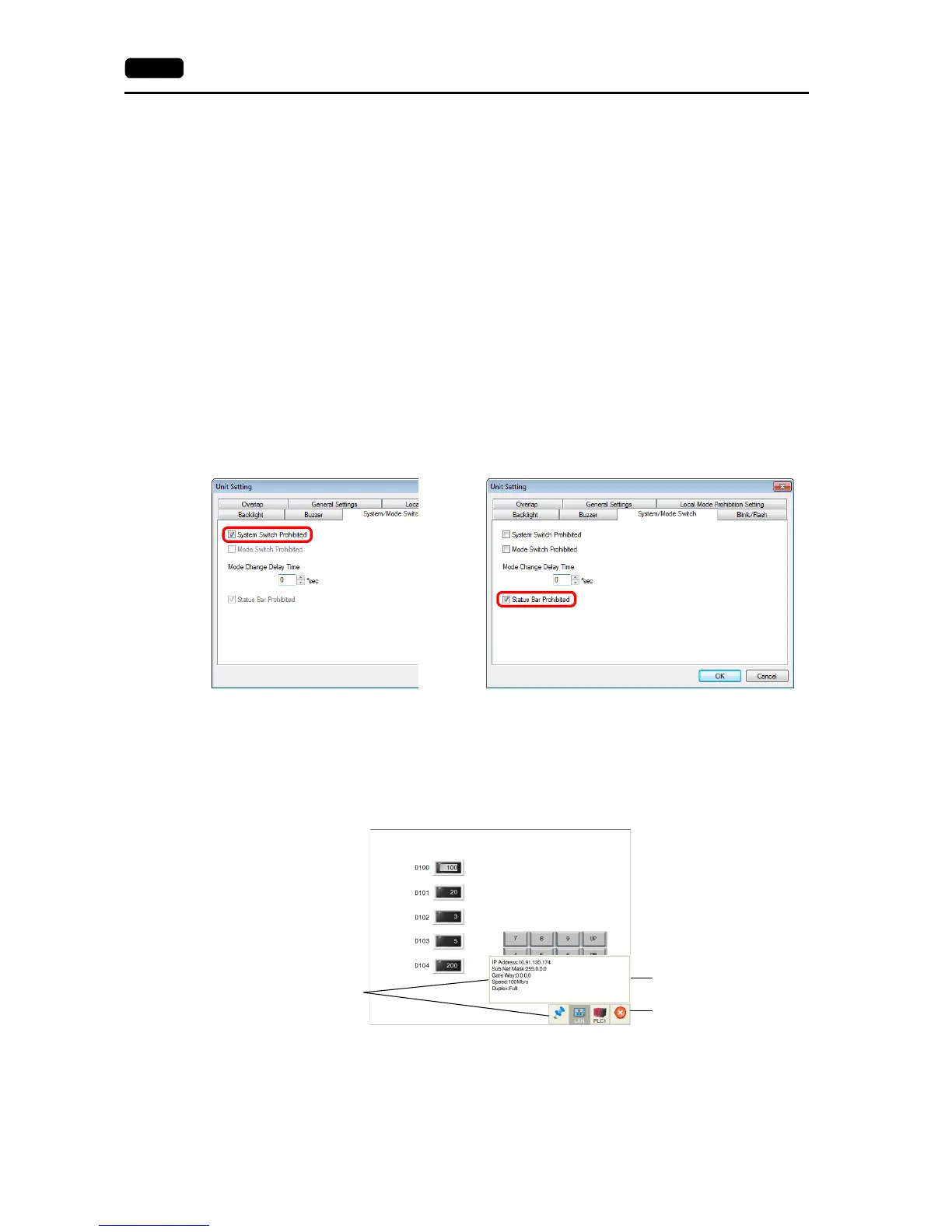

When the [System Switch Prohibited] or [Status Bar Prohibited] checkbox is selected in the [System
Setting] [Unit Setting] [System/Mode Switch] tab window, the status bar cannot be displayed.
* When the [System Switch Prohibited] or [Status Bar Prohibited] checkbox is selected, the status bar is not
displayed in RUN mode, but it is displayed in Local mode.
Notes
• Any switches that are hidden by the status bar and detailed status information are disabled while
the status bar is showing.
Detailed status information
Status bar
Switches behind the
status bar and status
information are disabled.
