2-6 2. Local Mode Screen
2-2. Screen Data Information

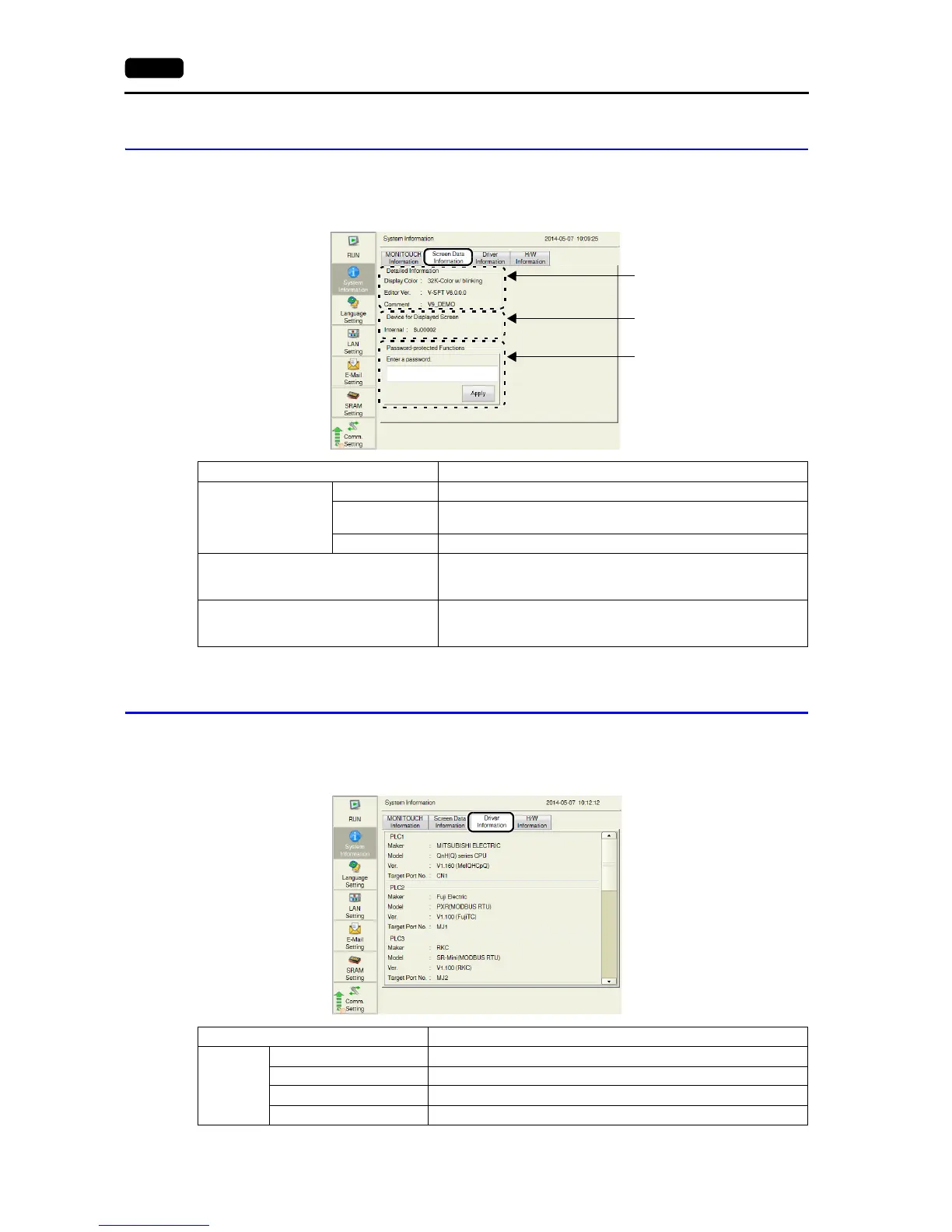

The [Screen Data Information] tab window on the System Information screen shows the screen
program information.
2-3. Driver Information
The [Driver Information] tab window on the System Information screen shows information of the
connected device.
[Screen Data Information] tab window
Detailed information
Password-protected settings
Screen displaying device
memory
Item Description
Detailed information
Display Color Indicates the display color specified in the screen program.
Editor Ver.
Indicates the version of the editor with which the screen program
was created.
Comment Indicates a file comment for the screen program.
Device for Displayed Screen
Indicates an address of the device memory that controls the screen
by external commands and stores data of the currently displayed
screen.
Password-protected Functions
Displayed when the Local-mode prohibition setting is used and a
password for cancelling all prohibition settings at once is set.
For details on the password-protected settings, refer to page 2-57.
Item Description
PLC1 - 8
Maker Indicates the maker of the connected device.
Model Indicates the model of the connected device.
Ver. (driver file name) Indicates the version of the communication I/F driver and its file name.
Target Port No. Indicates the specified connection port.
