Local Mode Screen
4-1. IP Setting
The [IP Setting] tab window on the LAN Setting screen allows you to set or change the IP address
setting of the V9 series unit.
*1 For details on the setting items, refer to page 2-14.
*2 Used for macro commands of EREAD, EWRITE, SEND and MES as well as Ethernet DLL functions.

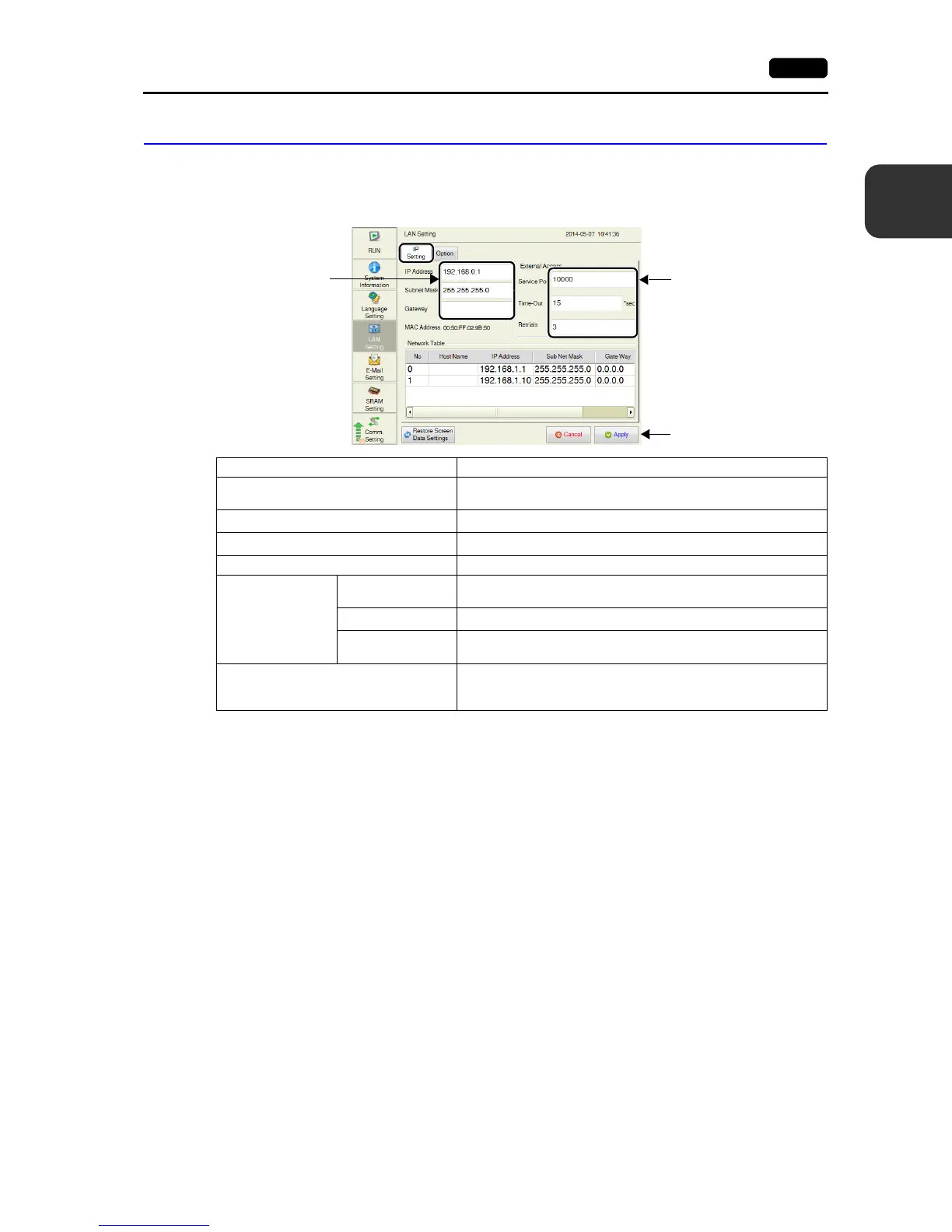

[IP Setting] tab window
After changing the setting,
press the [Apply] switch to
confirm the setting.
Pressing each setting field
brings up the system
keyboard to be used for
configuration.
Pressing each setting field
brings up the system
keyboard to be used for
configuration.
Item Description
IP Address
*1
Set the IP address for the V9 series unit.
(Default: 192.168.0.1)
Subnet Mask
*1
Set the subnet mask.
Gateway
*1
Set the default gateway.
MAC Address Indicates the MAC address of the V9 series unit.
External Access
Service Port
*1 *2
Set a port number of the V9 series unit (1024 to 65535).
(“8001” is not available.)
Time-Out
*2
Set the time-out time.
Retrials
0 to 255
Set the number of retrials to be performed when a time-out occurs.
Network Table
When a network table setting is set in the screen program, the
contents of the network table are displayed.
Tap an IP address to select from the network table.
