4. Status Bar 1-23
MONITOUCH Operations
PLC 8WAY Connection Status
This icon indicates the status of communication with the connected device when [Comm. Error
Handling: Disconnect] is selected.
When the [PLC 8WAY Connection Status] icon is pressed with no link established, the detailed
information can be viewed.
The information is updated every five seconds.
* If the [PLC 8WAY Connection Status] icon is pressed with a link established, nothing is displayed.
*1 For details on error messages, refer to “Error Messages” (page 3-11).

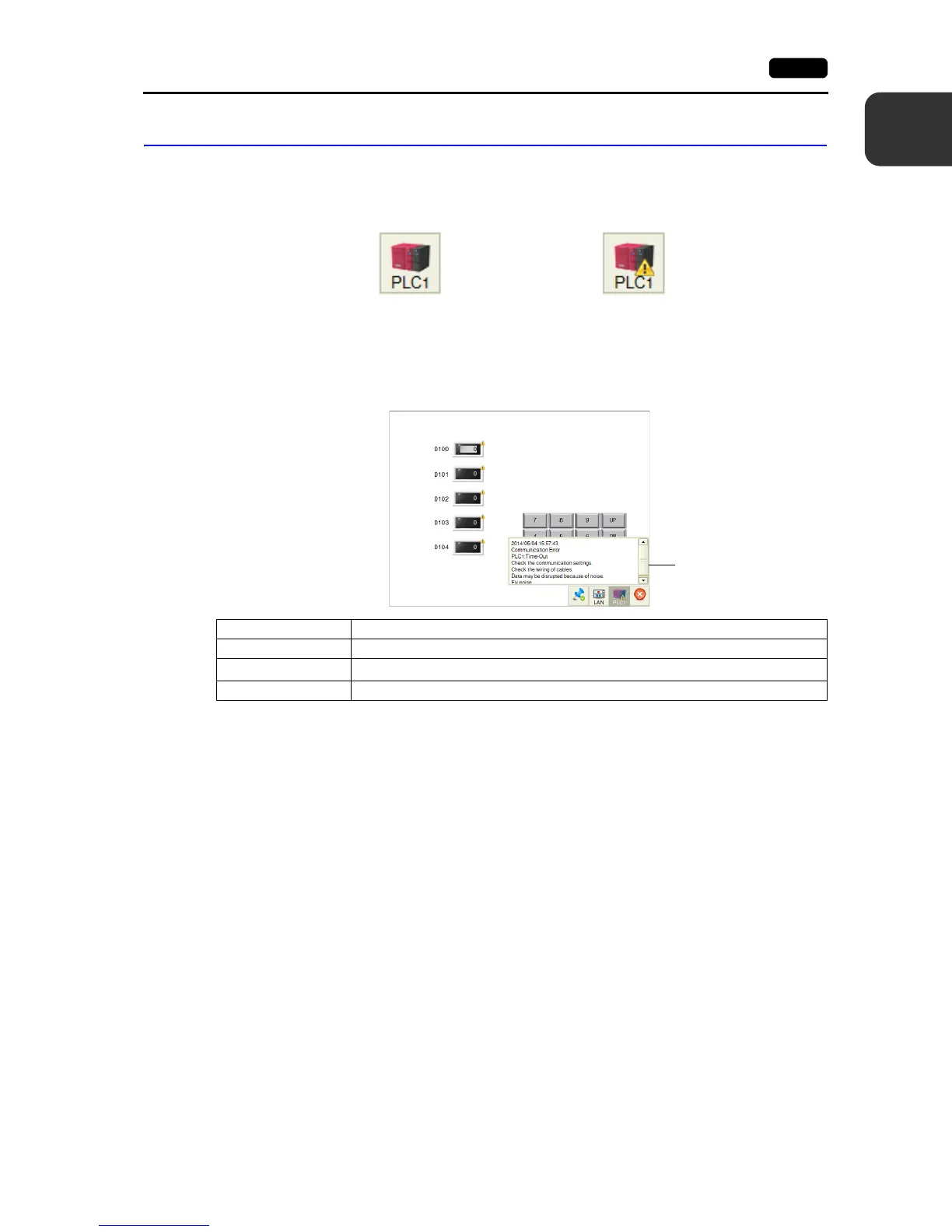

Link established Link not established
Detailed information
Item Description
Occurrence time Displays the time when the communication error occurred.
Error message
*1
Displays the contents of the communication error.
Measure Displays a countermeasure to the communication error.
