2-22 2. Local Mode Screen
7. Communication Setting

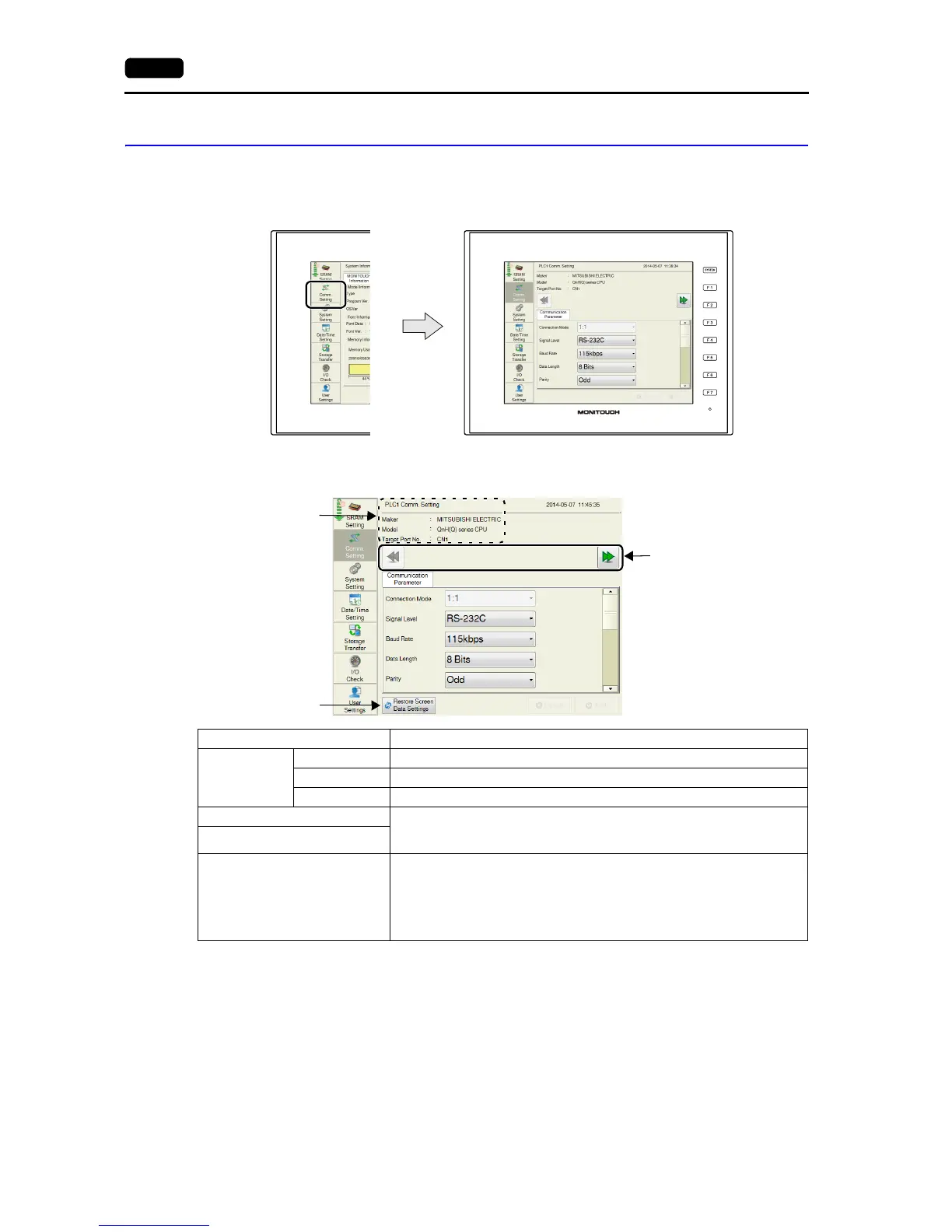

Pressing [Comm. Setting] in the menu icons brings up the Communication Setting screen.
This screen is used to view and configure communication parameters.
* The model and connection port cannot be changed on the V9 series unit.
Menu icons Communication Setting screen
Communication Setting screen
Changes over the display
between PLC1 to PLC8.
Indicates the maker, model,
and connection port of PLCx.
Press the [Restore Screen
Data Settings] switch to
return the settings to those
set in the screen program.
Item Description
PLC1 - PLC8
Communication
Setting
Maker Indicates the maker of the connected device.
Model Indicates the model of the connected device.
Target Port No. Indicates the specified connection port.
<< Changes over the display of the communication settings between PLC1 to
PLC8.
If only PLC1 is used, the display cannot be changed over.
>>
Restore Screen Data Settings
Restores communication settings that were changed on the V9 series unit to
those set in the screen program.
For details, refer to page 2-23.
* When settings are restored, the changes made on the unit are cancelled.
For details on data changed in Local mode, refer to page 2-55.
