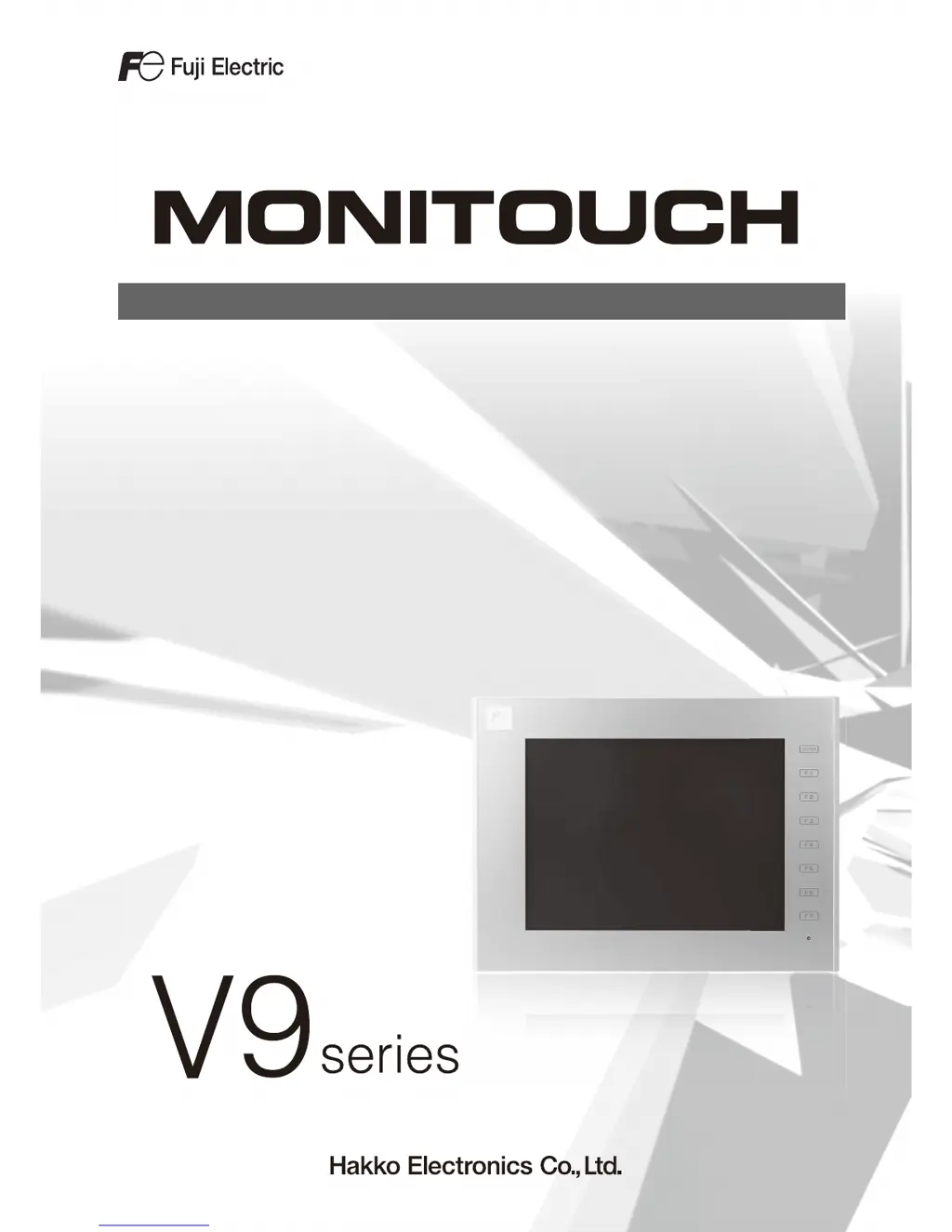

Hakko Electronics Monitouch V9 Series

Other manuals for Hakko Electronics Monitouch V9 Series

Troubleshooting Instructions Supplement112 pages

Technical Information16 pages

Questions and Answers

R
Rachael CarlsonAug 18, 2025
What to do if Hakko Electronics Monitouch V9 shows 'Communication Error: Time-Out'?
- R
  Richard ParkerAug 18, 2025
  If the Hakko Electronics Monitor displays a 'Communication Error: Time-Out' message, it indicates a communication failure with the controllers. This can be due to several reasons: * Incorrect or disconnected cables: Check all cable connections. * Incorrect parameter settings: Verify the controller's parameter settings match the V9-series settings. * Noise disruption: Ensure appropriate measures are in place to mitigate noise, such as isolating communication cables from power cables, using a ferrite core on the communication cable, or adding a noise filter to the power supply. * Faulty MONITOUCH: If the issue persists, the MONITOUCH unit may be faulty and should be returned to your local distributor.
V
Valerie HerreraAug 20, 2025
Why does my Hakko Electronics Monitouch V9 screen go dark or black?
- K
  kimberly29Aug 20, 2025
  A dark or black screen on your Hakko Electronics Monitor can be caused by a couple of things. If touching the screen restores it, the backlight is operating automatically as preset, consider changing the time to turn off the backlight using V-SFT version 6 or directly on the V9 series unit. If touching the screen does not restore it, but the POWER lamp is lit, the backlight may be at the end of its life, or the MONITOUCH unit may be faulty, consider returning it to your local distributor.
A
Allison SmithAug 23, 2025
How to fix Hakko Electronics Monitouch V9 Monitor switches that are not working?
- F
  Felicia GrimesAug 23, 2025
  If the switches on your Hakko Electronics Monitor aren't working, here's what you can check: * **Switch Interlock:** If the switches don't work in RUN mode and a beep sounds, the switch interlock might be enabled. Check the settings of switch functions using V-SFT version 6. * **Misaligned Activation:** If the touch switch test screen in Local mode activates a position different from where you press, the switch activation position may be misaligned. Perform a touch switch adjustment. * **Faulty Switches:** If the switches don't work even in Local mode and nothing activates on the touch switch test screen when pressed, the MONITOUCH switches may be faulty. Consider returning MONITOUCH to your local distributor.
J
jesus55Aug 26, 2025
What to do if the POWER LED on my Hakko Electronics Monitor doesn't light up or flashes?
- L
  Lori OrtizAug 26, 2025
  If the POWER LED on your Hakko Electronics Monitor doesn't light up or flashes, it could indicate a few things. First, verify that the correct voltage and current are being supplied to the V9 series unit. If the screen functions normally despite the LED issue, the POWER LED itself might be faulty, or the MONITOUCH unit is faulty. In the last two cases, consider returning MONITOUCH to your local distributor.
J
Jeffrey RojasAug 28, 2025
How to troubleshoot screen program transfer issues on a Hakko Electronics Monitor?
- J
  Jacob SchmidtAug 28, 2025
  If you're having trouble transferring the screen program to your Hakko Electronics Monitor, consider these steps: * **Serial Transfer Issues:** If serial transfer has never worked, decrease the baud rate by one level in the [Transfer] window on V-SFT version 6. Also, double-check that you've selected the correct COM port. * **Ethernet/USB Transfer Issues:** If only serial transfer is successful, there may be errors in the Ethernet or USB settings. For Ethernet, ensure the IP address set on V-SFT version 6 matches the one on the MONITOUCH. Also, check for any Ethernet connection errors on the MONITOUCH. For USB, verify that the USB driver is properly identified and the driver installation is complete.
K
Kevin GutierrezAug 30, 2025
Why does my Hakko Electronics Monitor show 'Communication Error: Error Code received' when opening a specific screen?
- R
  Robin WillisAug 30, 2025
  If your Hakko Electronics Monitor shows a 'Communication Error: Error Code received' only when opening a specific screen, it indicates a controller error (NAK). This is likely because a device memory address that doesn't exist on the controller is set on that particular screen in the V9-series. Check if any address outside the permissible range of the controller device memory is specified on the screen. If the error code appears at power-on, the device memory address that does not exist in the controller may be specified for an area commonly used by all screens, such as a control area ([System Setting] ? [Hardware Setting] ?), logging server, alarm server and initial macro specified in V-SFT version 6.
S
samantha27Sep 2, 2025
What to do if Hakko Electronics Monitouch V9 doesn't recognize the storage device?
- J
  Joseph HollowaySep 2, 2025
  If your Hakko Electronics V9 series unit isn't recognizing the storage device, here are a few things to check: * **Format Type:** The V9 series supports FAT or FAT32 format. Verify the storage device's format on your PC and reformat it to FAT or FAT32 if necessary. * **Error Code:** Check the value stored in system device memory $s497 (or $s1035 if using the USB-A port). A value other than “0” indicates an error. * **Faulty Device:** Test the storage device on your PC to ensure it's accessible. If not, try using a different storage device.
S
Stephanie WhiteSep 4, 2025
What causes 'Communication Error: Parity' or 'Communication Error: Framing' on a Hakko Electronics Monitouch V9 Monitor?
- B
  Brandon PriceSep 4, 2025
  A sudden 'Communication Error: Parity' or 'Communication Error: Framing' on your Hakko Electronics Monitor typically indicates noise interference. Check if appropriate measures are taken against noise. For example, ensure communication cables aren't bundled with power cables, try attaching a ferrite core to the communication cable, or add a noise filter to the power supply.
L
Larry PenningtonSep 9, 2025
What does 'Communication Error: Simulator: Time-Out' mean on my Hakko Electronics Monitouch V9?
- P
  paulwrightSep 9, 2025
  The error message “Communication Error: Simulator: Time-Out” on your Hakko Electronics Monitor indicates that simulator communications between V9 and PC is not successful. To resolve this: * For communication with a PLC, select [Not use] on the Simulator Setting screen in Local mode. Or deselect the [Use Simulator] checkbox on the [Transfer] window of V-SFT version 6, and transfer the screen program again. * For communication with simulator, select the [Use Simulator] checkbox on the Simulator Setting screen in Local mode. Or select [Transfer] ? [Simulate] in V-SFT version 6 to start the simulator.
A
Amy JohnsonSep 12, 2025
Why does my Hakko Electronics Monitor display 'Insert Storage in V9'?
- C
  Catherine AcostaSep 12, 2025
  The message “Insert Storage in V9” on your Hakko Electronics Monitor indicates that no storage device is inserted in the V9 series unit, although a setting is enabled to automatically upload a screen program from the storage device when the power to the V9 series unit is turned on. * When enabling auto-upload, check that the storage device is correctly inserted and that the data files to be uploaded automatically are stored in the storage device. * When disabling auto-upload, turn the power to the V9 series unit off and set the DIP switch 1 (on the back of the unit) to the off position.

Summary

Overview

Connection Methods

Explains various connection methods supported by the V9 series, such as serial, Ethernet, and network.

Hardware Settings

Configuration settings for hardware components and devices connected to the V9 series.

ALLEN BRADLEY

Automationdirect

Azbil

CIMON

DELTA

DELTA TAU DATA SYSTEMS

EATON Cutler-Hammer

EMERSON

FANUC

Fatek Automation

FUFENG

15.1.1 APC Series Controller

Covers communication settings for FUFENG APC Series Controllers, including COM1 and COM2.

15.1.2 Wiring Diagrams

Illustrates wiring diagrams for connecting FUFENG PLCs via CN1 and MJ1/MJ2 ports.

Fuji Electric

Temperature Controller;Servo;Inverter Connection

Details connecting Fuji Electric temperature controllers, servo drives, and inverters.

16.1.1 MICREX-F Series

16.1.3 SPB (N Mode) & FLEX-PC Series

16.1.4 MICREX-SX SPH;SPB Series (IEC Mode)

16.1.5 MICREX-SX SPH;SPB CPU (N Mode; F Mode)

16.1.6 MICREX-SX SPH;SPB CPU (IEC Mode)

16.1.7 MICREX-SX SPH;SPB CPU (N Mode; F Mode)

16.1.8 MICREX-SX (Ethernet) (IEC Mode)

16.1.10 Wiring Diagrams

16.2 Temperature Controller;Servo;Inverter Connection

16.2.1 PYX (MODBUS RTU)

16.2.2 PXR (MODBUS RTU)

16.2.3 PXG (MODBUS RTU)

16.2.4 PXH (MODBUS RTU)

16.2.5 PUM (MODBUS RTU)

16.2.6 F-MPC04 P (Loader)

16.2.7 F-MPC Series; FePSU

16.2.8 FVR-E11 S (MODBUS RTU)

16.2.9 FVR-C11 S (MODBUS RTU)

16.2.11 FRENIC5000 G11 S; P11 S

16.2.13 FRENIC5000 VG7 S (MODBUS RTU)

16.2.14 FRENIC-Mini (MODBUS RTU)

16.2.15 FRENIC-Eco (MODBUS RTU)

16.2.16 FRENIC-Multi (MODBUS RTU)

16.2.17 FRENIC-MEGA (MODBUS RTU)

16.2.18 FRENIC-MEGA SERVO (MODBUS RTU)

16.2.19 FRENIC-HVAC;AQUA (MODBUS RTU)

16.2.20 HFR-C9 K

16.2.21 HFR-C11 K

16.2.22 PPMC (MODBUS RTU)

16.2.23 FALDIC- Series

16.2.24 FALDIC-W Series

16.2.25 PH Series

16.2.26 PHR (MODBUS RTU)

16.2.27 WA5000

16.2.28 APR-N (MODBUS RTU)

16.2.29 ALPHA5 (MODBUS RTU)

16.2.30 ALPHA5 Smart (MODBUS RTU)

16.2.31 WE1 MA (Ver. A) (MODBUS RTU)

16.2.32 WE1 MA (Ver. B) (MODBUS RTU)

16.2.33 WSZ Series

16.2.34 Wiring Diagrams

Gammaflux

Temperature Controller; Servo; Inverter Connection

Details connecting Gammaflux temperature controllers, servo drives, and inverters.

17.1.1 TTC2100

Explains communication settings for Gammaflux TTC2100.

17.1.2 Wiring Diagrams

Illustrates wiring diagrams for connecting Gammaflux devices via CN1 and MJ1/MJ2 ports.

GE Fanuc

Ethernet Connection

Information on Ethernet connections for GE Fanuc PLCs, including specific series.

18.1.1 90 Series

18.1.2 90 Series (SNP-X)

18.1.3 90 Series (SNP)

18.1.4 90 Series (Ethernet TCP;IP)

18.1.5 RX3 i (Ethernet TCP;IP)

18.1.6 Wiring Diagrams

Hitachi

19.1.1 HIDIC-S10;2, S10 mini

Details communication settings for Hitachi HIDIC-S10/2α and S10mini PLCs.

19.1.2 HIDIC-S10;4

Explains communication settings for Hitachi HIDIC-S10/4α PLCs.

19.1.3 HIDIC-S10 V

Provides communication settings for Hitachi HIDIC-S10V PLCs, including module and system settings.

19.1.4 HIDIC-EHV (Ethernet)

Details communication settings for Hitachi HIDIC-EHV Ethernet devices, including IP address and task code setup.

19.1.5 HIDIC-S10 V (Ethernet)

Explains communication settings for Hitachi HIDIC-S10V Ethernet devices, including IP address and subnet mask.

19.1.6 Wiring Diagrams

Illustrates wiring diagrams for connecting Hitachi PLC models via CN1 and MJ1/MJ2 ports.

Hitachi Industrial Equipment Systems

PLC Connection

Covers connecting Hitachi Industrial Equipment Systems PLCs, detailing serial connection types.

20.1.1 HIDIC-H

Details communication settings for Hitachi HIDIC-H, including mode and DIP switch settings.

20.1.2 HIDIC-H (Ethernet)

Explains communication settings for Hitachi HIDIC-H Ethernet devices, including IP address and system configurations.

20.1.3 HIDIC-EHV

Provides communication settings for Hitachi HIDIC-EHV, including CPU communication setup.

20.1.4 HIDIC-EHV (Ethernet)

Details communication settings for Hitachi HIDIC-EHV Ethernet devices, including IP address and Ethernet protocol.

20.1.5 Wiring Diagrams

Illustrates wiring diagrams for connecting Hitachi Industrial Equipment Systems PLCs via CN1 and MJ1/MJ2 ports.

20.2 Temperature Controller;Servo;Inverter Connection

Covers connecting Hitachi Industrial Equipment Systems temperature controllers, servo drives, and inverters.

16.2.1 SJ300 Series

Details communication settings for Hitachi SJ300 Series inverters, including parameter settings.

16.2.2 SJ700 Series

Explains communication settings for Hitachi SJ700 Series inverters, including parameter settings.
