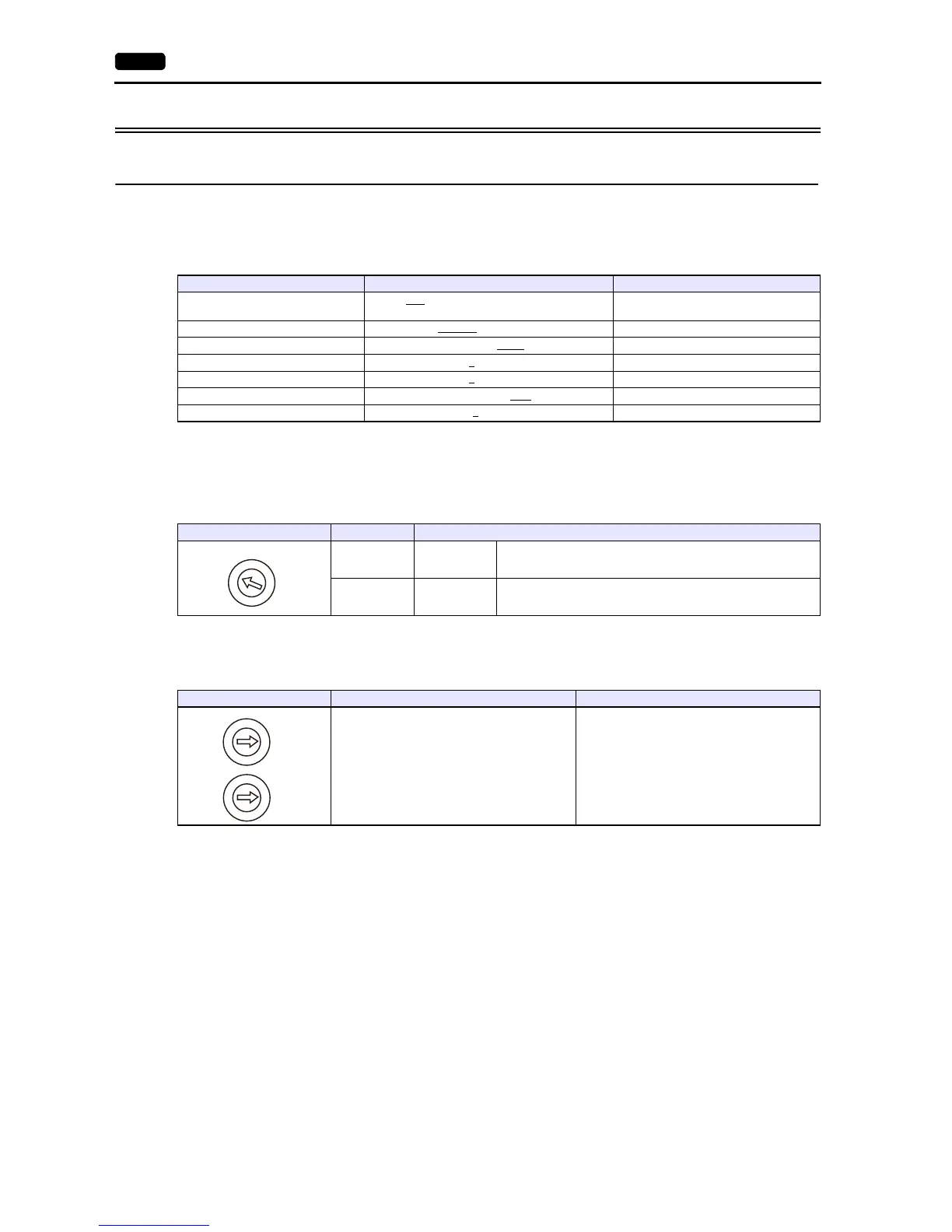

16-4 16. Fuji Electric
16.1.1 MICREX-F Series
Communication Setting
Editor
Communication setting
(Underlined setting: default)
PLC
Be sure to match the settings to those made under [Communication Setting] of the editor.
Mode setting
* The mode setting switch is common to NV1L-RS2, NC1L-RS2, NC1L-RS4, FFU120B and FFK120A.
Station number setting
* The station number setting switch is common to NC1L-RS4, FFU120B and FFK120A.
It is not provided on NV1L-RS2 nor NC1L-RS2.
Item Setting Remarks
Connection Mode
1:1
/ 1:n / Multi-link / Multi-link2 /
Multi-link2 (Ethernet) / 1:n Multi-link2 (Ethernet)
Signal Level RS-232C
/ RS-422/485
Baud Rate 4800 / 9600 / 19200
bps
Data Length 7
/ 8 bits
Stop Bit 1
/ 2 bits
Parity None / Odd / Even
Targe t Por t N o. 0 to 31
MODE Setting Contents
1 RS-232C Command-defined asynchronous communication (non-procedure)
3 RS-485 Command-defined asynchronous communication (non-procedure)
ADDRESS Setting Contents
0 to 31
Station number
10: the tens place
1: the ones place
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
MODE
0
1
23
4
5
6
78
9
×10
×1
0
1
23
4
5
6
78
9
