16.1 PLC Connection 16-5

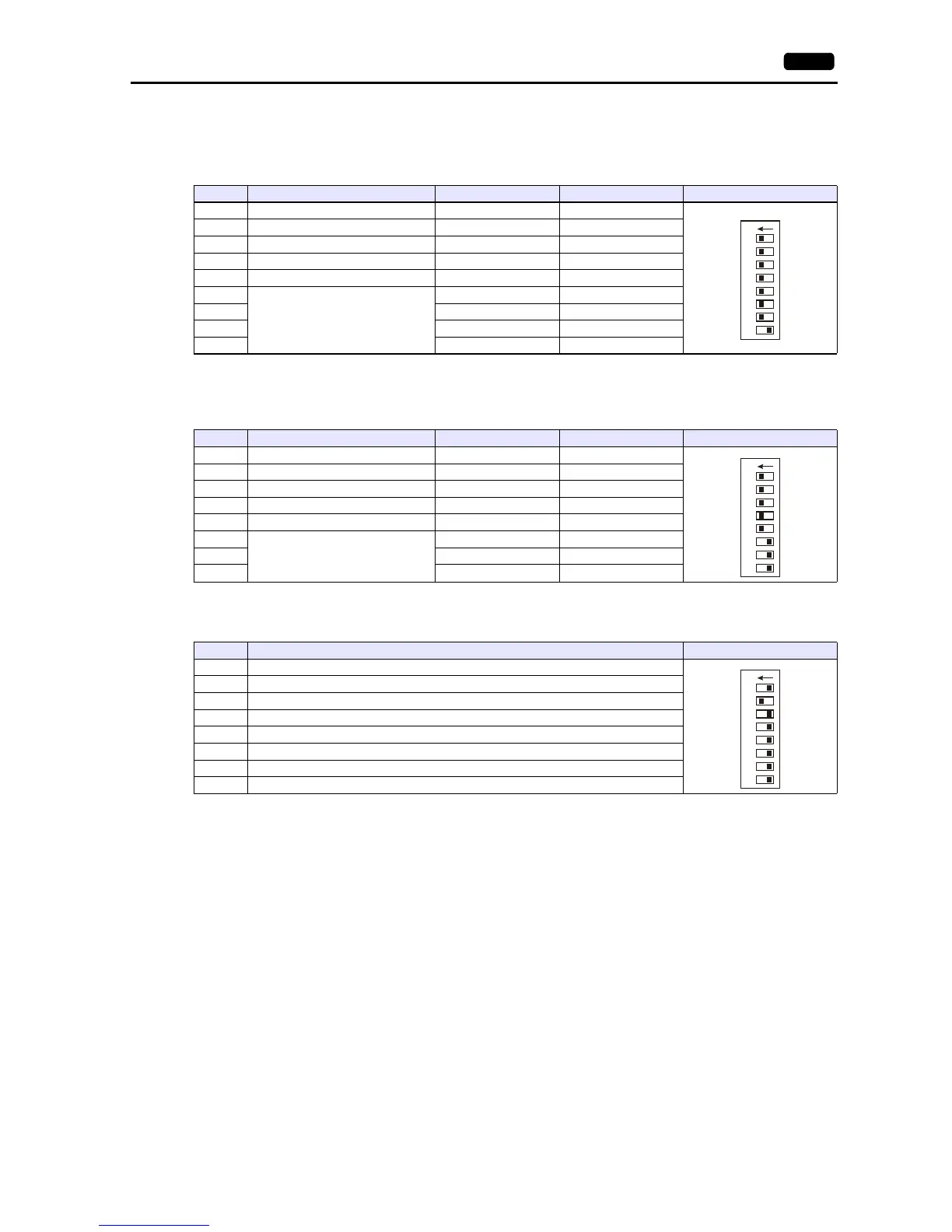

Transmission setting
NV1L-RS2, NC1L-RS2, NC1L-RS4, FFU120B
FFK120A
 Character switches
 Baud rate setting switches
Set a switch to the ON position.
Switch Contents ON OFF E.g.) Editor Default Setting
8 Initializing method Switch Initial file
7 Parity Provided Not provided
6Parity bit Even Odd
5 Data bit length 7 bits 8 bits
4 Stop bit length 1 bit 2 bits
Baud rate
19200 9600
3ONON
2ONOFF
1OFFON
87654321
ON
Switch Contents ON OFF E.g.) Editor Default Setting
8 Initializing method Switch Initial file
7 Parity Provided Not provided
6Parity bit Even Odd
5 Data bit length 7 bits 8 bits
4 Stop bit length 2 bits 1 bit
3
Not used
-OFF
2-OFF
1-OFF
Switch Contents Example: 19,200 bps
8Not used
7 19,200 bps
69,600 bps
54,800 bps
42,400 bps
31,200 bps
2 600 bps
1 300 bps
87654321
ON
87654321
ON
