2-14 2. ALLEN BRADLEY

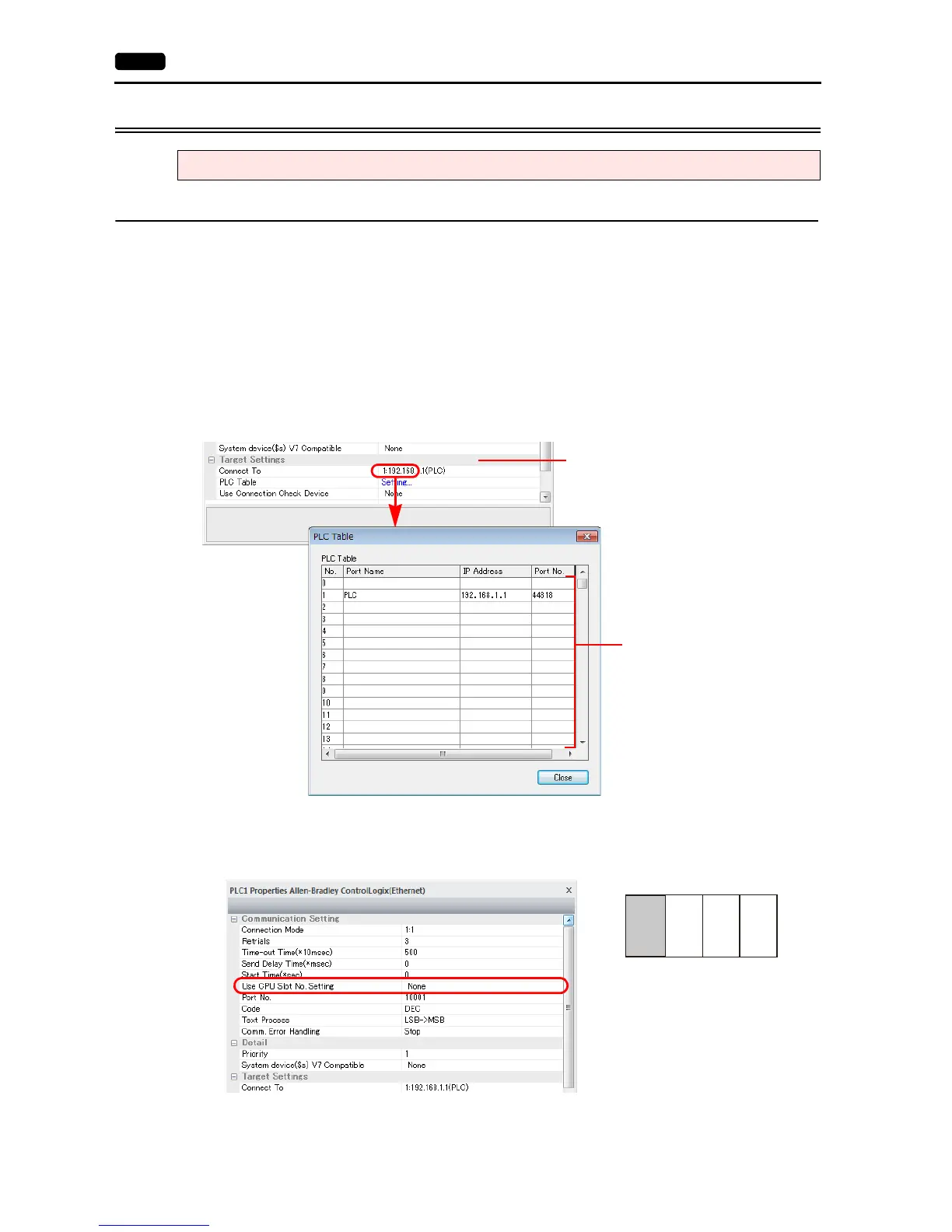

2.1.4 Control Logix (Ethernet)
Communication Setting
Editor
Make the following settings on the editor. For more information, see “1.3.2 Ethernet Communication”.
 IP address for the V9 unit
- When specified on the screen program:
[System Setting]  [Hardware Setting]  [Local Port IP Address]
- When specified on the V9 unit:
Local mode  [LAN Setting]
 Port number for the V9 unit (for communication with PLC)
[System Setting]  [Hardware Setting]  [PLC Properties]  [Communication Setting]
 IP address and port number (No. 44818) of the PLC
Register on the [PLC Table] in [System Setting]  [Hardware Setting]  [PLC Properties]  [Target Settings].
 Others
[System Setting]  [Hardware Setting]  [PLC Properties]  [Communication Setting]  [Use CPU Slot No. Setting]
-[None] (default)
The CPU slot No. is fixed to “0”.
The logical port PLC1 can only be selected because the tag table is used.
Valid only for 1 : 1 connection
IP address and port number (No. 44818)
of the PLC
CPU Ethernet
Slot
No.0
Slot
No.1
Slot
No.2
Slot
No.3
