1.4 Hardware Settings

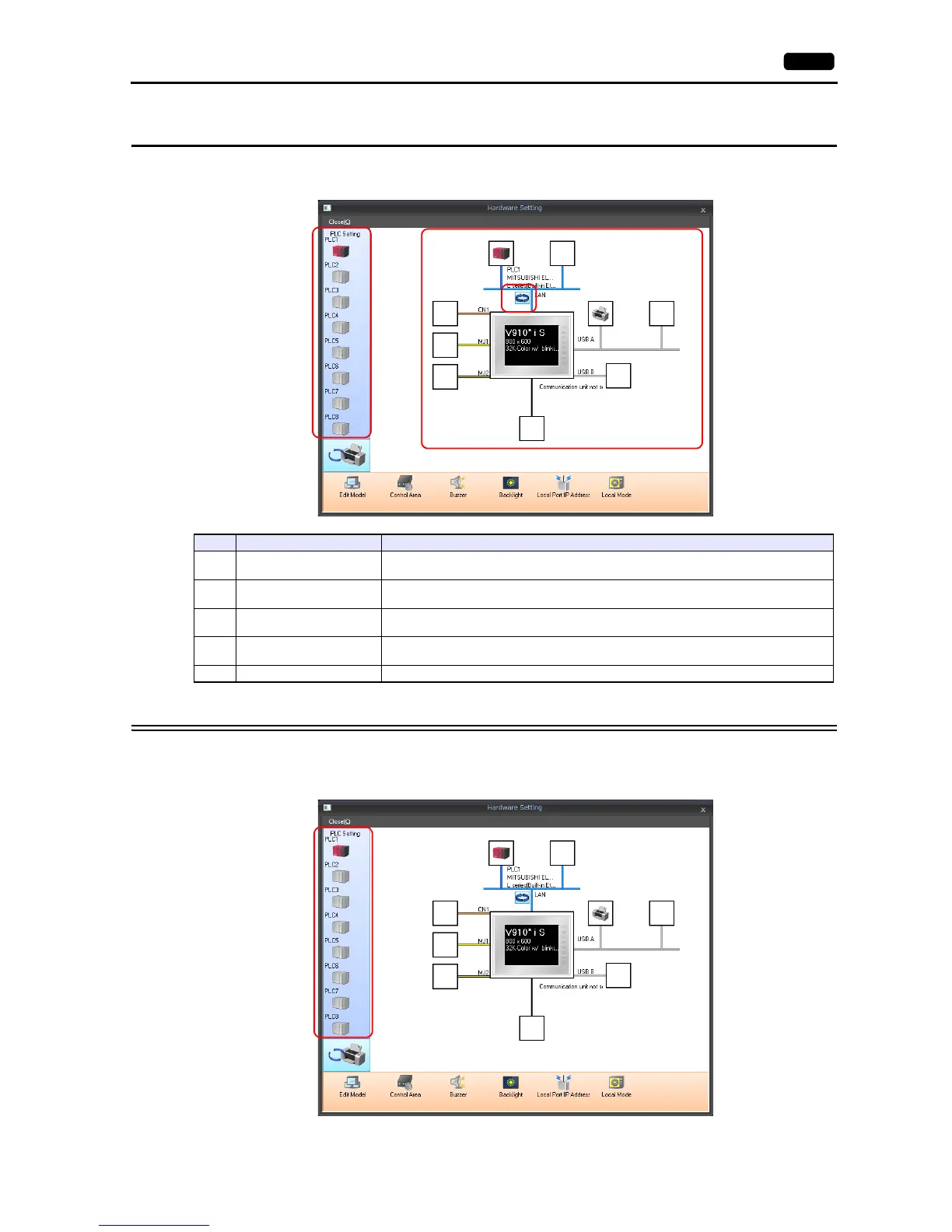

Select and set the devices to connect to the V9 series on the Hardware Setting screen.
1.4.1 PLC Settings
To enable communication with a PLC, a temperature controller, an inverter, etc., the following settings are required to be set
on the editor. You can see the contents of these settings in the V9 Local mode.
For information on Local mode, refer to the V9 Series Troubleshooting/Maintenance Manual.
Item Contents
1. PLC Setting
Set the devices (PLC, temperature controller, servo, inverter, barcode reader etc.) to connect to
PLC1 to PLC8.
2. Connection Diagram
The devices which are set for connection are displayed.
Devices as well as communication settings can be changed.
3.
Built-in LAN /
Ethernet unit switch
Select the Ethernet connection port on the V9 series from the internal LAN communication unit.
The icon changes each time it is clicked.
4.
PLC Setting /
Other Setting switch
Switch between PLC settings and other settings.
The icon changes each time it is clicked.
5. MONITOUCH Settings Make MONITOUCH settings on the V9 series.
1.
2.
4.
5.
3.
