1-46 1. Overview
*1 Be sure to match the settings to those made on the connected device.

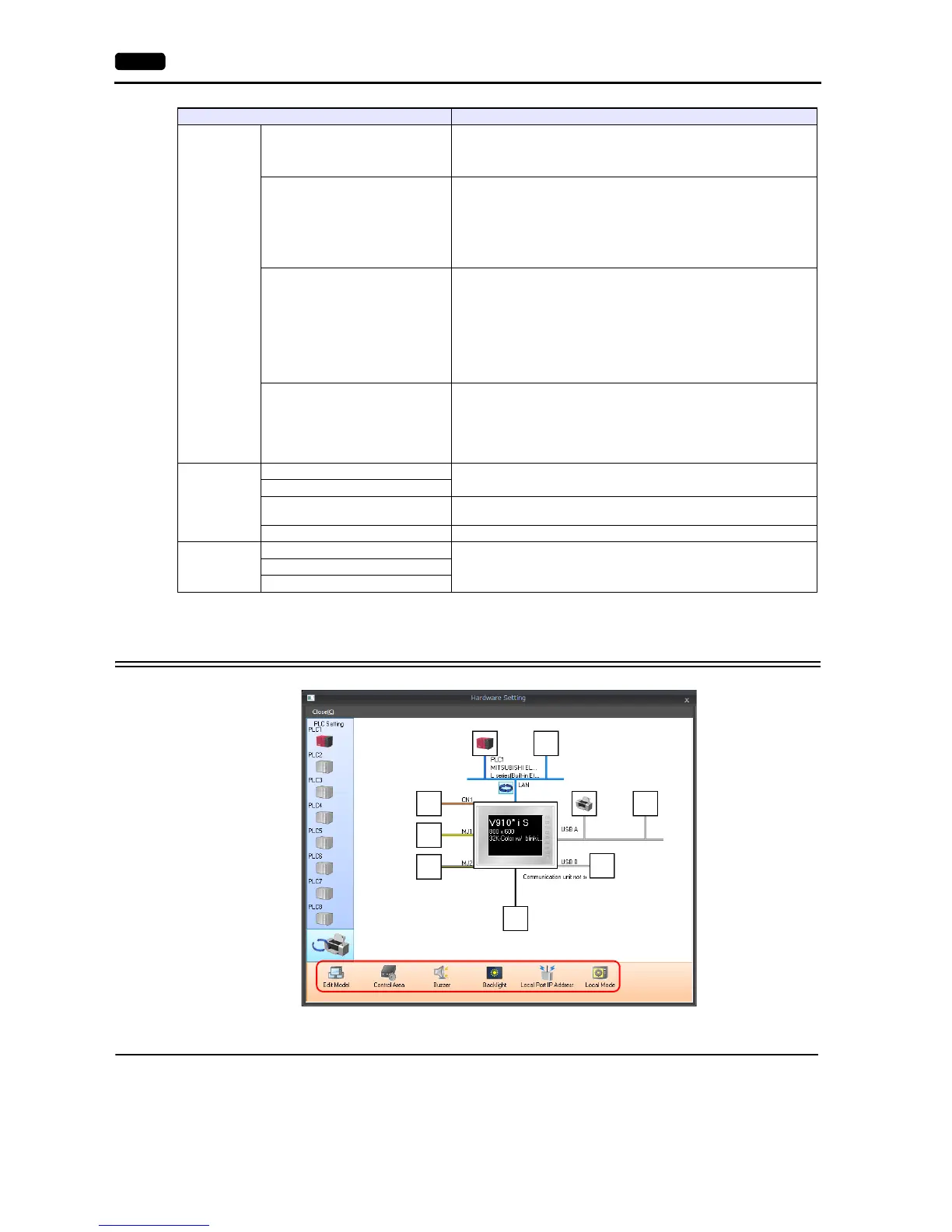

1.4.2 MONITOUCH Settings
Select Edit Model
Set the model of the V series to edit.
For more information, refer to the V9 Series Reference Manual.
Detail
Priority
[1] (higher priority) - [8] (lower priority)
Specify the priority taken during 8-way communication. If interrupts from two
or more devices occur at the same time, communication with these devices will
take place in order of priority.
System device ($s) V7 Compatible
(PLC1)
This is set to [Yes] if the V7-series screen program (including temperature
control network/PLC2Way settings) has been converted to data for the V9
series.
System information relevant to 8-way communication will be stored in device
memory addresses $P1 and $s.
* For more information, see “1.5.1 $Pn (For 8-way Communication)” (page
1-55).
System device ($s) V7 Compatible
(PLC2)
This is set to [Yes] if the V7-series screen program (including temperature
control network/PLC2Way settings) has been converted to data for the V9
series.
 [None]
$P2:493/494/495 is used as the transfer table control device memory.
 [Yes]
$s762/763/764 is used as the transfer table control device memory.
* For more information, see “1.5.1 $Pn (For 8-way Communication)” (page
1-55).
Device Memory Map Control Device
Specify the device memory for controlling device memory maps of PLC1 -
PLC8.
The device memory specified here is the same as [Control Device] in [Device
Memory Map Setting] ([System Setting]  [Device Memory Map]  [Device
Memory Map Edit] window  [Device Memory Map Setting]).
* For more information, refer to the V9 Series Reference Manual.
Target S ettings
Connect To
Set this for Ethernet communication. For more information, see “1.3.2 Ethernet
Communication” (page 1-36).
PLC Table
Use Connection Check Device
Select [Yes] for connection confirmation using a desired device memory
address at the start of communication.
Connection Check Device Specify a desired device memory address used for connection confirmation.
Ladder Transfer
Port
Use Ladder Tool
This setting is used when using the ladder transfer tool.
* For more information, refer to the V9 Series Reference Manual.
Connection target
Ladder Communication in Local Mode
Item Contents
