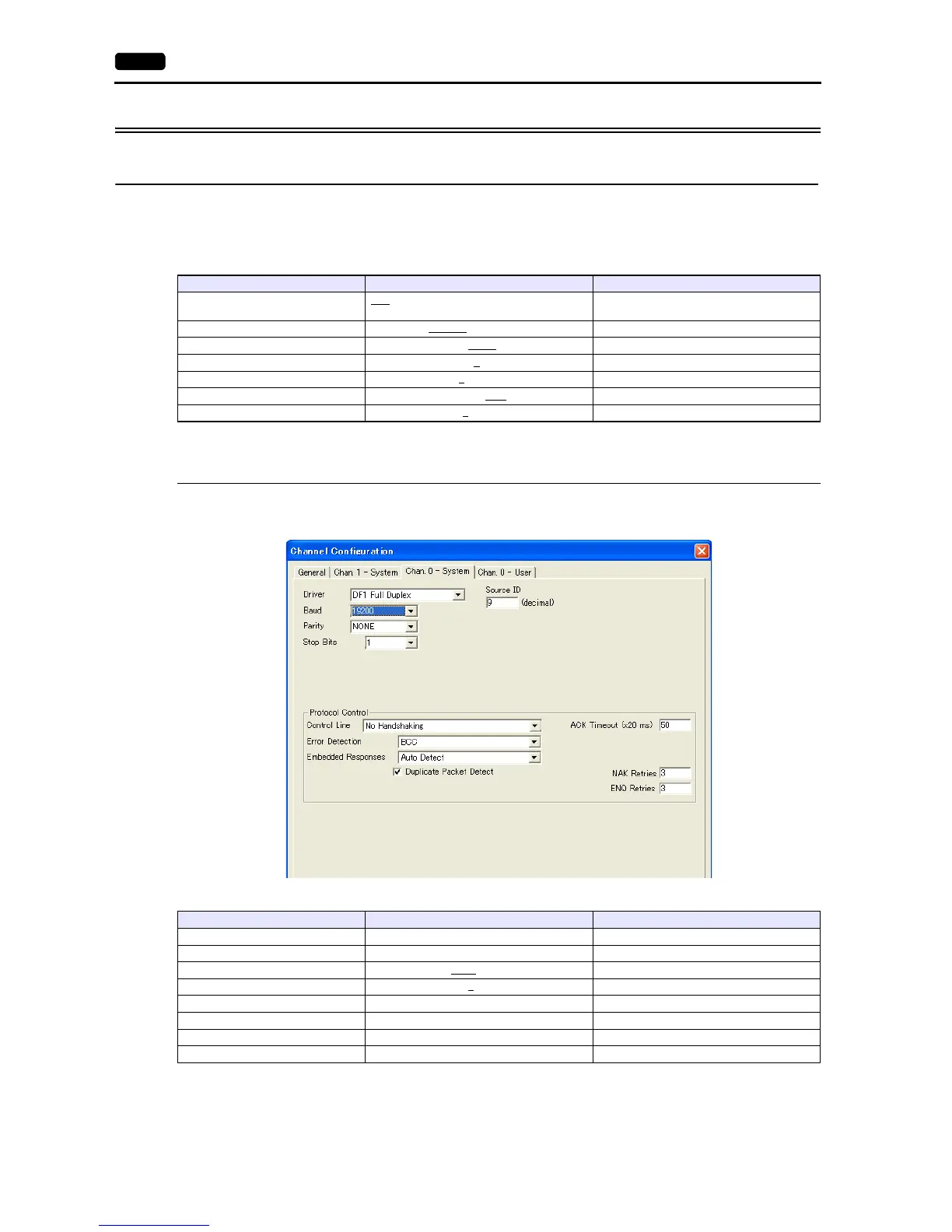

2-16 2. ALLEN BRADLEY
2.1.5 SLC500
Communication Setting
Editor
Communication setting
(Underlined setting: default)
PLC
Channel 0
Channel configuration (chan. 0 - system)
(Underlined setting: default)
Item Setting Remarks
Connection Mode
1:1
/ 1:n / Multi-link2 / Multi-link2 (Ethernet) /
1:n Multi-link2 (Ethernet)
Signal Level RS-232C
/ RS-422/485
Baud Rate 4800 / 9600 / 19200
/ 38400 bps
Data Length 7 / 8
bits
Stop Bit 1
/ 2 bits
Parity None / Even
Targe t Por t N o. 0 to 31
Item Setting Remarks
Driver DF1 Full Duplex
Baud 9600 / 19200 / 38400
Parity None
/ Even
Stop Bits 1
/ 2
Control Line No Handshaking
Error Detection BCC
Embedded Responses Auto Detect
Duplicate Packet Detect Checked
