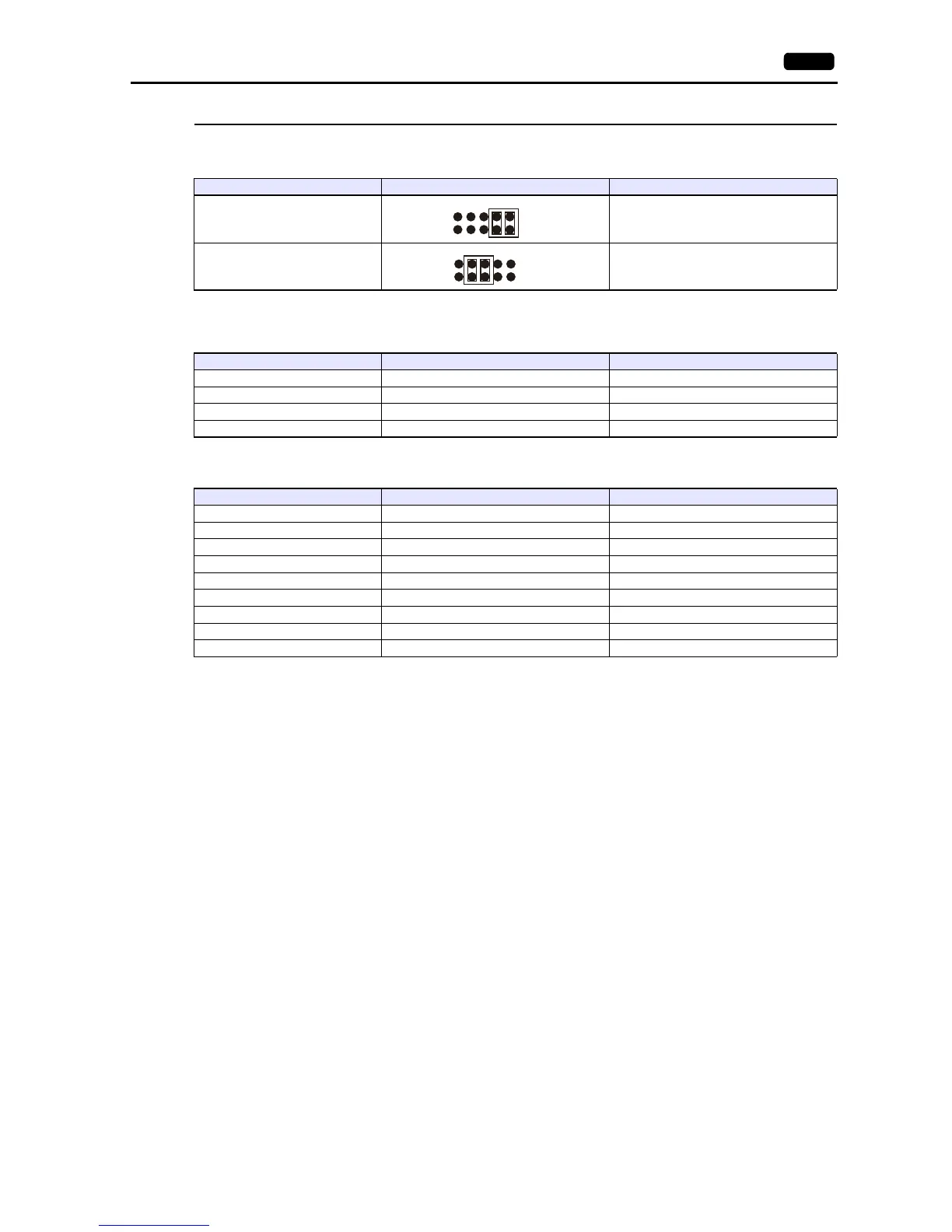

2.1 PLC Connection 2-17
1747-KE
Jumper JW2
DF1 port setup menu
DF1 full-duplex setup menu
Item Setting Remarks
RS-232
RS-422
Item Setting Remarks
Baudrate 19200
Bits Per Character 8
Parity Even
Stop Bits 1
Item Setting Remarks
Duplicate Packet Detection Enabled
Checksum BCC
Constant Carrier Detect Disabled
Message Timeout 400
Hardware Handshaking Disabled
Embedded Response Detect Auto Detect
ACK Timeout (5 ms) 90
ENQuiry Retries 3
NAK Received Retries 3
