1-44 1. Overview
Selecting a Device to be Connected

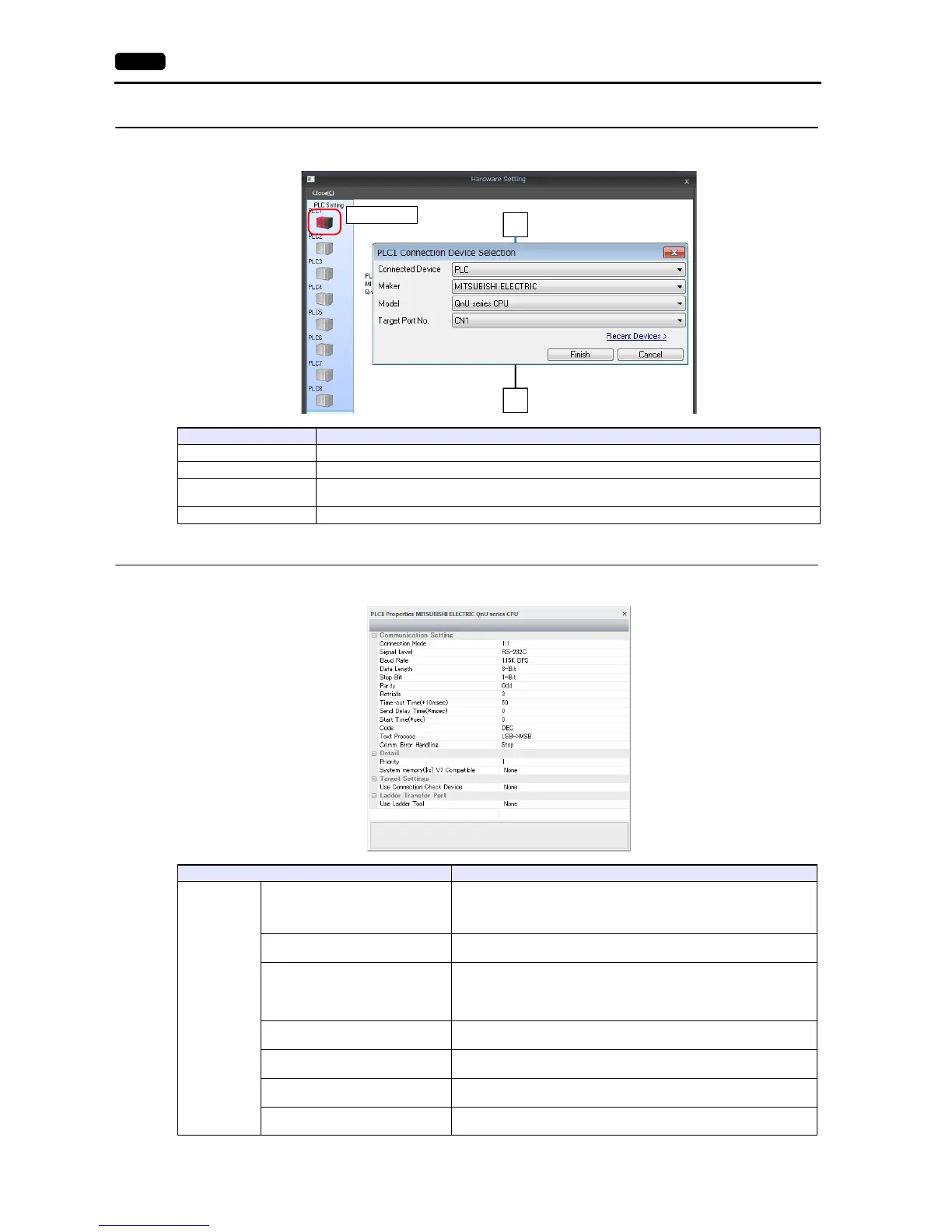

Double-click on a PLC icon in the [Hardware Setting] window to display the window shown below.
PLC Properties
Click on the PLC icon in [Hardware Setting] to display the window shown below.
Item Contents
Connected Device Select the device to connect.
Maker Select the maker of the device.
Model
Select the model of the device to connect. Refer to the respective chapter of each maker and select the
appropriate model.
Target Port No. Select the port to which the device connects to on the V9 series.
Item Contents
Communication
Setting
Connection Mode
Select a connection mode.
1:1 / 1:n / Multi-link / Multi-link2 (Ethernet) / 1:n Multi-link2 (Ethernet)
Available options vary, depending on which device is connected. For details,
see Connection Compatibility List provided at the end of this manual.
Signal Level
*1
Select a signal level.
RS-232C/RS-422/485
Baud Rate
*1
Select a baud rate.
4800/9600/19200/38400/57600/76800/115K/187.5K
*
bps
* Available only when connecting via Siemens S7-200PPI or S7-300/400MPI
and CN1.
Data Length
*1
Select a data length.
7 / 8 bits
Stop Bit
*1
Select a stop bit.
1 / 2 bits
Parity
*1
Select an option for parity bit.
None / Odd / Even
Targe t Por t No.
*1
Specify a port number of the connected device.
0 to 31 (Modbus RTU: 1 to 255)
