Hakko Electronics Monitouch V9 Series User Manual

1.2 Physical Ports 1-7
1.2.5 USB
USB Port Specifications
Applicable Devices

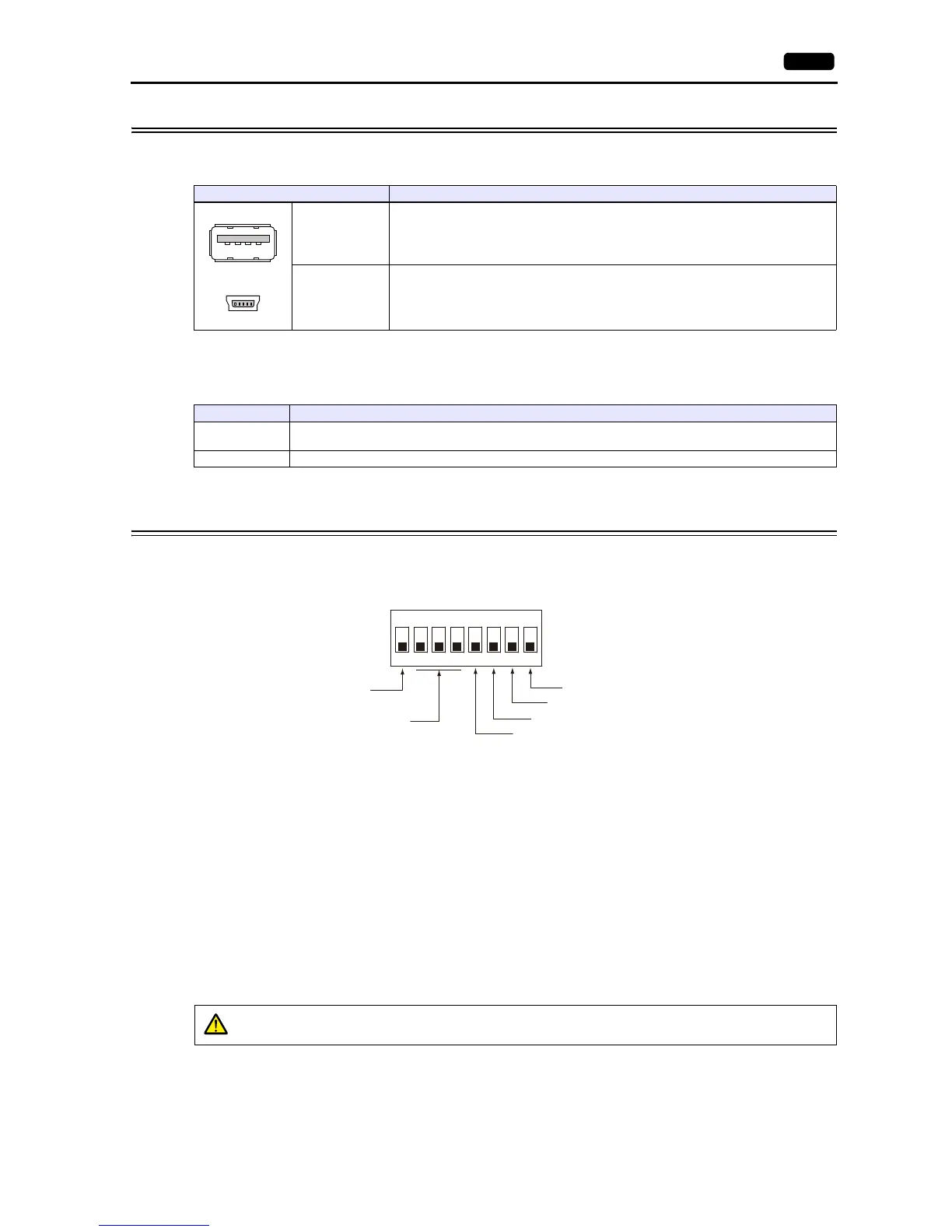

1.2.6 DIP Switch (DIPSW) Settings
The V9 series is equipped with DIP switches 1 to 8. When setting the DIP switch, turn the power off.
DIPSW1* (Automatic upload to storage)
Set the DIPSW1 to ON when automatically uploading screen programs from storage such as an SD card or USB flash drive.
For details, refer to the separate V9 Series Hardware Specifications manual.
* Be sure to set the DIPSW1 to OFF when automatic upload is not performed.
DIPSW5, 6, 7, 8 (Terminating resistance setting)
 When connecting a controller to CN1 via RS-422/485 (2-wire connection), set the DIPSW7 to ON.
 When connecting a controller to CN1 via RS-422/485 (4-wire connection), set the DIPSW5 and DIPSW7 to ON.
 When connecting a controller at MJ1 via RS-422/485 (2-wire connection), set the DIPSW6 to ON.
 When connecting a controller at MJ2 via RS-422/485 (2-wire connection), set the DIPSW8 to ON.
Item Specifications
USB-A
USB mini-B
Applicable
standards
USB versions 2.0
Baud Rate High-speed 480 Mbps
Port Applicable Devices
USB-A
Printer (EPSON ESC/P-R compatible), barcode reader, USB flash drive, USB-CFREC-2 (under development), numeric
keypad, keyboard, mouse, USB hub
USB mini-B Printer (PictBridge), computer (screen program transfer)
ON
12345678
+RD/-RD terminating resistance of CN1
Terminating resistance of MJ1
Terminating resistance of MJ2
+SD/-SD terminating resistance of CN1
Not used
Automatic upload to storage
Factory settings
CAUTION
When executing communication via RS-232C at CN1, set the DIP switches 5 and 7 to OFF.
