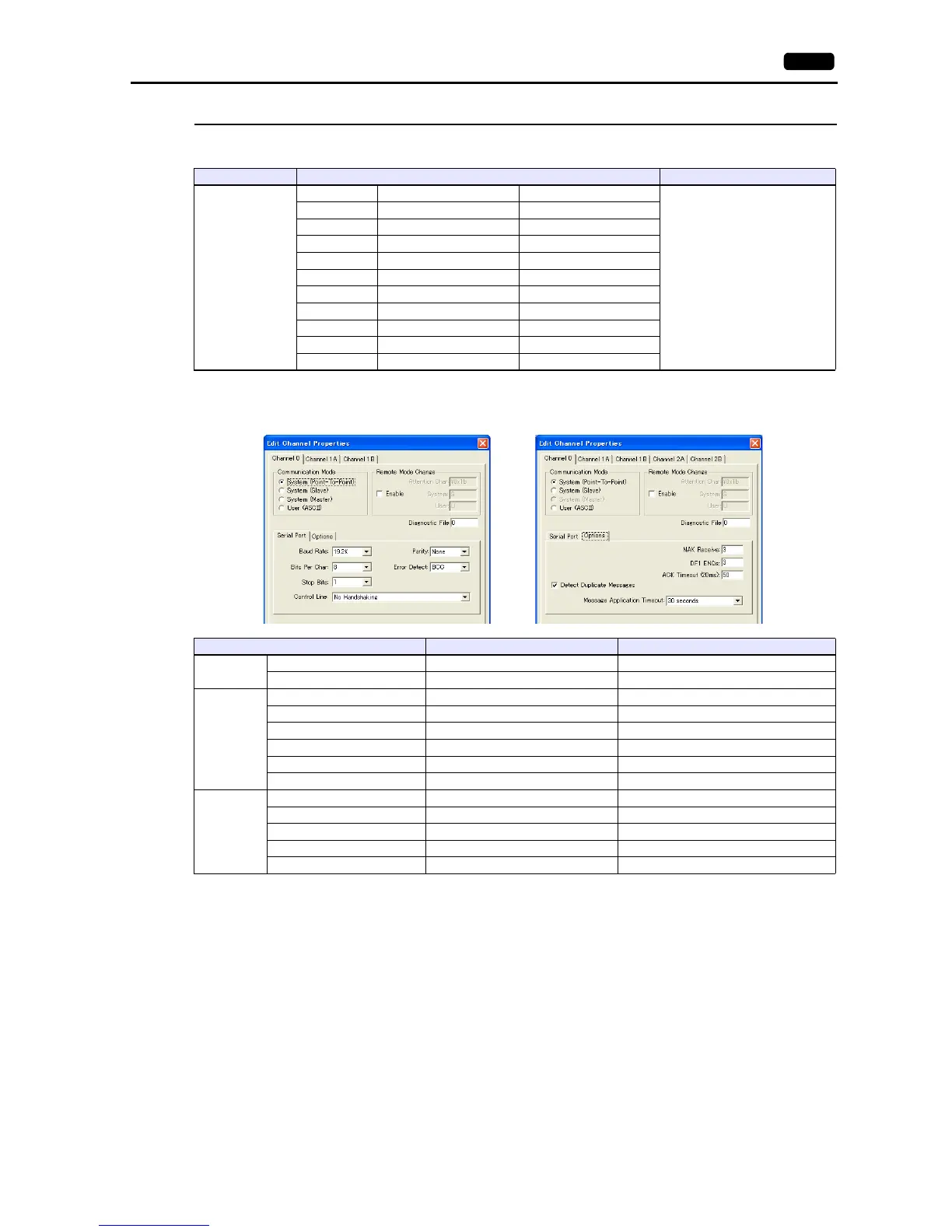

2.1 PLC Connection 2-5
Channel 0
SW-2 (selection of RS-232C/RS-422A)
Channel configuration
SW Setting Remarks
SW2
No. RS-232C RS-422A
ON: Lower position
OFF: Upper position
1ON OFF
2ON OFF
3ON ON
4OFF OFF
5OFF OFF
6ON OFF
7ON OFF
8OFF OFF
9ON ON
10 OFF OFF
Item Setting Remarks
Channel 0
Communication Mode System (Point-To-Point)
Remote Mode Change Unchecked
Serial Port
Baud Rate 4800 / 9600 / 19.2 K
Bits Per Char 7 / 8
Stop Bits 1 / 2
Control Line No Handshaking
Parity None / Even
Error Detect BCC
Options
Detect Duplicate Messages Checked
NAK Receive 3
DF1 ENQs 3
ACK Timeout (20 msec) 50
Message application timeout 30 seconds
