16.1 PLC Connection 16-3

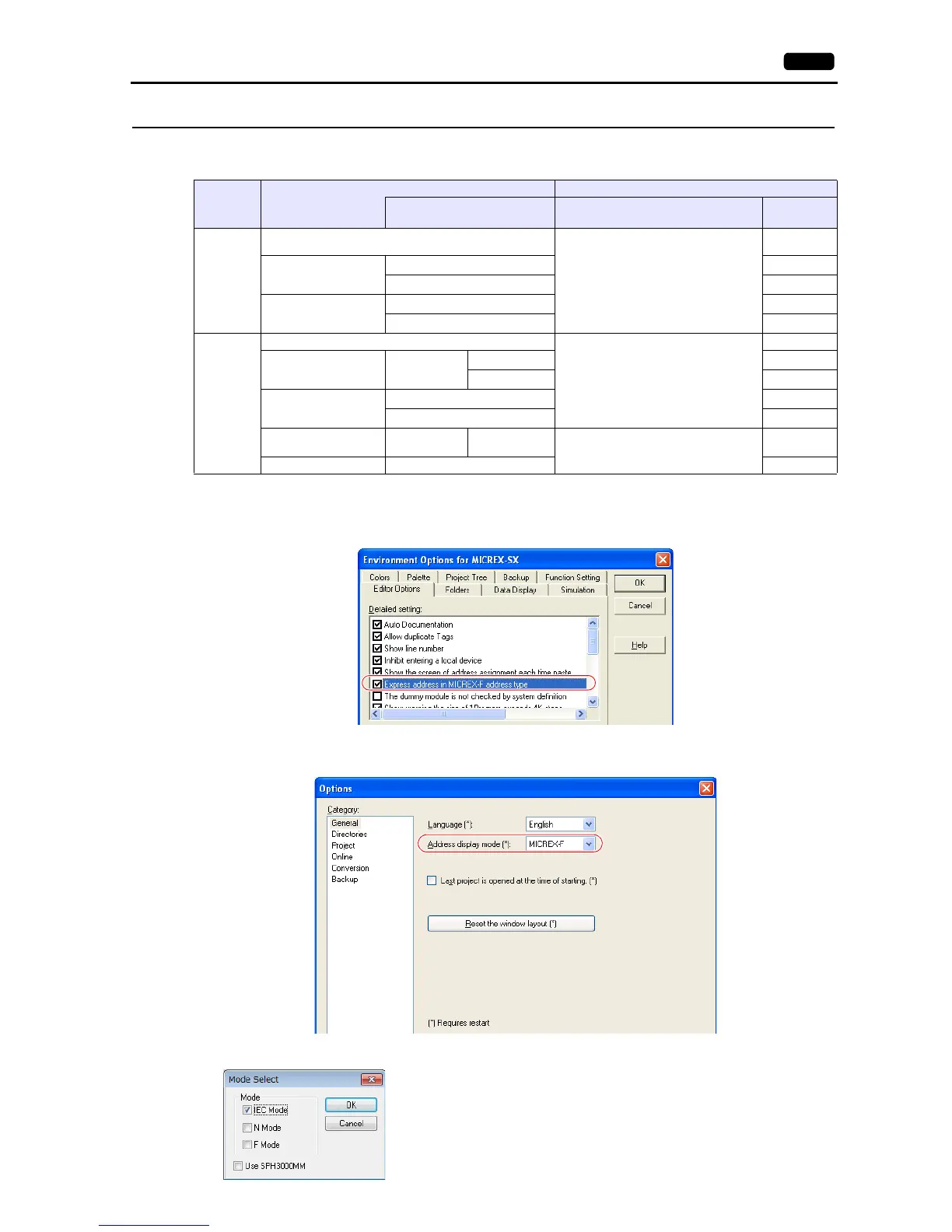

MICREX-SX Model Selection
When the MICREX-SX SPH or SPB series is connected, a mode selection may be required on the V9 editor depending on the
programming tool used on the PLC or the setting on the programming tool.
*1 The setting procedure differs depending on the version of the SX-Programmer Standard tool.
-Ver. 1 or 2:
Check or uncheck the box for [Express address in MICREX-F address type] on the [Editor Options] tab window in the [Environment
Options for MICREX-SX] dialog ([Options]  [MICREX-SX Environment]).
-Ver. 3:
Select “MICREX-F” from [Address display mode] ([Tool] [Options]  [Category: General]).
*2 [Mode Select] dialog on the V9 editor
PLC
PLC Programming Tool Setting on the V9 Editor
Address Expression PLC Selection
Mode
Selection
*2
SPH series
SX-Programmer Expert (D300win)
MICREX-SX SPH/SPB series
MICREX-SX SPH / SPB CPU
MICREX-SX (Ethernet)
IEC Mode
SX-Programmer
Standard (Ver. 1 / 2)
Unchecked
*1
N Mode
Checked
*1
F Mode
SX-Programmer
Standard (Ver. 3)
FLEX-PC
*1
N Mode
MICREX-F
*1
F Mode
SPF series
SX-Programmer Expert (D300win)
MICREX-SX SPH/SPB series
MICREX-SX SPH / SPB CPU
IEC Mode
SX-Programmer
Standard (Ver. 1 / 2)
SX-MODE
Unchecked
*1
N Mode
Checked
*1
F Mode
SX-Programmer
Standard (Ver. 3)
FLEX-PC
*1
N Mode
MICREX-F
*1
F Mode
SX-Programmer
Standard (Ver. 1 / 2)
N-MODE -
SPB (N mode) & FLEX-PC series
SPB (N mode) & FLEX-PC CPU
-
FLEX-PC Programmer - -
- [IEC Mode]: Variable name cooperation function
- [N Mode]: Address denotation “hexadecimal”
*
- [F Mode]: Address denotation “decimal”
*
* Except bit addresses
