1.1 System Configuration
1.1.1 Overview
The V9 series is equipped with seven physical ports consisting of three serial ports, one LAN port, one USB-A port, one USB
mini-B port, and one network communication port
*1
. The LAN port can open eight ports simultaneously.
You can use the physical ports to connect a maximum of eight different models of devices and allow the V9 series to
communicate with them at the same time. This is called 8-way communication.
*1 A communication interface unit (CUR-xx, under development) is required to enable network communication.
 Only the logical port PLC1 can be selected for the following devices and functions. Thus, they cannot be connected at the
same time.
-Devices
Network connection (CUR-xx, under development), without PLC connection, Mitsubishi Electric A-Link + Net10, AB
Control Logix, Siemens S7-200PPI, Siemens S7-300/400 MPI connection
- Functions
Multi-link2, Multi-link, ladder transfer, ladder monitor, MICREX SX variable name cooperation function

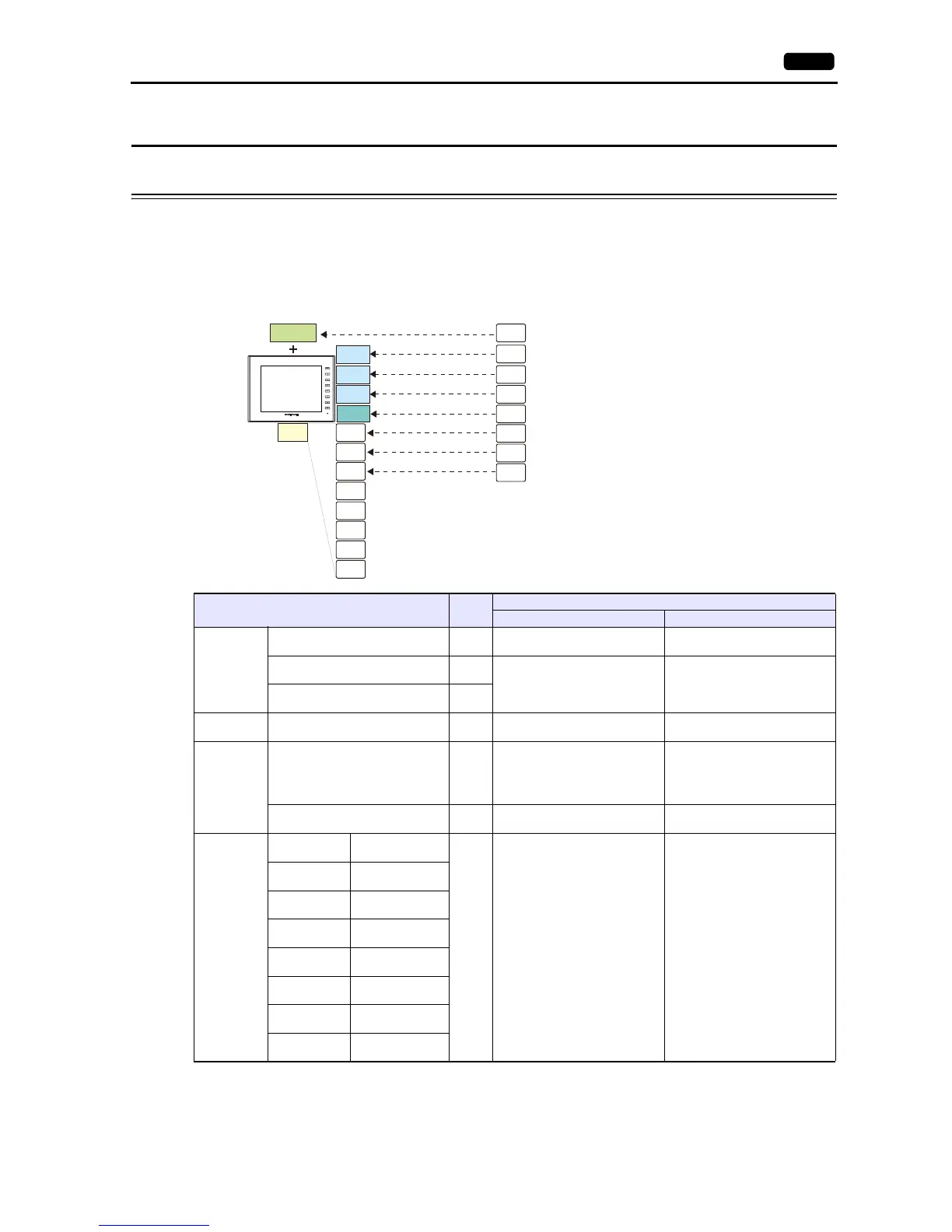

Physical Ports
No. of
Ports
Applicable Devices
8-way Communication Other than 8-way
Serial
CN1 (RS-232C/RS-422/485) 1
PLC, temperature controller, servo,
inverter, barcode reader
-
MJ1 (RS-232C/RS-485, 2-wire
connection)
1
PLC, temperature controller, servo,
inverter, barcode reader, V-Link,
slave communication (Modbus
RTU)
Computer (screen program
transfer, MJ1)
Serial printer
MJ2 (RS-232C/RS-485, 2-wire
connection)
1
Ethernet LAN 8
PLC, slave communication (Modbus
TCP/IP)
Computer (screen program
transfer)
USB
USB-A 1 Barcode reader
Printer (EPSON ESC/P-R
compatible), USB flash drive,
USB-CFREC-2 (under
development), keyboard, mouse,
USB hub
USB mini-B 1 -
Printer (PictBridge), computer
(screen program transfer)
Network
OPCN-1
CUR-00 (under
development)
1PLC -
T-Link
CUR-01 (under
development)
CC-LINK
CUR-02 (under
development)
Ethernet
CUR-03 (under
development)
PROFIBUS-DP
CUR-04 under
development)
SX BUS
CUR-06 (under
development)
DeviceNet
CUR-07 (under
development)
FL-Net
CUR-08 (under
development)
CN1
LAN
CUR-xx
MJ1
MJ2
PLC1
PLC2
PLC3
PLC4
PLC5
PLC6
PLC7
PLC8
port1
port2
port3
port4
port5
port6
port7
port8
USB-A
V9
Physical ports Logical ports
Select a target for
connection.
PLC (company A)
PLC (company B)
PLC (company H)
Temperature controller (company C)
Inverter (company D)
Barcode reader (company E)
PLC (company F)
PLC (company G)
