Hakko Electronics Monitouch V9 Series User Manual

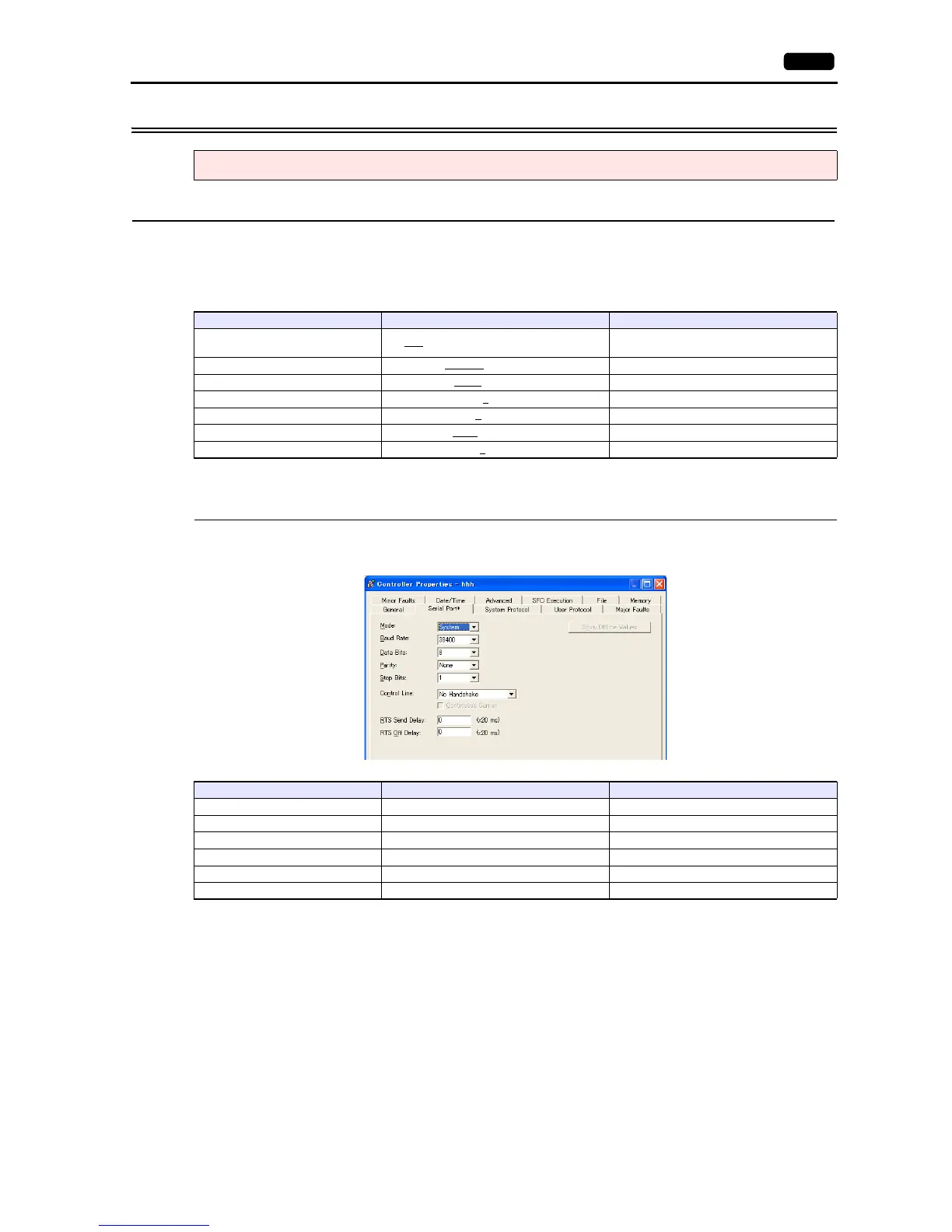

2.1 PLC Connection 2-11
2.1.3 Control Logix / Compact Logix
Communication Setting
Editor
Communication setting
(Underlined setting: default)
PLC
Control Logix
Serial port
The logical port PLC1 can only be selected because the tag table is used.
Item Setting Remarks
Connection Mode 1:1
/ Multi-link2 / Multi-link2 (Ethernet)
For multi-link2 and multi-link2 (Ethernet), be
sure to use the same tag table.
Signal Level RS-232C
/ RS-422/485
Baud Rate 4800 / 9600 / 19200
/ 38400 / 57600 115k bps
Data Length 8
bits
Stop Bit 1
/ 2 bits
Parity None
/ Odd / Even
Targe t Por t N o. 0
to 31
Item Setting Remarks
Mode System
Baud Rate 38400
Data Bits 8
Parity None
Stop Bits 1
Control Line No Handshake
