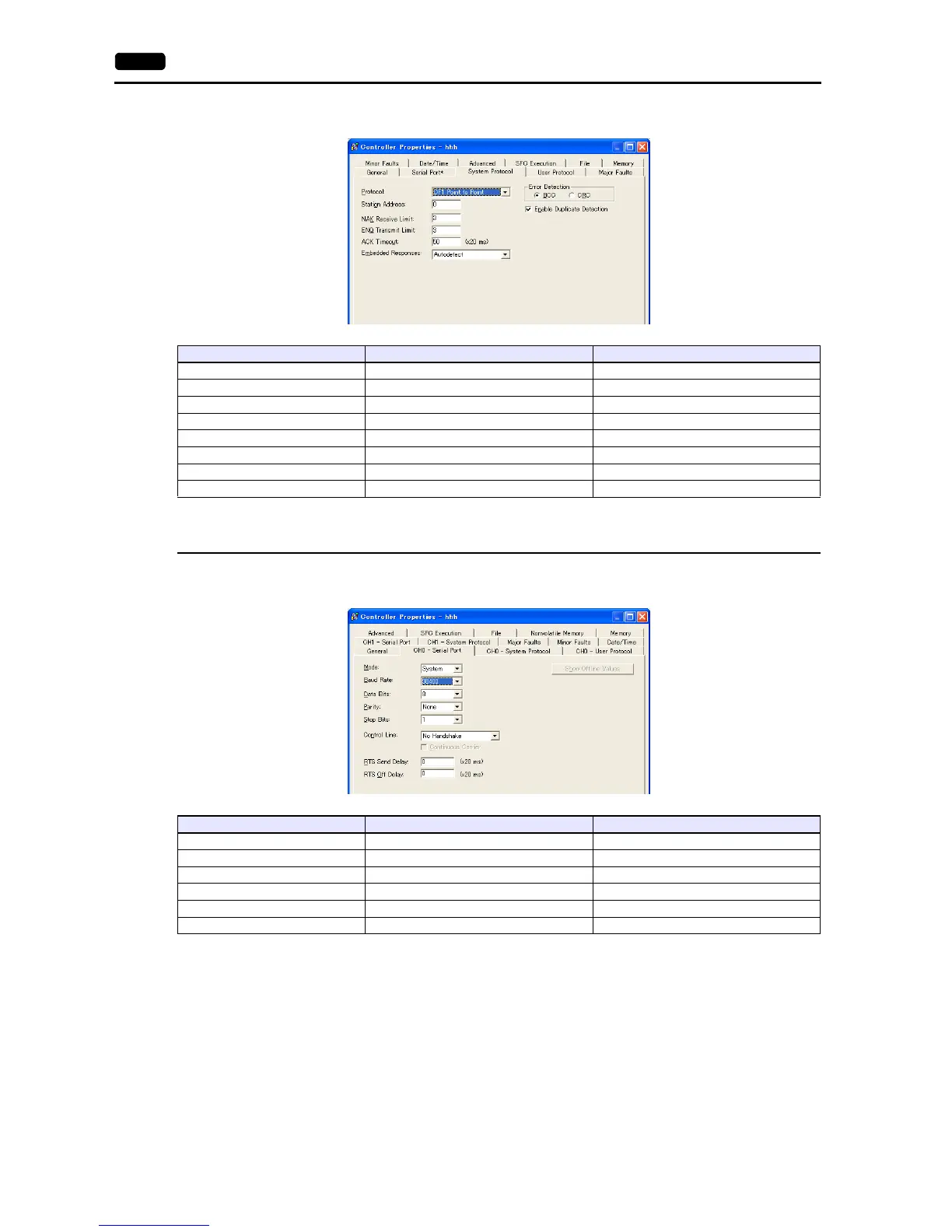

2-12 2. ALLEN BRADLEY
System protocol
Compact Logix
CH0 - serial port
Item Setting Remarks
Protocol DF1 Point to Point
Station Address 0
NAK Receive Limit 3
ENQ Transmit Limit 3
ACK Timeout 50
Embedded Responses Autodetect
Error Detection BCC
Enable Duplicate Detection Checked
Item Setting Remarks
Mode System
Baud Rate 38400
Data Bits 8
Parity None
Stop Bits 1
Control Line No Handshake
