2.1 PLC Connection 2-13
CH0 - system protocol
Available Device Memory
Create a CSV file by exporting “tag” created by using the ladder tool of the PLC. Then import the CSV file into the editor to set
the PLC device memory.
For more information on importing, exporting and creating a tag, refer to “Connection with A•B Control Logix” provided
separately.
Indirect Device Memory Designation
Not available

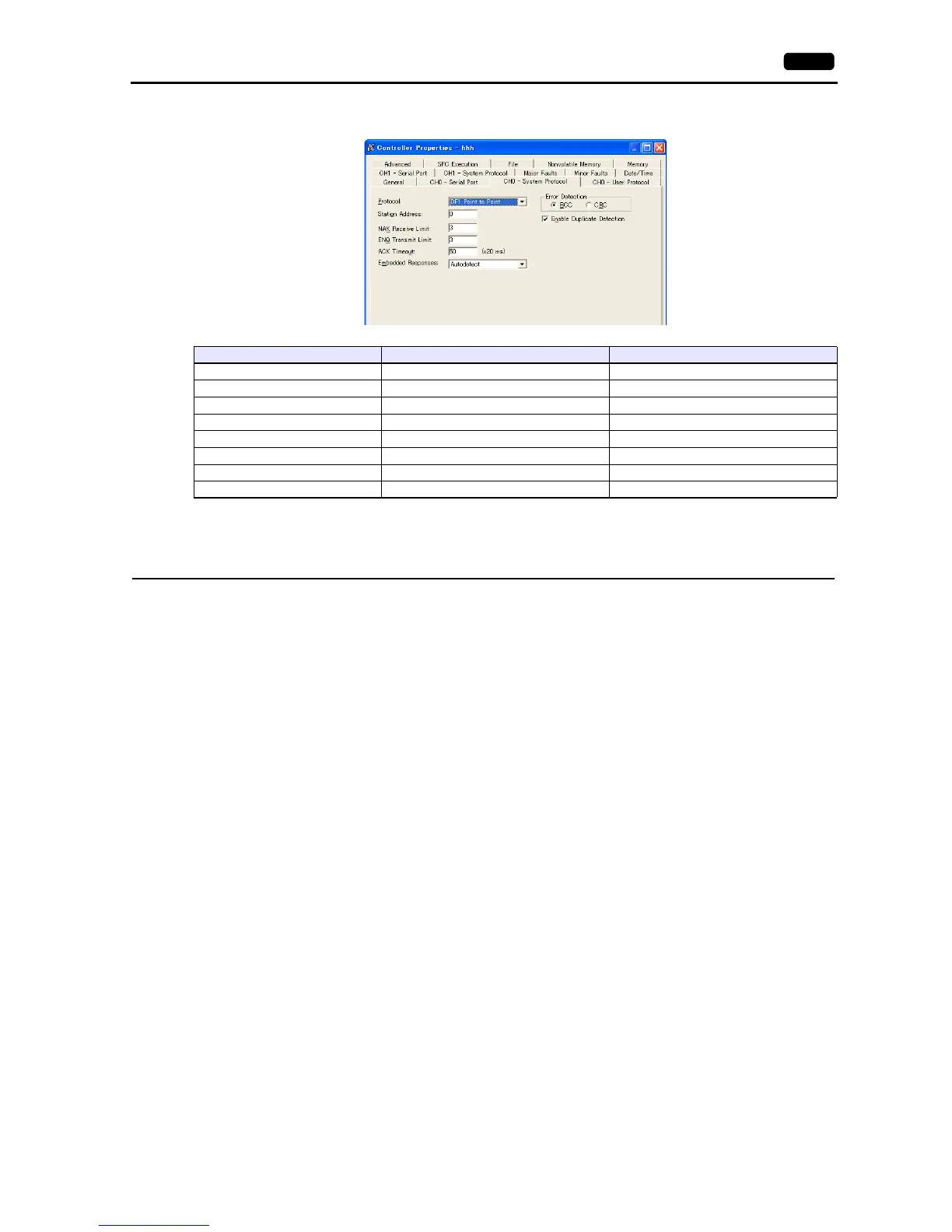

Item Setting Remarks
Protocol DF1 Point to Point
Station Address 0
NAK Receive Limit 3
ENQ Transmit Limit 3
ACK Timeout 50
Embedded Responses Autodetect
Error Detection BCC
Enable Duplicate Detection Checked
