16-14 16. Fuji Electric
16.1.8 MICREX-SX (Ethernet) (IEC Mode)
Communication Setting
Editor
Make the following settings on the editor. For more information, see “1.3.2 Ethernet Communication”.
IP address for the V9 unit
- When specified on the screen program:
[System Setting] [Hardware Setting] [Local Port IP Address]
- When specified on the V9 unit:
Local mode [LAN Setting]
Port number for the V9 unit (for communication with PLC)
[System Setting] [Hardware Setting] [PLC Properties] [Communication Setting]
IP address and port number of the PLC
Register on the [PLC Table] in [System Setting] [Hardware Setting] [PLC Properties] [Target Settings].
The PLC port number is “Self port standard No.” plus 251 set on the PLC.
PLC (Ethernet Parameter Setting)
The table below shows settings required for communication with the V9. (Underlined setting: default)
For more information on other setting items, refer to the PLC manual issued by the manufacturer.
Setting Example

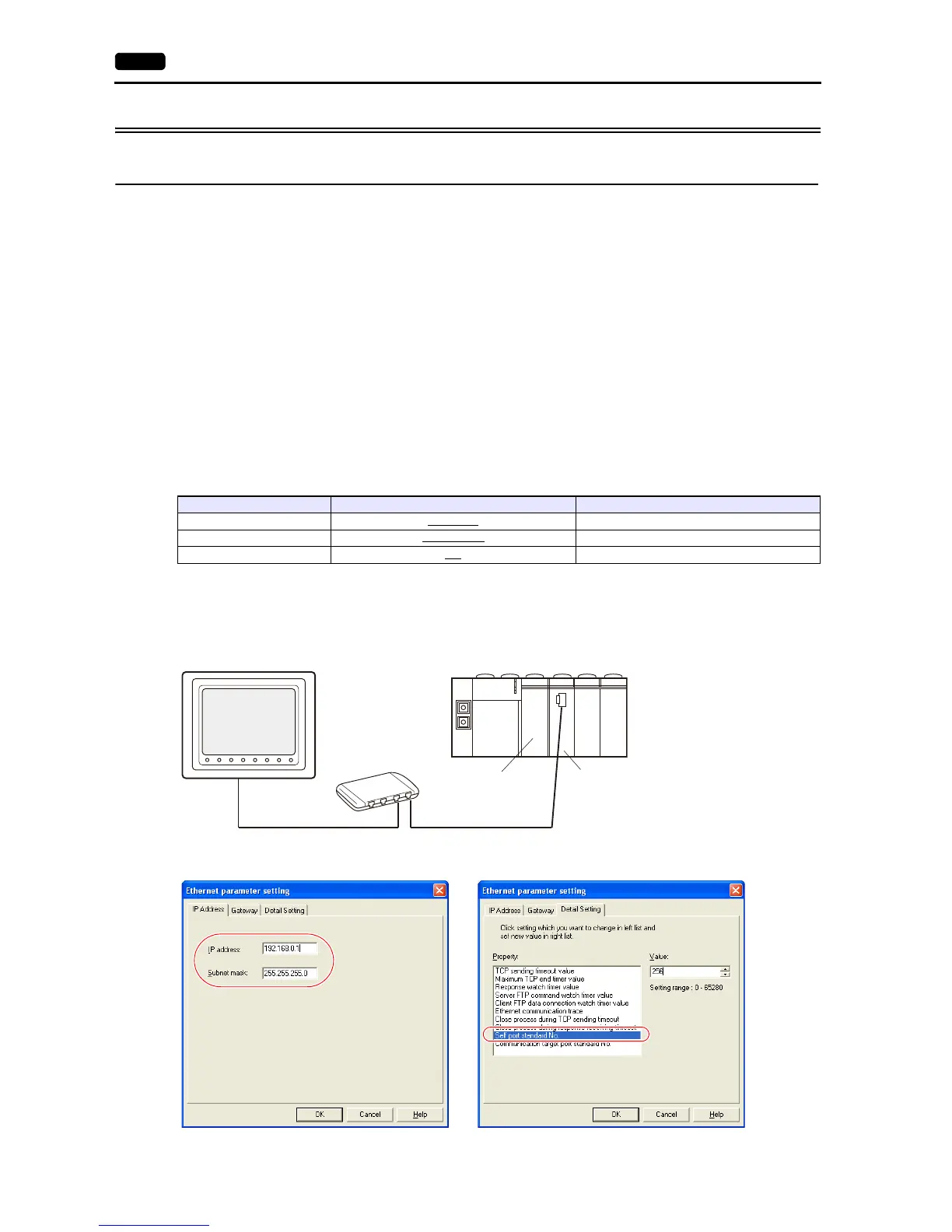

The following example shows the setting for communication between MICREX-SX ET1 module and the V9 unit via Ethernet.
Setting on the PLC loader
Item Setting Remarks
IP Address 192.168.0.1
Subnet Mask 255.255.255.0
Self-port Standard No. 256
To Next Page
