2-20 2. ALLEN BRADLEY
2.1.6 SLC500 (Ethernet TCP/IP)
Communication Setting
Editor
Make the following settings on the editor. For more information, see “1.3.2 Ethernet Communication”.
 IP address for the V9 unit
- When specified on the screen program:
[System Setting]  [Hardware Setting]  [Local Port IP Address]
- When specified on the V9 unit:
Local mode  [LAN Setting]
 Port number for the V9 unit (for communication with PLC)
[System Setting]  [Hardware Setting]  [PLC Properties]  [Communication Setting]
 IP address and port number (No. 44818) of the PLC
Register on the [PLC Table] in [System Setting]  [Hardware Setting]  [PLC Properties]  [Target Settings].
PLC
Channel 1

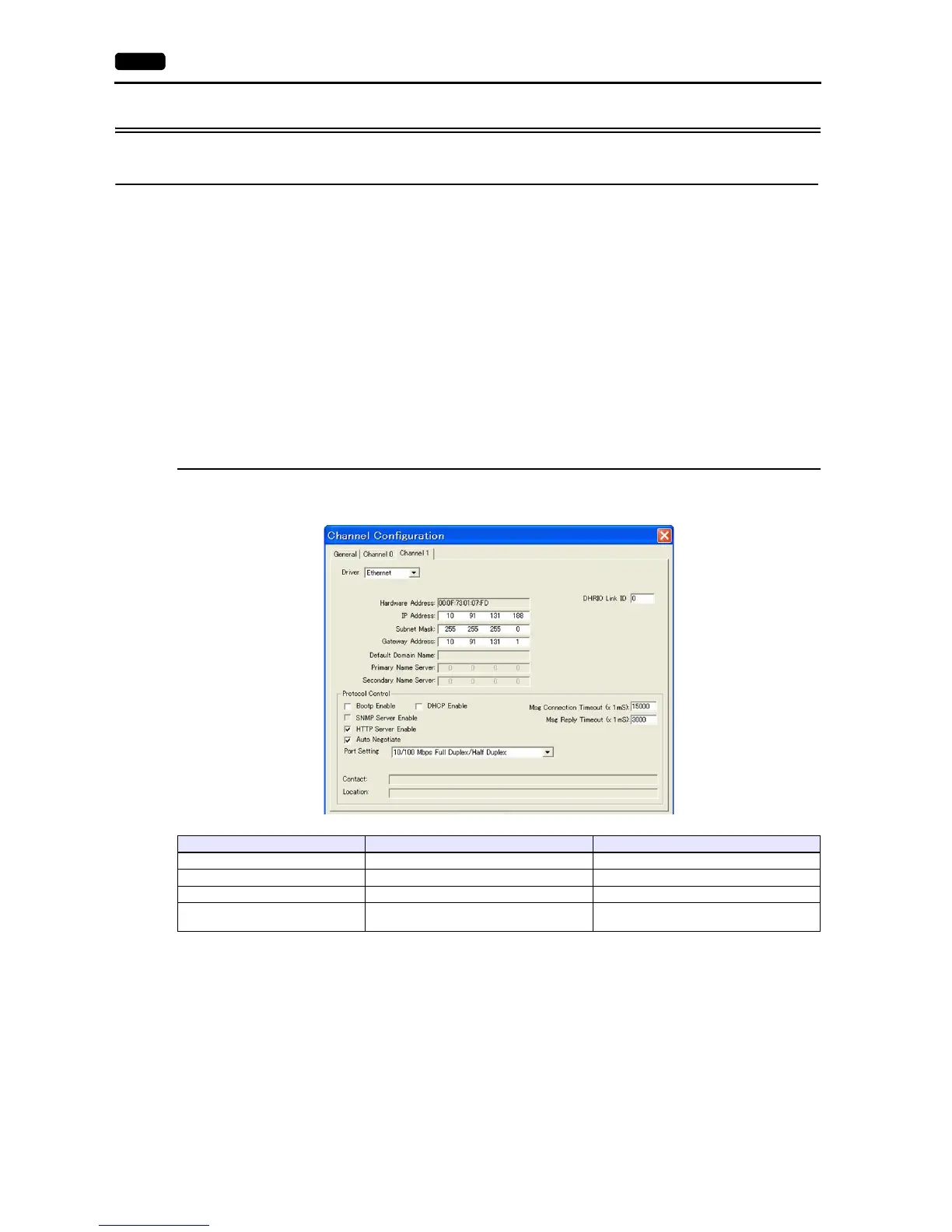

Channel configuration (channel 1)
Item Setting Remarks
Driver Ethernet
IP Address PLC’s IP address
Subnet Mask PLC’s subnet mask
Gateway Address
Make settings in accordance with the network
environment.
