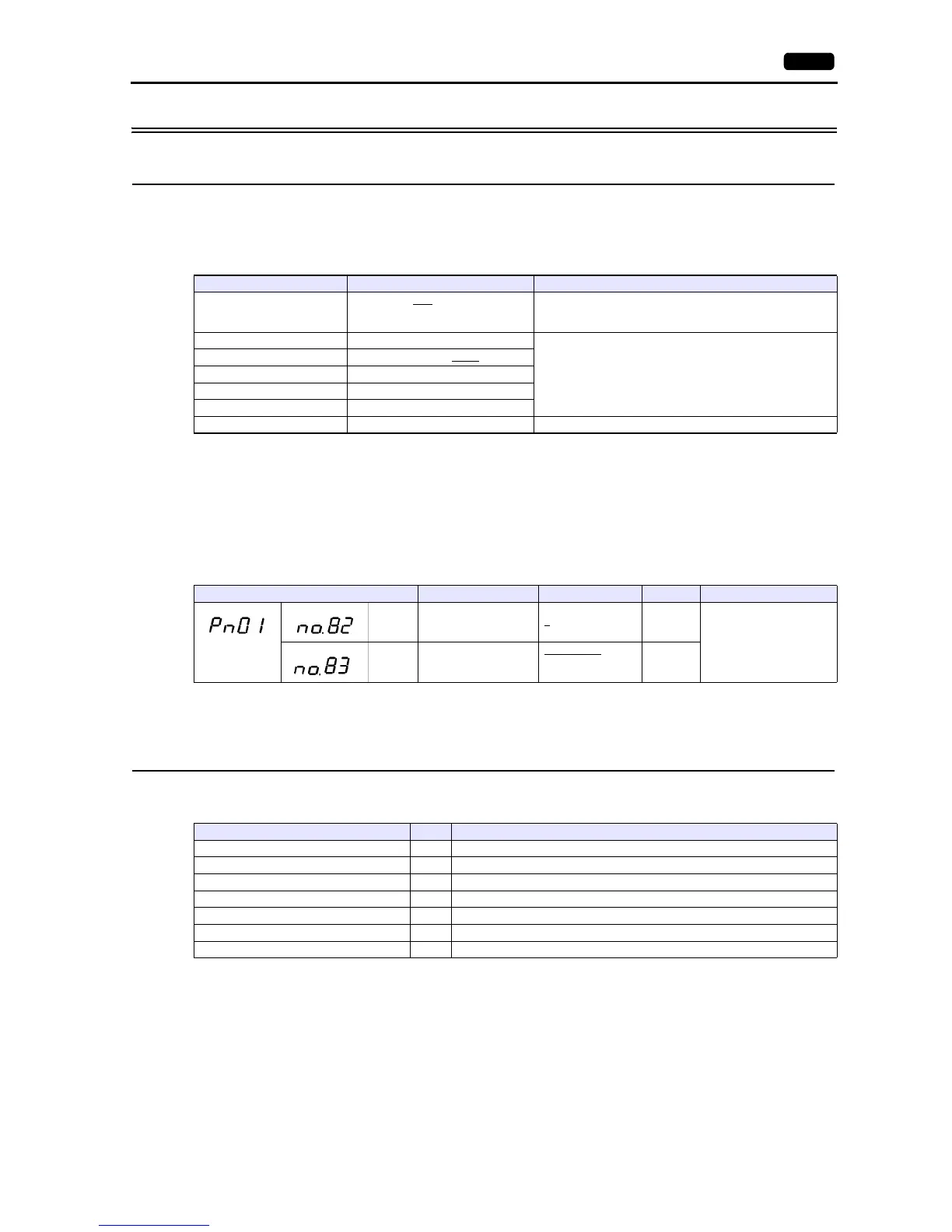

16.2 Temperature Controller/Servo/Inverter Connection 16-71
16.2.24FALDIC-W Series
Communication Setting
Editor
Communication setting
(Underlined setting: default)
* When changing the time-out time, note the following points. (Default: 500 (msec))
- When the baud rate is 19200 bps or 38400 bps, set 200 (msec) or greater.
- When the baud rate is 9600 bps, set 500 (msec) or greater.
Servo Amplifier
Set the communication parameters using the touch panel mounted on the servo amplifier.
Be sure to match the settings to those made under [Communication Setting] of the editor.
(Underlined setting: default)
* The following communication parameters are fixed; data length: 8 bits, stop bit: 1 bit, and parity: even.
Available Device Memory
The available setting range of device memory varies depending on the model. Be sure to set within the range available for the
model to be used. Use [TYPE] when assigning indirect device memory for macro programs.
Item Setting Remarks
Connection Mode
1 : 1 / 1 : n
/ Multi-link2 /
Multi-link2 (Ethernet) /
1 : n Multi-link2 (Ethernet)
Signal Level RS-422/485
Do not change the default setting other than baud rate because
the setting on the servo amplifier cannot be changed.
Baud Rate 9600 / 19200 / 38400
bps
Data Length 8 bits
Stop Bit 1 bit
Parity Even
Target Port No. 1 to 31
Parameter Item Setting Example Remarks
Parameter
editing mode
(No. 82) Station number 1
to 31 1
The setting takes effect
when the power is turned
off and back on again.
(No. 83) Baud rate
0: 38400 bps
1: 19200 bps
2: 9600 bps
0
Device Memory TYPE Remarks
01 (monitor data) 00H Double-word, read only
02 (sequence mode) 01H Read only
03 (sequence I/O signal) 02H Read only
04 (alarm history) 03H Read only
06 (current alarm readout) 04H Read only
07 (parameter) 05H Double-word
09 (alarm reset) 06H Write only
To Next Page
