1-36 1. Overview
1.3.2 Ethernet Communication
Overview

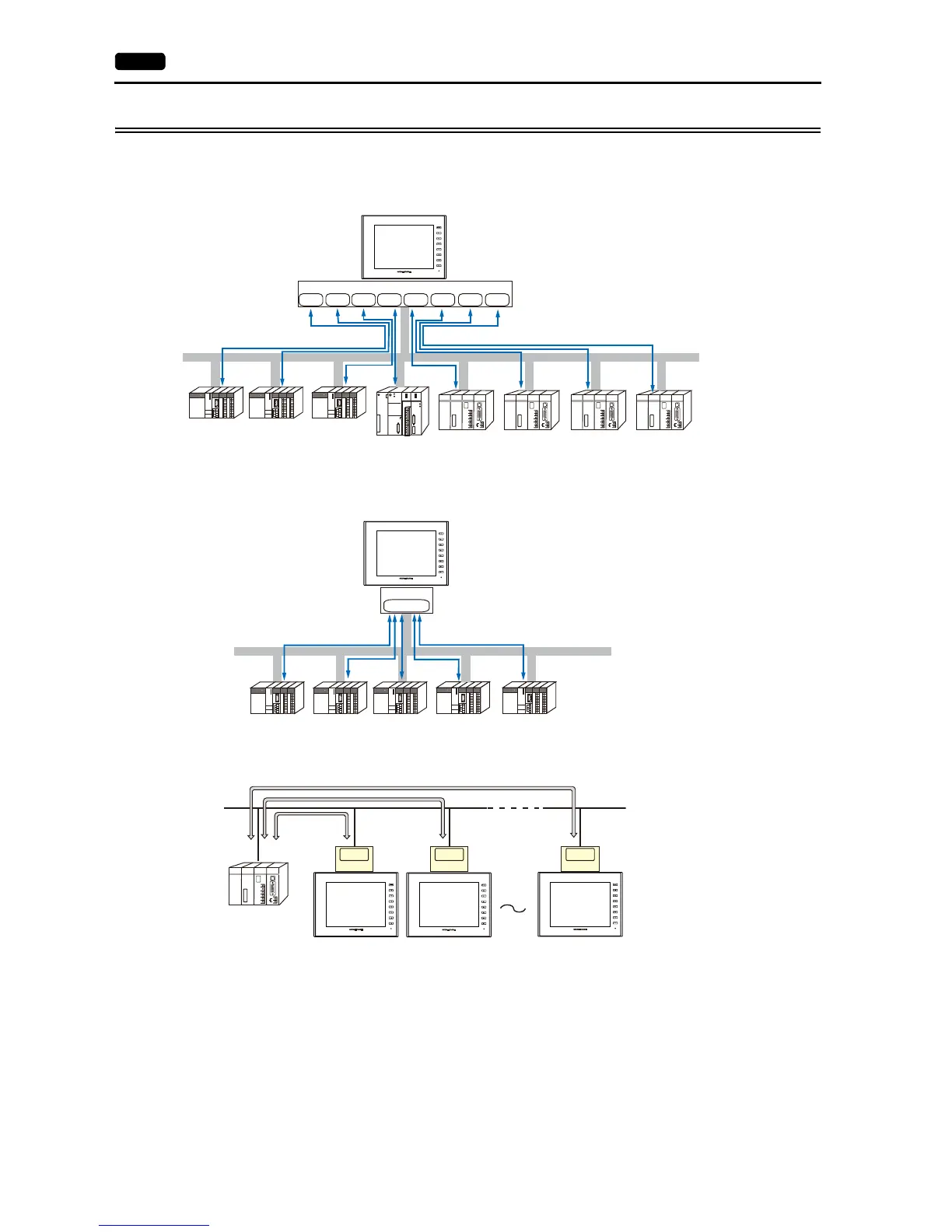

Because eight communication ports can be opened, the V9 series is allowed to communicate with eight models of PLCs at
the same time.
When there are two or more PLCs of the same model, the V9 series is allowed to carry out 1 : n communication via one
single port.
If multiple V9 units are connected to one single PLC, the maximum permissible number of these units depends on the PLC
specifications. Refer to the PLC manual issued by the manufacturer.
You can make settings for Ethernet communication in [Communication Setting] for the logical ports PLC1 - PLC8.
Ethernet
LAN
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
・・・
run
stop
PROGRAMMER
PROGRAMMER
PROGRAMMER
PROGRAMMER
Port2Port1 Port3 Port4 Port5 Port6 Port7 Port8
Company A Company B Company C
Company E Company F Company G Company H
Company D
V9
Ethernet
LAN
Port1
V9
Company A
* A maximum of 256 units can
be connected to one port.
Ethernet
PROGRAMMER
FACTORY
ACE
IP192.168.1.1 IP192.168.1.2 IP192.168.1.3
IP192.168.1.10
PLC
LAN
Port1
LAN
Port1
LAN
Port1
V9 V9 V9
