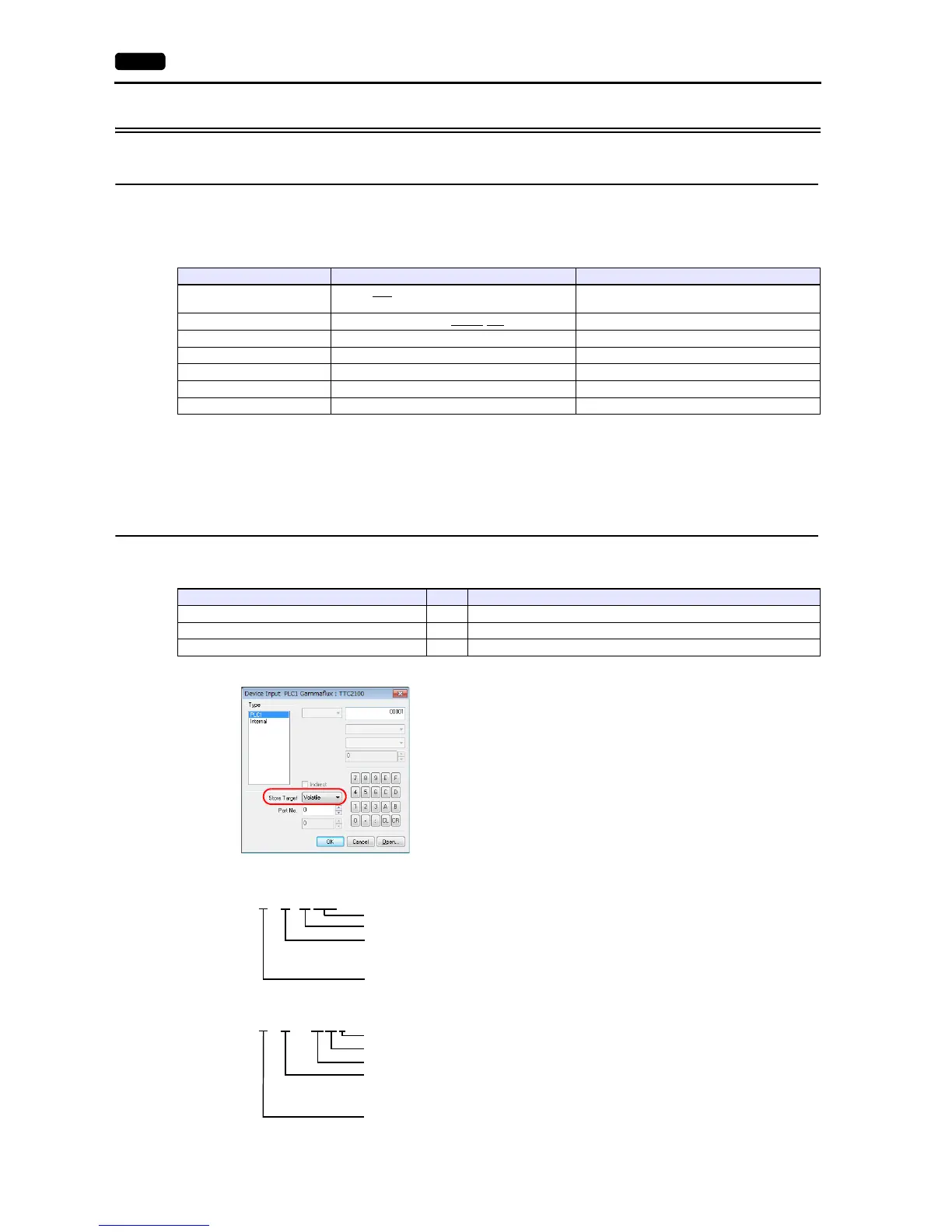

17.1.1 TTC2100
Communication Setting
Editor
Communication setting
(Underlined setting: default)
Temperature Controller
Be sure to match the settings to those made under [Communication Setting] of the editor.
Available Device Memory
The available setting range of device memory varies depending on the model. Be sure to set within the range available for the
model to be used. Use [TYPE] when assigning indirect device memory for macro programs.
Specify the storage device memory.
Address denotations are as follows.
 For the TD:
Example: 0 : #0 : TD0000A
 For ZC, ZD:
Example: 0 : #1 : ZC000A0
Item Setting Remarks
Connection Mode
1:1 / 1:n
/ Multi-link2 / Multi-link2 (Ethernet) /
1:n Multi-link2 (Ethernet)
Signal Level RS-232C / RS-422
/485
Baud Rate 57600 bps
Data Length 8 bits
Stop Bit 1 bit
Parity Not provided
Targe t Por t N o. 0 to 31
Device Memory TYPE Remarks
TD (temperature data) 00H Read only
ZC (zone commands) 01H Partially read only
ZD (zone commands2) 02H Partially read only
Command No. (HEX)
ZONE No. 00 - 3FH (1 - 64)
Station number
Storage device memory
0: Volatile
1: Nonvolatile
Command No. (HEX)
ZONE No. 00 - 3FH (1 - 64)
Station number
Storage device memory
0: Volatile
1: Nonvolatile
Data No. (HEX)
