Local Mode Screen
2. System Information
Pressing [System Information] in the menu icons brings up the System Information screen. This screen
is used to view the information of the V9 series, screen program, etc.
This is the screen first displayed when the operation mode is switched from RUN to Local.

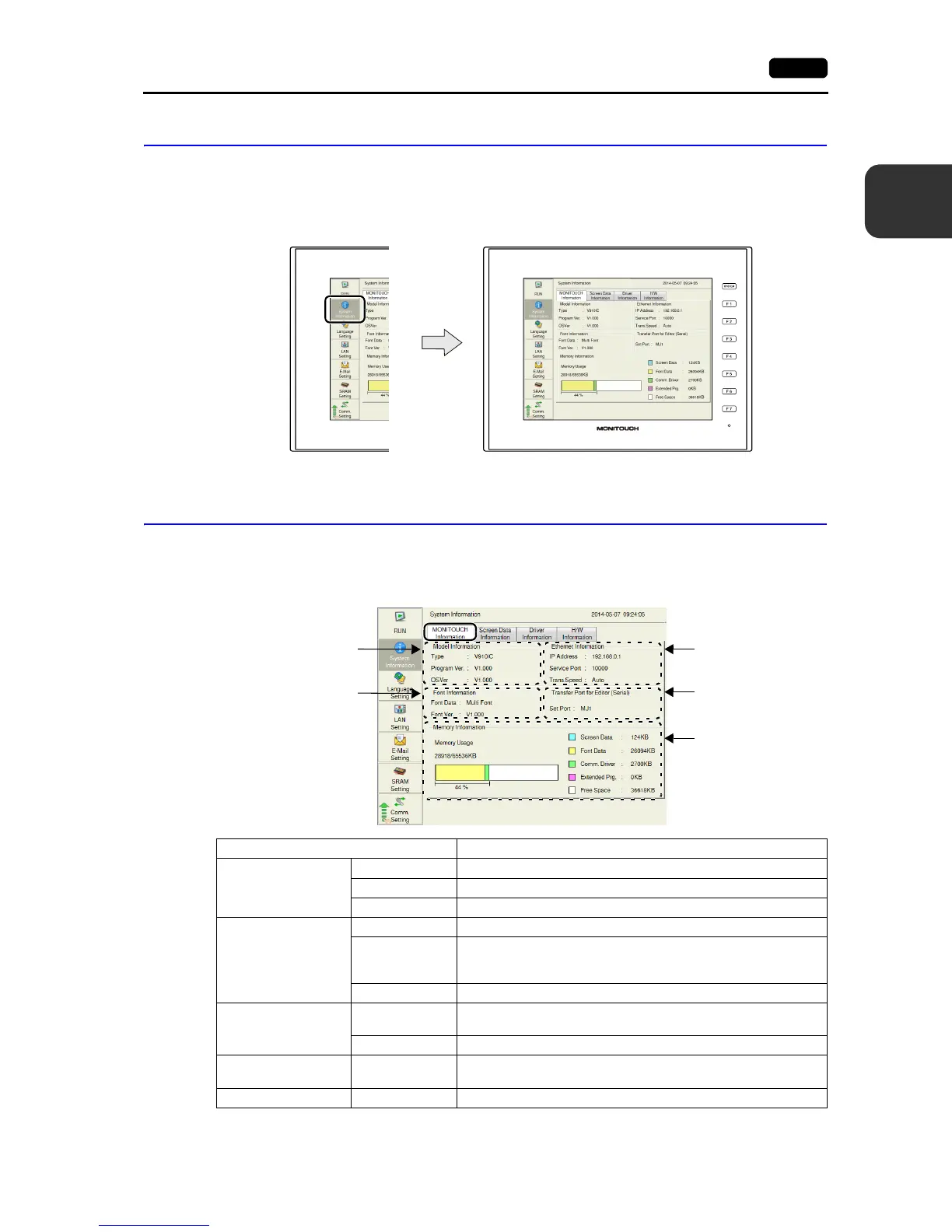

2-1. MONITOUCH Information
The [MONITOUCH Information] tab window on the System Information screen shows various
information on the V9 series.
Menu icons System Information screen
Item Description
Model Information
Type Indicates the model of the V9 series unit.
Program Ver. Indicates the version of the MONITOUCH system program.
OSVer Indicates the version of the operating system.
Ethernet information
IP Address Indicates the IP address of the V9 series unit.
Service Port
Indicates the port number of the V9 series unit.
This is used for macro commands of EREAD, EWRITE, SEND and
MES as well as the Ethernet DLL function.
Trans. Speed Indicates the Ethernet transmission speed.
Font Information
Font Data
Indicates the font data transferred into MONITOUCH. When two or
more types of fonts have been transferred, “Multi Font” is displayed.
Font Ver. Indicates the font version.
Transfer Port for Editor
(Serial)
Set Port Indicates the serial port used for screen program transfer.
Memory information Memory Usage Displays the usage status of FROM.
[MONITOUCH Information] tab window
Editor transfer port
(Serial)
Model information
Ethernet information
Memory information
Font information
