2-46 2. Local Mode Screen
Touch Switch Adjustment
If a position different from the pressed position turned white on the touch switch test described
previously, follow the steps described below to adjust the touch switch position.
1. Press the [Correct (F1)] switch or the [F1] function switch on the touch switch test screen. The
touch switch adjustment screen appears.
2. Press on the crosshairs at the top left corner.
* If it is not pressed for longer than 10 seconds, the
touch switch adjustment is automatically cancelled
and the screen is returned to the touch switch test
screen.
3. Press on the crosshairs at the bottom left corner.
* If it is not pressed for longer than 10 seconds, the
touch switch adjustment is automatically cancelled
and the screen is returned to the touch switch test
screen.
4. Press on the crosshairs at the bottom right corner.
* If it is not pressed for longer than 10 seconds, the
touch switch adjustment is automatically cancelled
and the screen is returned to the touch switch test
screen.
5. Press on the crosshairs at the top right corner.
* If it is not pressed for longer than 10 seconds, the
touch switch adjustment is automatically cancelled
and the screen is returned to the touch switch test
screen.
6. Press on the crosshairs at the center.
* If it is not pressed for longer than 10 seconds, the
touch switch adjustment is automatically cancelled
and the screen is returned to the touch switch test
screen.
7. Press the [Apply] to confirm the touch switch
position. The touch switch test screen is
displayed again.
* To cancel the touch switch positions before
confirming, do not press the [Apply] switch for 10
seconds. The touch switch adjustment is
automatically cancelled and the touch switch test
screen is displayed again.

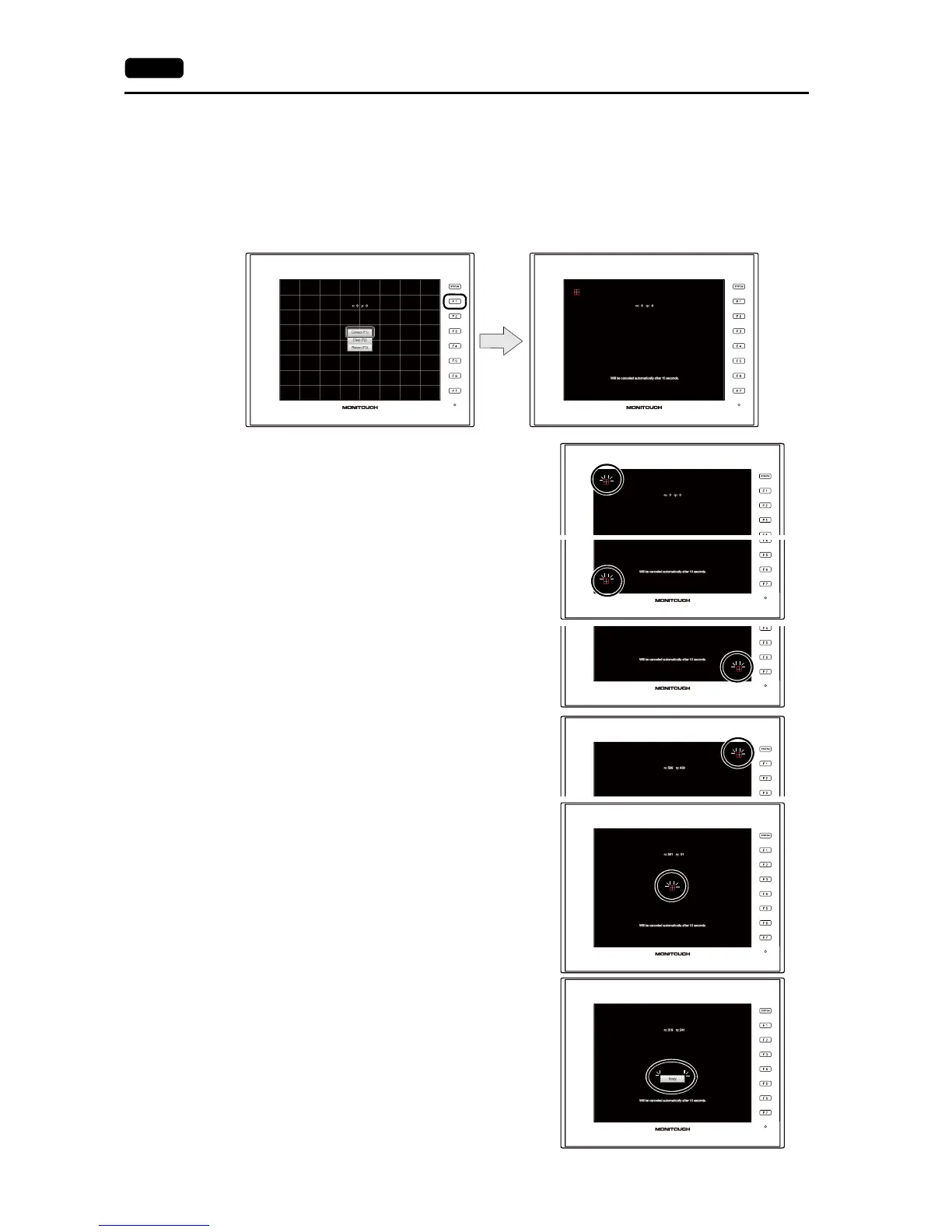

Touch switch test screen Touch switch adjustment screen
