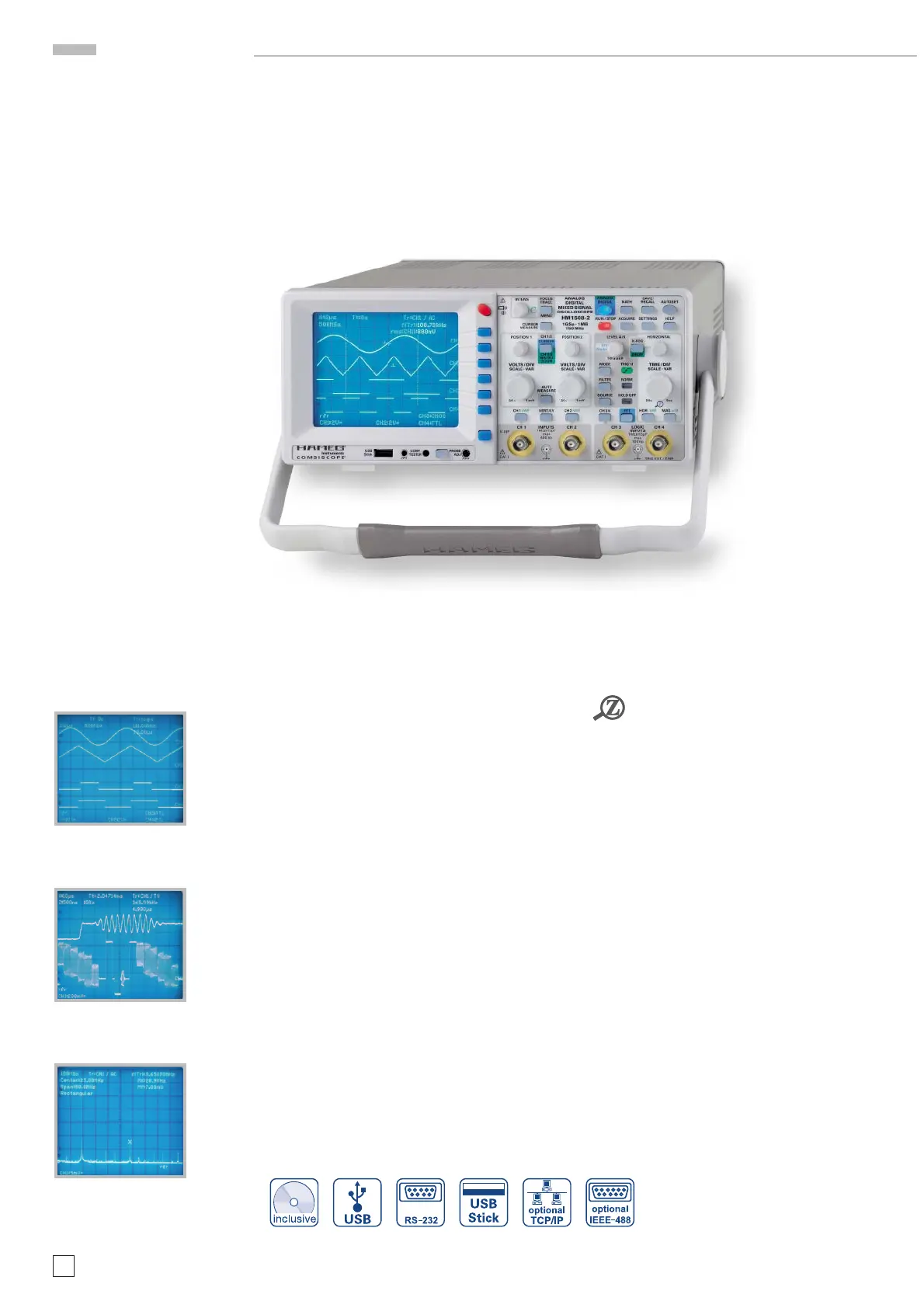

1 GSa/s Real Time Sampling, 10 GSa/s Random Sampling
1 MPts Memory per Channel, Memory oom up to 50,000:1
FFT for spectral analysis
4 Channels (2 analog, 2 logic inputs)
Deflection coefficients: 1 mV/cm – 20 V/cm,
Time Base: 50 s/cm – 5 ns/cm
8-Bit Low Noise Flash A/D Converters
Acquisition modes: Single, Refresh, Average, Envelope,
Roll, Peak-Detect
Front USB-Stick Connector for Screenshots
USB/RS-232
Interface
optional: IEEE-488, Ethernet/USB Interface
Signal display: Yt, XY and FFT;
Interpolation: Sinx/x, Pulse, Dot Join (linear)
Analog mode: see HM1500-2
DSO mode: Signal portion
expanded with zoom (color
burst in one line of a
composite video signal)
Frequency Analysis
with FFT
DSO mode:
4-channel display of 2
analog and 2 logic signals
