Hameg CombiScope HM1508-2 Service Manual

54
Subject to change without notice

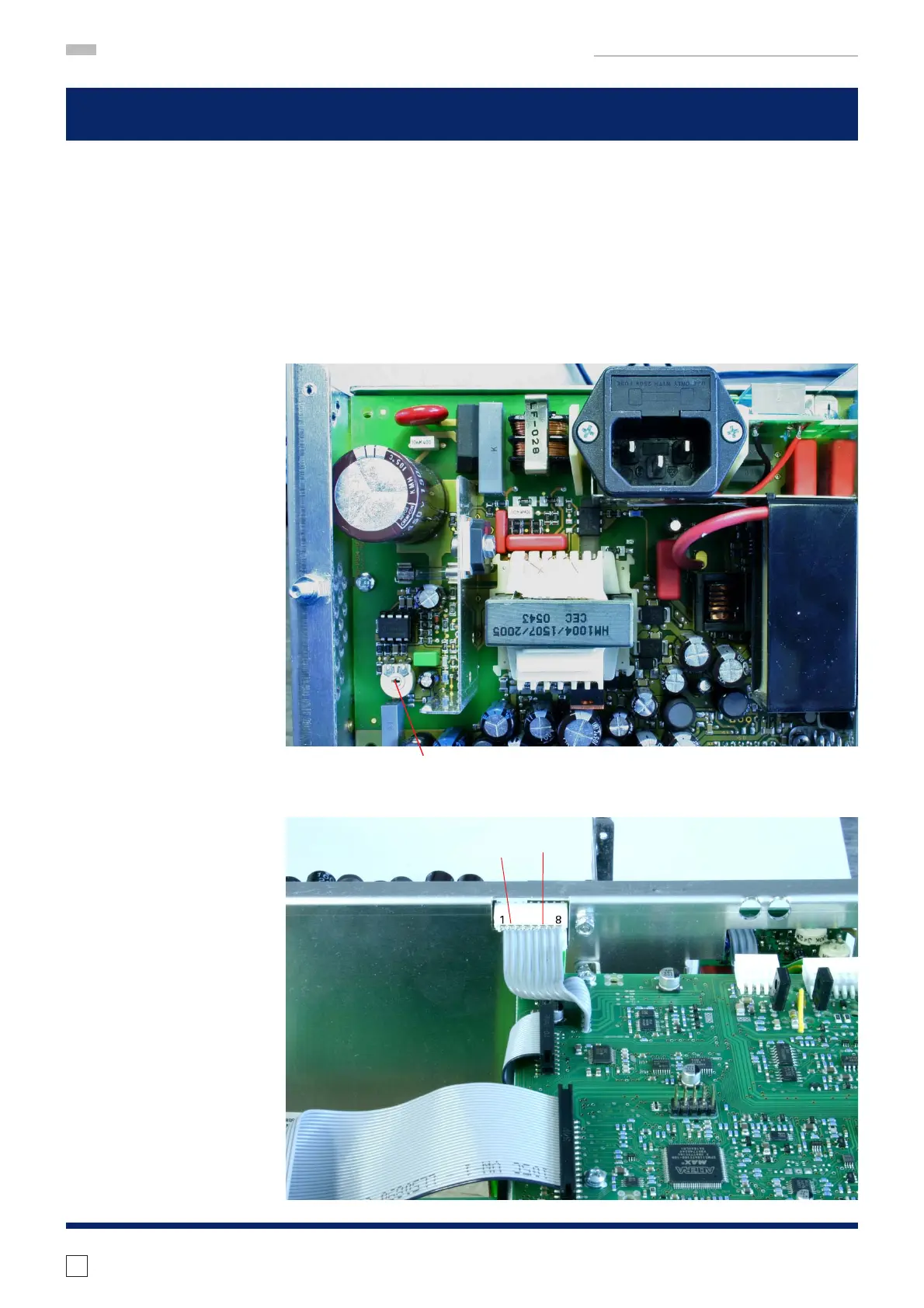

MANUAL ADJUSTMENT PROCEDURE HM1508-2
RV1001
1 +65 Volt supply
WARNING:
To avoid damage use a fully insulated screwdriver!
– Locate and identify RV1001 PS-Board (screened section).
– Locate connector J1002 ( 8 pole Molex) on PS-Board (accessible at the inner side of the rear chassis) and
identify pin 2.
– Adjust RV1001 for exactly +65 Volts (± 0.5 Volt) at J1002 pin 2 with respect to chassis.
+65 V
+12 V
RV1001
