Hameg CombiScope HM1508-2 Service Manual

62
Subject to change without notice

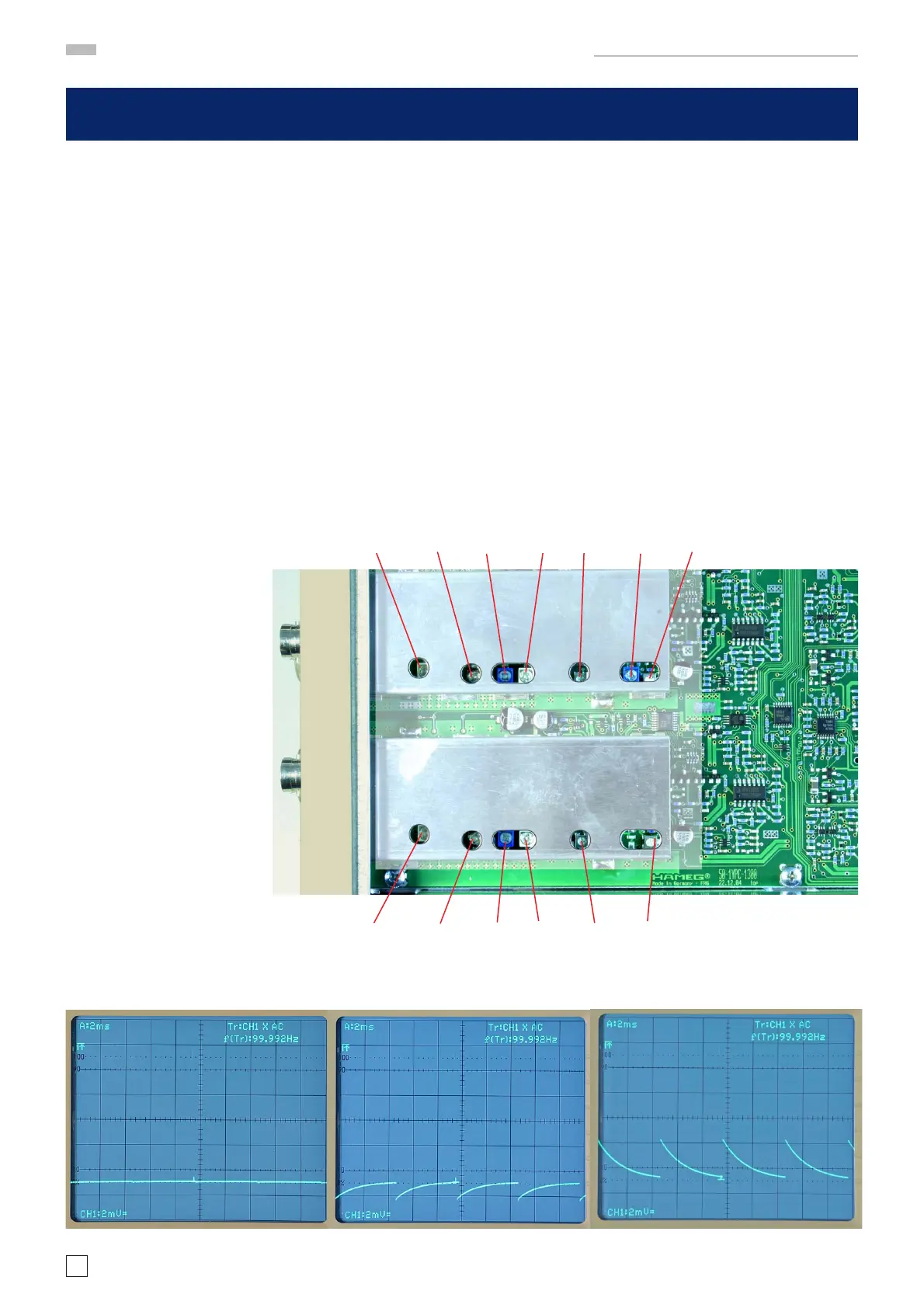

MANUAL ADJUSTMENT PROCEDURE HM1508-2
R2225
13 100 Hz Square Wave 2 mV/div Adjustment CH 2
– Locate and identify R2225 in CH 2 section of the YP-Board.
– Use the same settings as before under item 12.
– Set input attenuator CH 2 to 2 mV/div
– Adjust R2225 so that a straight line is displayed.
correct overcompensate undercompensate
C2206 C2204 C2217 C2223 R2231 C2201 R2225
C2006 C2004 C2017 C2023 R2031 R2025
