Hameg CombiScope HM1508-2 Service Manual

72
Subject to change without notice

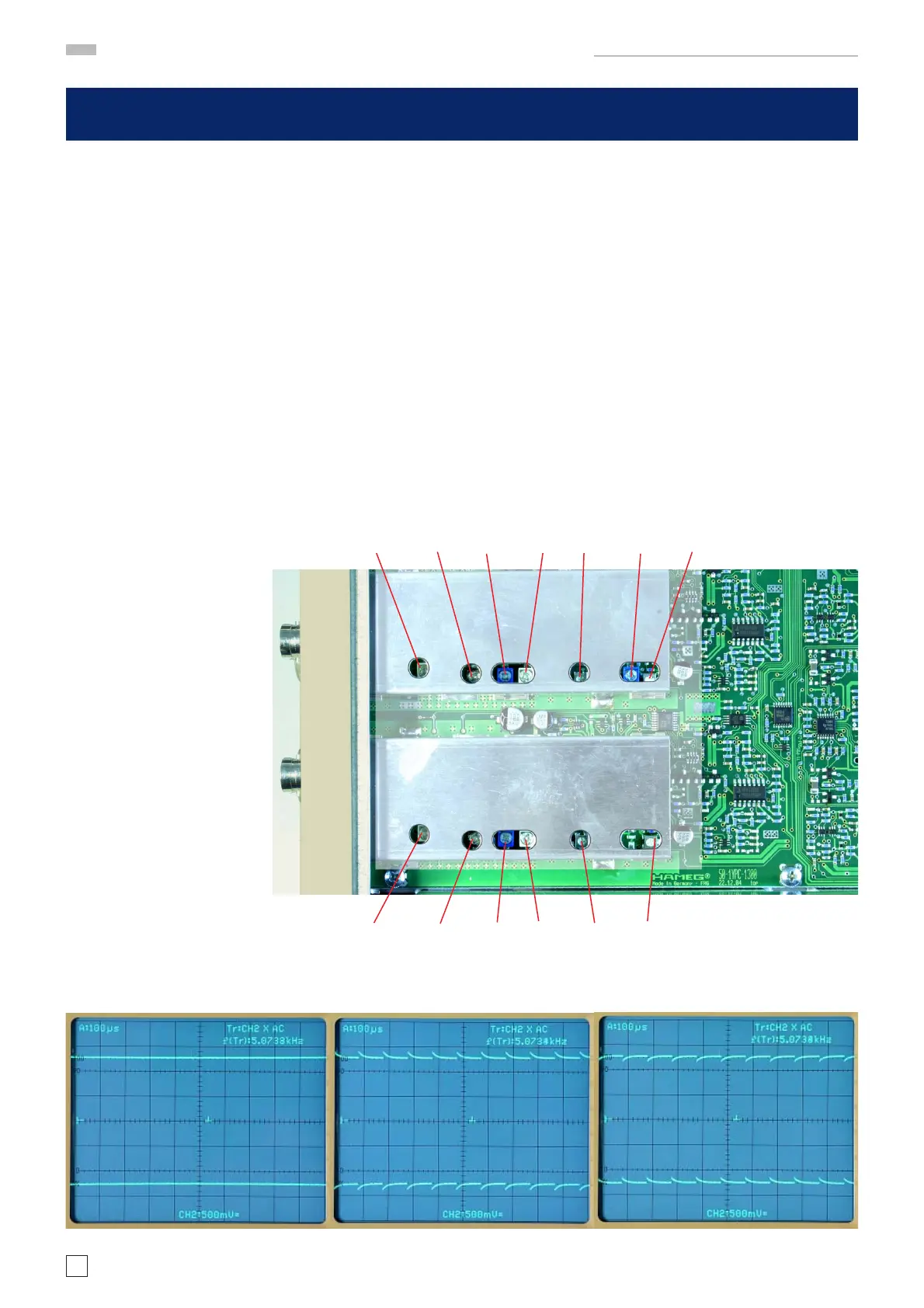

MANUAL ADJUSTMENT PROCEDURE HM1508-2
– Locate and identify C-Trimmer C2206 in the shielded CH 2 section of the YP board.
– Set amplitude calibrator (square wave generator) to 5 kHz.
– Set attenuator CH 2 to 500 mV/div.
– Adjust C2206 for 2 parallel, straight lines.
C2206
23 CH 2, 100:1 Attenuator Input Capacitance Adaptation
correct overcompensate undercompensate
C2206 C2204 C2217 C2223 R2231 C2201 R2225
C2006 C2004 C2017 C2023 R2031 R2025
