93
Subject to change without notice

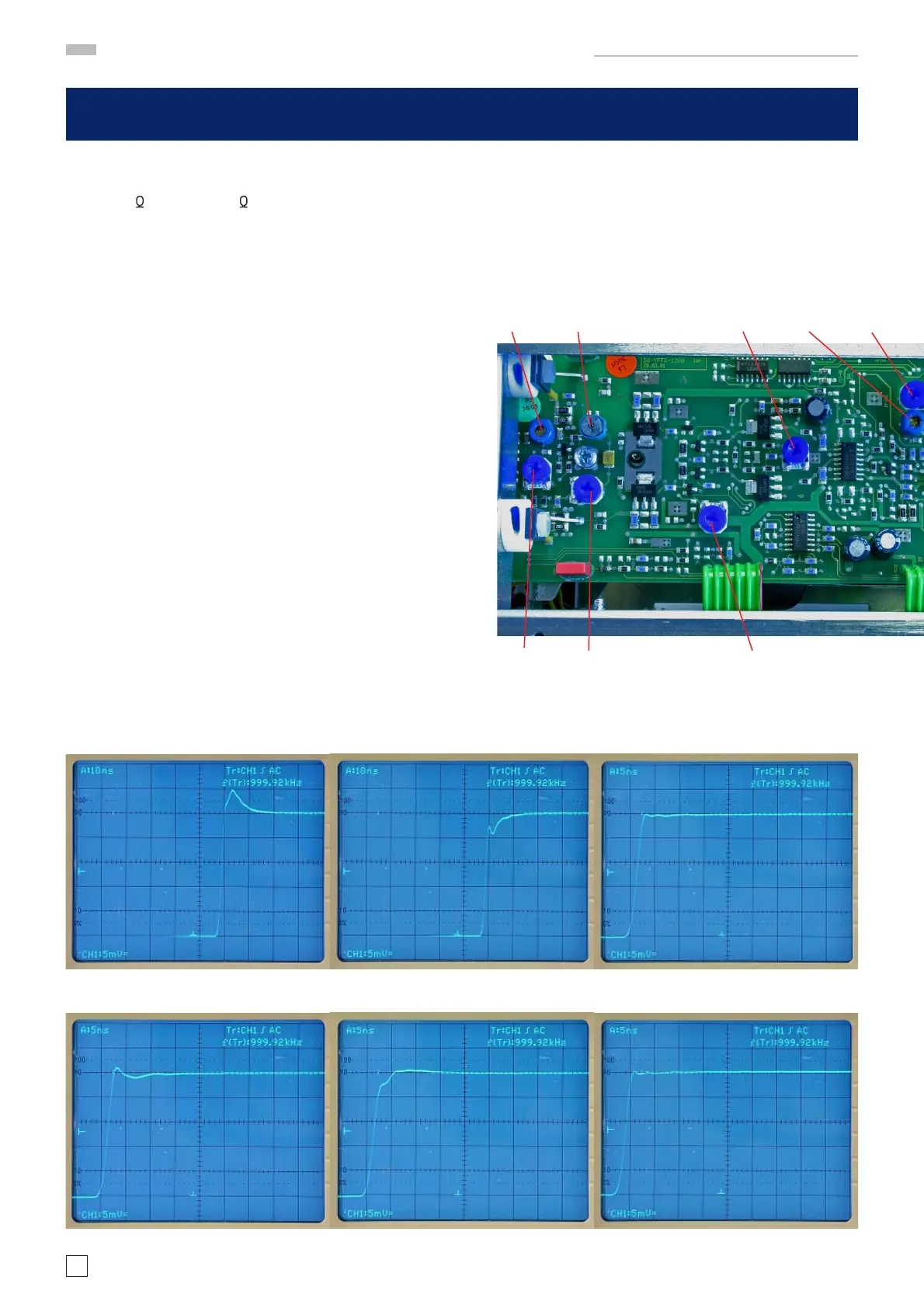

MANUAL ADJUSTMENT PROCEDURE HM1508-2
R9034 / C9001 and R9126 / C9037
67 Y-Final Amplifi er Adjustment
– Check that a 1 MHz square wave signal of 25 mV
pp
via 50
cable and 50 through termination is con-
nected to input CH 1.
– Set A time base to 50 ns/div.
– Locate and identify R9034 and C9001 on YF-Board.
– Adjust R9034 and C9001 for fast leading edge (mi-
nimum risetime) and minimum overshoot.
– Set A time base to 200 ns/div.
– Adjust R9034 and C9001 for a straight top of the
fi rst 20 ns.
– Locate and identify R9126 and C9037 on YF-Board.
– Adjust R9126 and C9037 for minimum ripple.
– Repeat item 65, 66 and 67 for optimum perfor-
mance.
– Remove signal from input CH 1.
– Continue with item 68.
C9001 C9037 R9114 C9045 R9118
R9034 R9126 R9057
resistors overcompensate resistors undercompensate correct
capacitors overcompensate capacitors undercompensate capacitors + resistors correct
