MANUAL ADJUSTMENT PROCEDURE HM1508-2
C2004

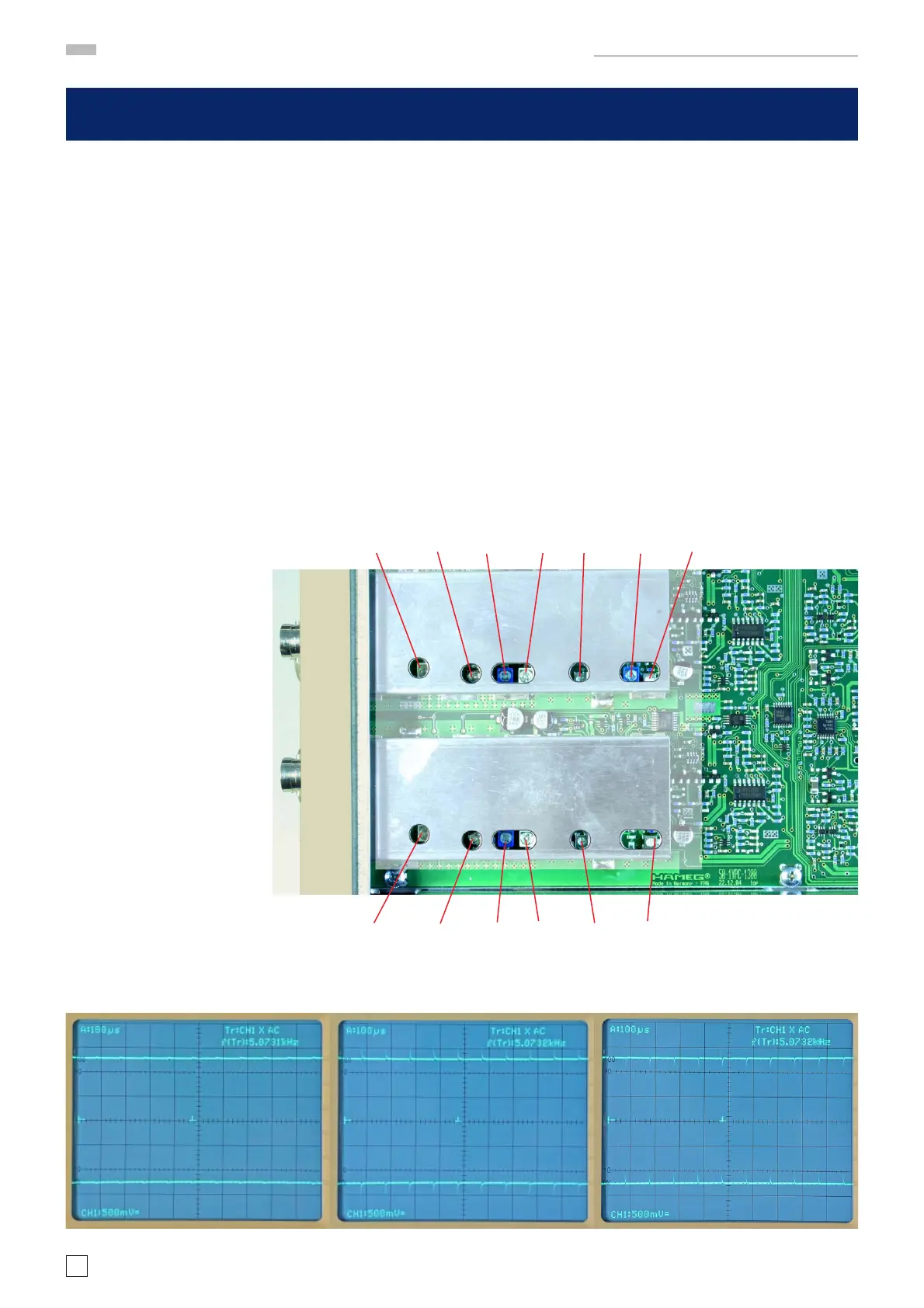

17 CH 1, 100:1 Attenuator Compensation
– Locate and identify C-Trimmer C2004 in the shielded CH 1 section of the YP board.
– Set amplitude calibrator (square wave generator) to 10 kHz.
– Set attenuator CH 1 to 500 mV/div.
– Increase the calibrator output voltage for 5 division signal height.
– Adjust C2004 for 2 parallel, straight lines.
correct overcompensate undercompensate
C2206 C2204 C2217 C2223 R2231 C2201 R2225
C2006 C2004 C2017 C2023 R2031 R2025
