Hameg CombiScope HM1508-2 Service Manual

92
Subject to change without notice

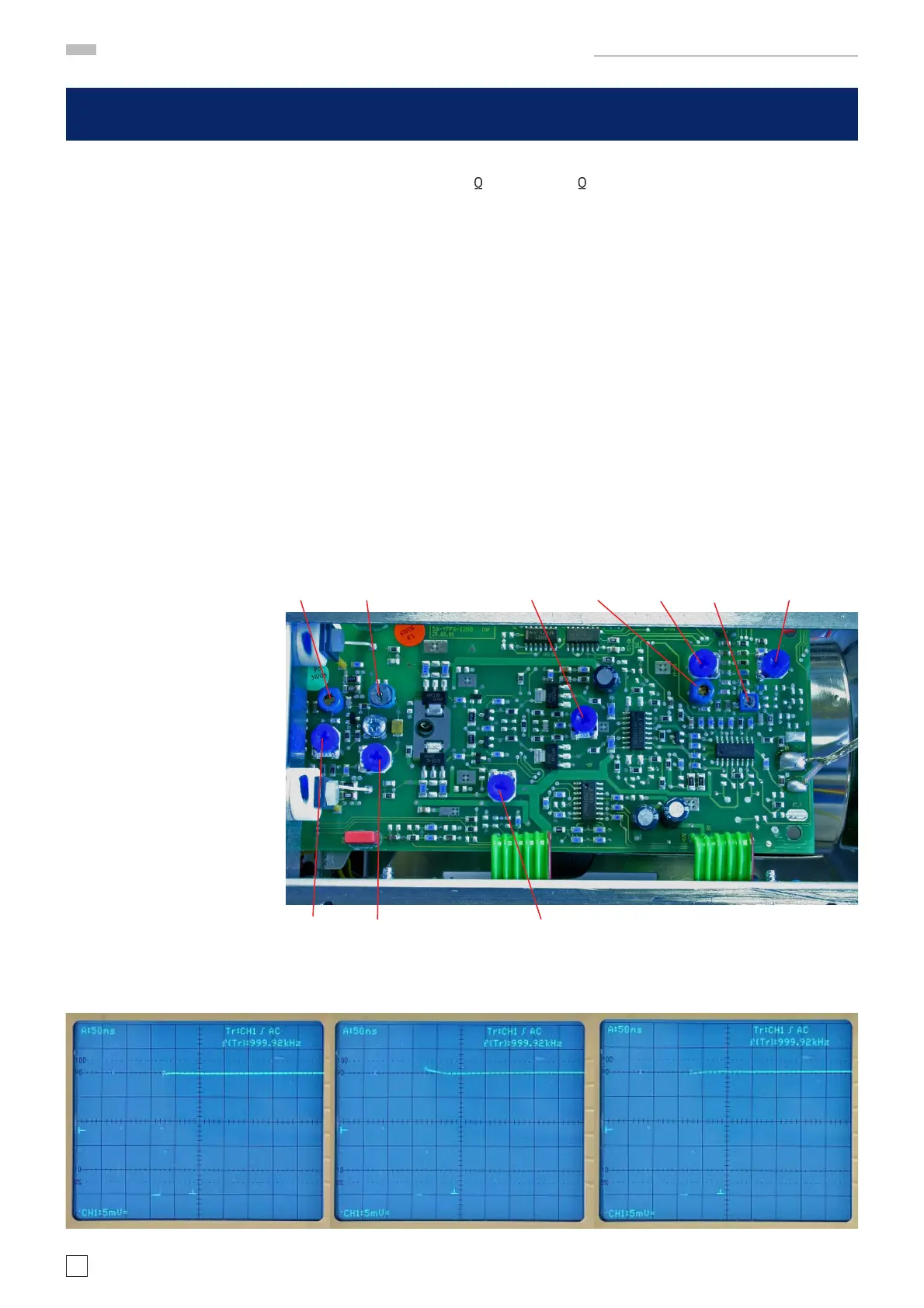

MANUAL ADJUSTMENT PROCEDURE HM1508-2
R9118, C9045
66 Y-Final Amplifi er Adjustment
– Connect a 1 MHz square wave signal of 25 mV
pp
via 50 cable and 50 through termination to input CH 1.
– Set A time base to 50 ns/div.
– Locate and identify R9118 and C9045 on YF-Board.
– Adjust R9118 and C9045 for fl at top of the fi rst third of the 1 MHz top.
– Continue with item 67.
C9001 C9037 R9114 C9045 R9118 C9009 R9149
R9034 R9126 R9057
correct overcompensate undercompensate
