Hameg CombiScope HM1508-2 Service Manual

91
Subject to change without notice

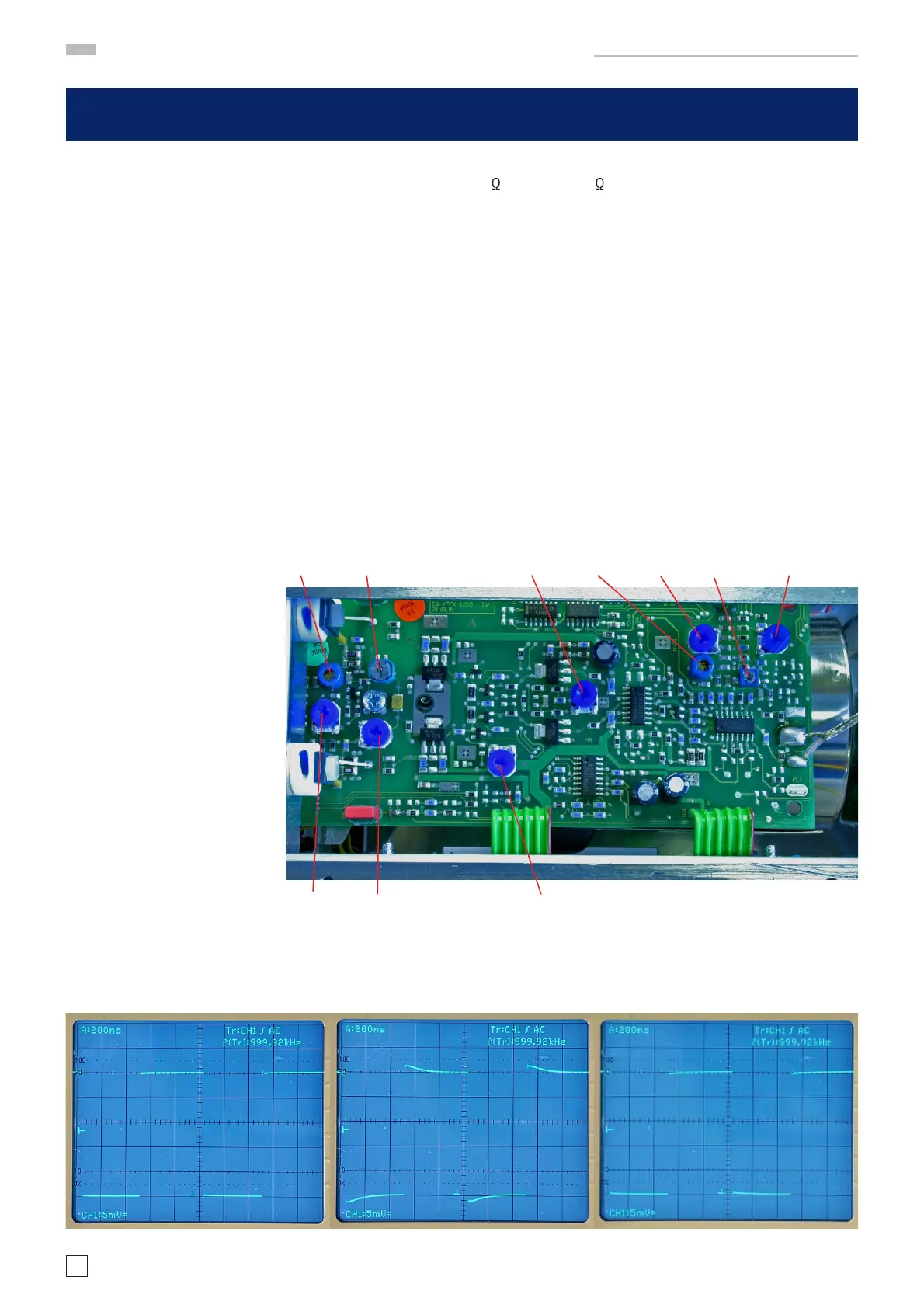

MANUAL ADJUSTMENT PROCEDURE HM1508-2
R9149
65 Y-Final Amplifi er Adjustment
– Check that a 1 MHz square wave signal of 25 mV
pp
via 50 cable and 50 through termination is connected
to input CH 1.
– Check that A time base is set to 200 ns/div.
– Locate and identify R9149 on YF-Board.
– Adjust R9149 for fl at top of the 1 MHz top.
– Continue with item 66.
C9001 C9037 R9114 C9045 R9118 C9009 R9149
R9034 R9126 R9057
correct overcompensate undercompensate
