Hameg CombiScope HM1508-2 Service Manual

74
Subject to change without notice

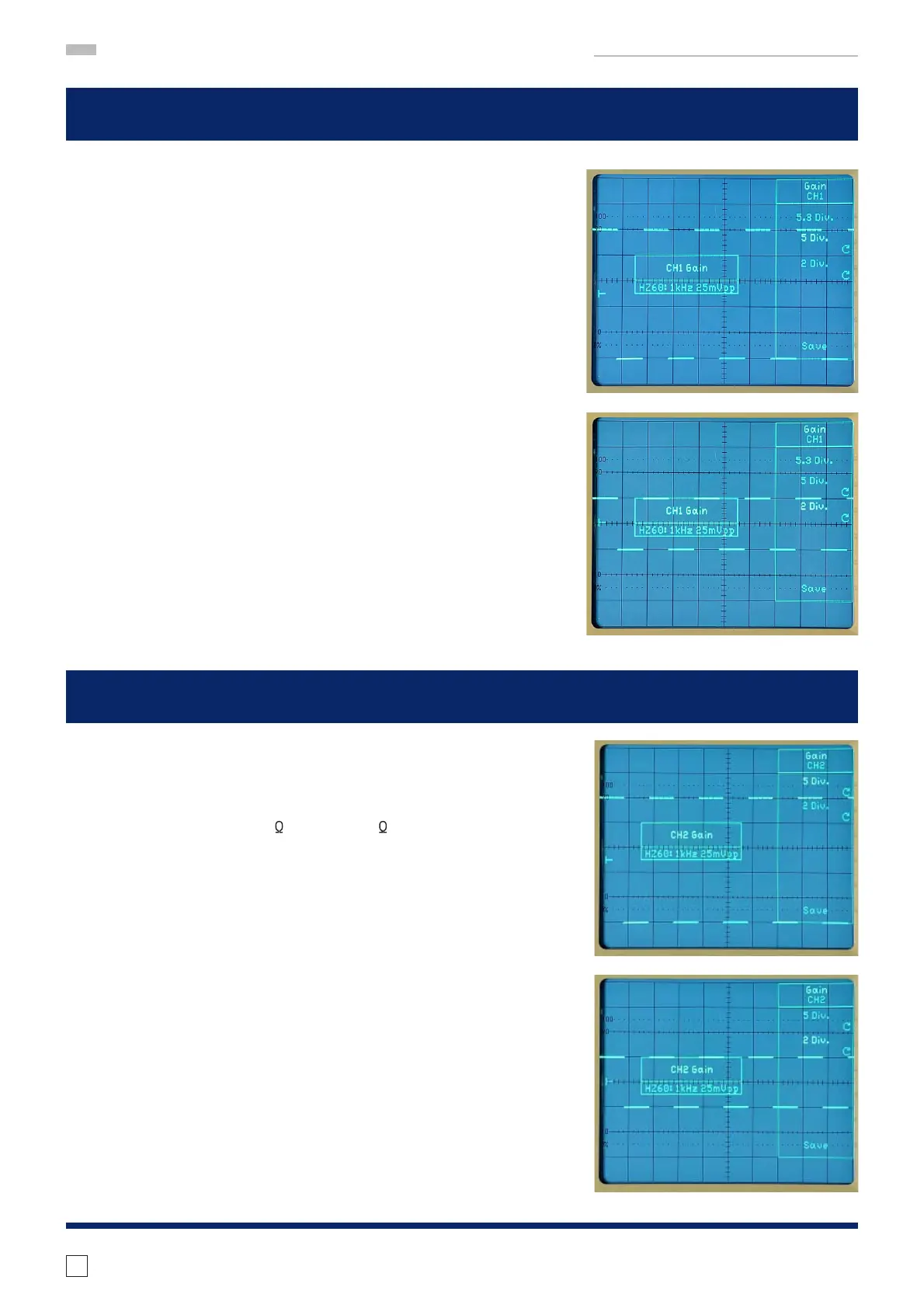

MANUAL ADJUSTMENT PROCEDURE HM1508-2
– Press “5 Div.” function key.
– Turn INTENS for 5 div. signal height.
– Press “2 Div.” function key.
– Turn INTENS for 2 div. signal height.
– Press “Save” function key to store the settings
into user memory and to return to “YP Gain” sub-
menu and continue with item 27.
– Press “CH 2” function key.
– Connect a 25 mVpp (accuracy ± 0.1%), 1 kHz
square wave signal via 50
cable and 50
through terminator to input CH 2.
– Press “5 Div.” function key.
– Turn INTENS for 5 div. signal height.
– Press “2 Div.” function key.
– Turn INTENS for 2 div. signal height.
– Press “Save” function key to store the settings
into user memory and to return to “YP Gain” sub-
menu.
– Press REM pushbutton (EXIT MENU) to return to
“Adjust 1 YP” menu and continue with item 28.
26 YP CH 1 Analog Gain (Software Adjustment)
5 div.
2 div.
27 YP CH 2 Analog Gain (Software Adjustment)
5 div.
2 div.
