59
Subject to change without notice

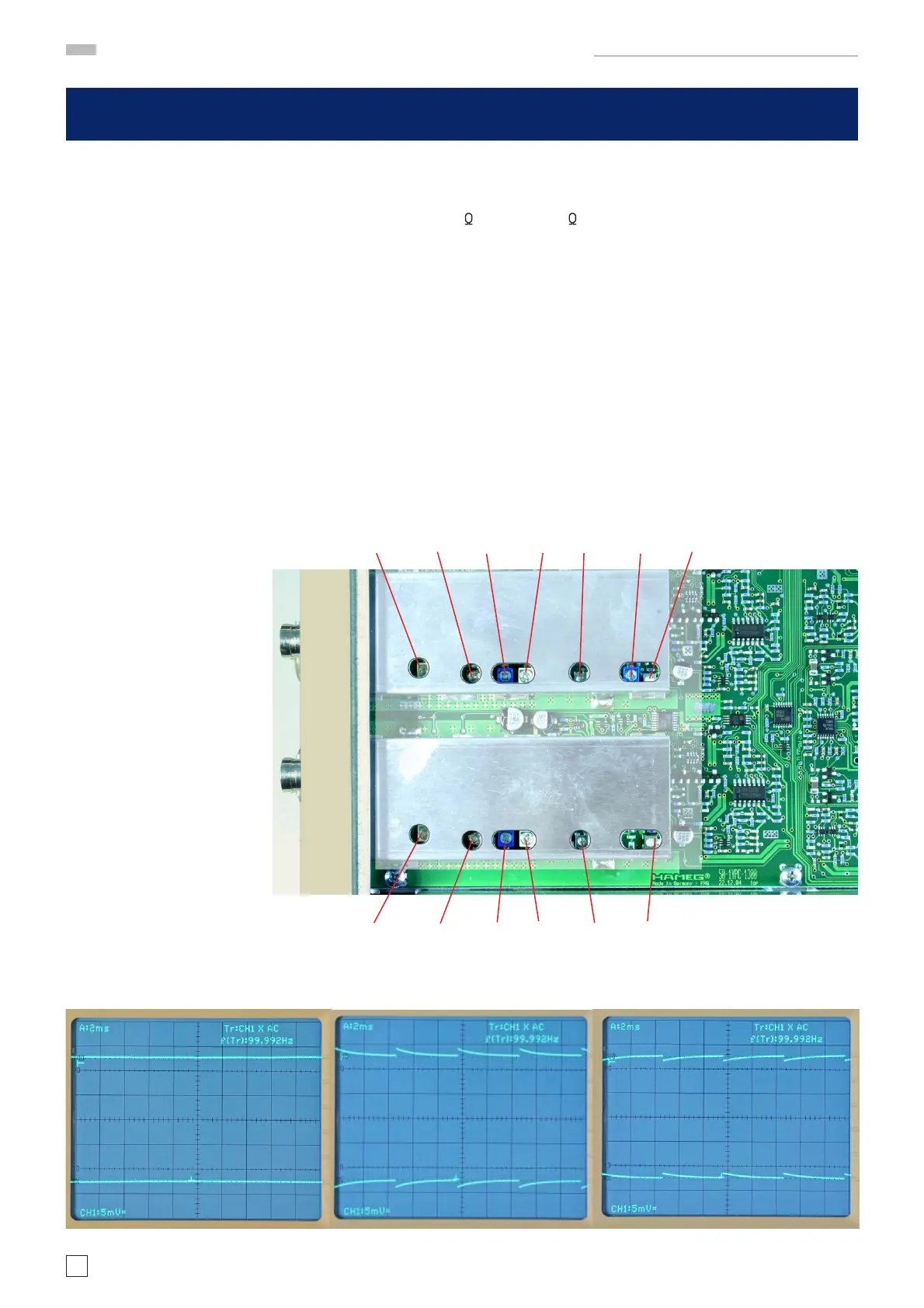

MANUAL ADJUSTMENT PROCEDURE HM1508-2
R2031
10 100 Hz Square Wave 5 mV/div CH 1
– Locate and identify R2031 in CH 1 section of the YP-Board.
– Connect a 25 mV
pp
, 100 Hz square wave signal via 50 cable and 50 through terminator to input CH 1.
– Check that DC input coupling is selected.
– Set time base to 2 ms/div.
– Press TRIGGER FILTER pushbutton and select Slope: Both.
– Adjust R2031 so that two straight lines are displayed.
Do not change the instrument settings until item 11 has been fi nished.
correct overcompensate undercompensate
C2206 C2204 C2217 C2223 R2231 C2201 R2225
C2006 C2004 C2017 C2023 R2031 R2025
