Replacing the stop switch
Preparation
• Switch off the scooter with the ignition key.
• Disconnect the batteries.
Instructions
The following operations are required to replace the stop
switch:

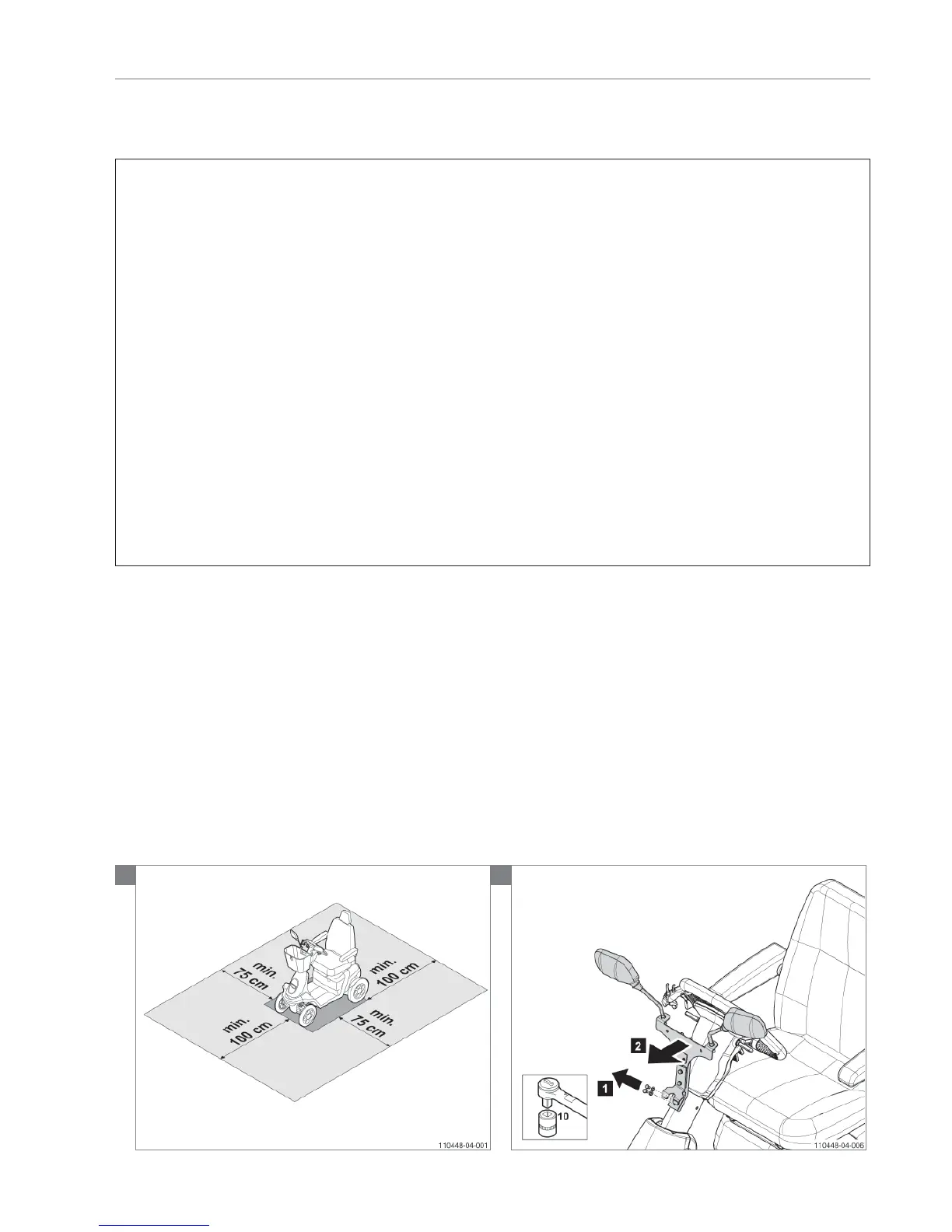

Note! Suitable work area required!
• Remove the basket and the mounting bracket for the
mirrors.
• Remove the two bolts and remove the front tiller cover.
• Remove the nut, the four Ejot screws and the
dashboard.
• Remove the tyrap
• Disconnect all connectors from the tiller PCB.
• Remove the three Ejot screws to remove the tiller PCB.
• Disconnect the connectors of the console bottom.
• Remove the recessed button head and Ejot screws,
disconnect the connectors the stop switch and remove
the top and bottom steering wheel covers.
• Mount the new stop switch.
• Rebuild the scooter in the reverse order.
Relevant article numbers
• 9006138 Emergency stop
Tools used
• Socket, 10 mm
• Screwdriver, crosshead
Notice
• Make sure the scooter is switched off.
1 2
