Mount the lap strap with roll-up to the Master seat
Preparation
• Switch off the scooter with the ignition key.
Instructions
The following operations are required to mount the lap
strap with roll-up to the Master Seat:
Note! Suitable work area required!
• Unzip the cover from the Master seat

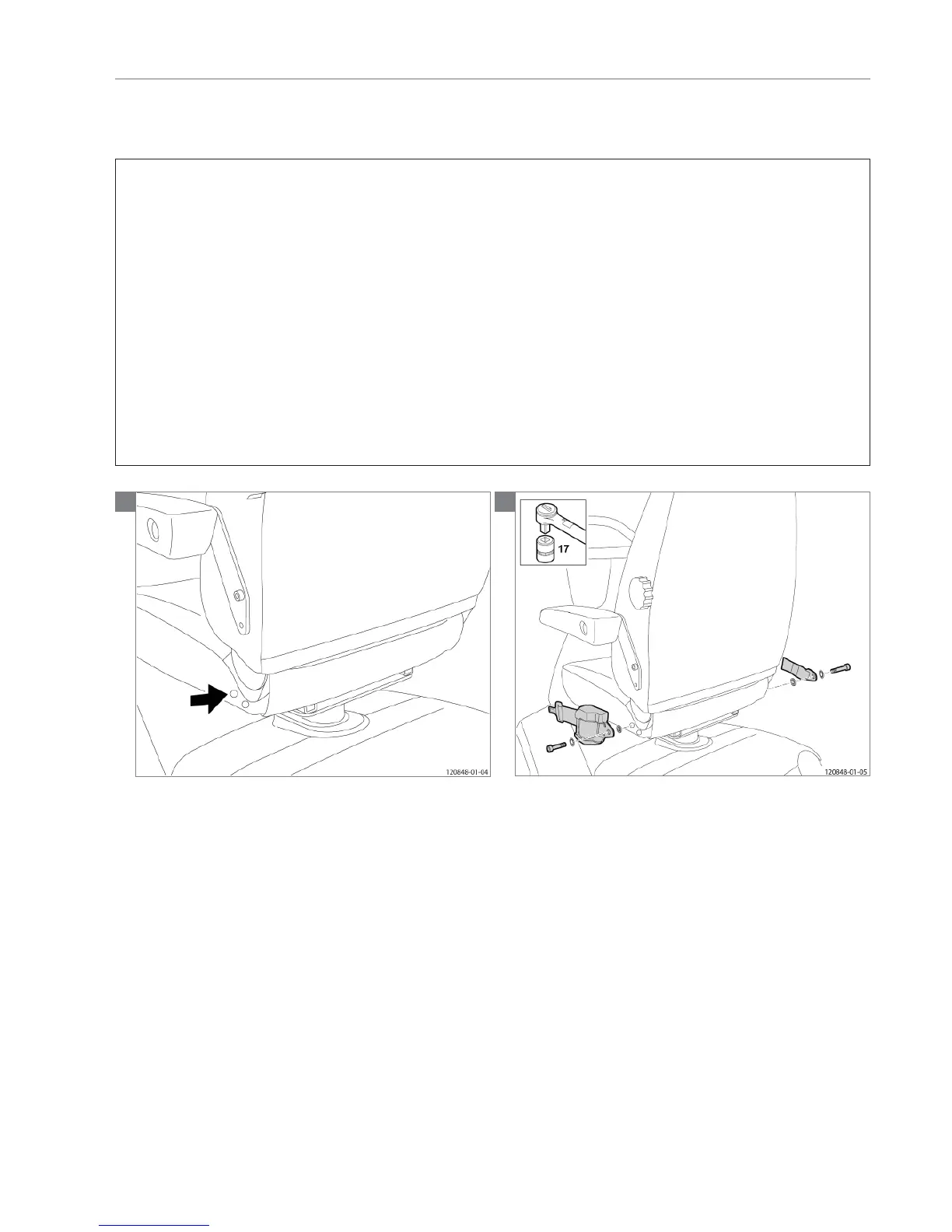

• The frame has a hole on the left and right side. Make on
both sides (at the level of the hole) a notch in the cover.
• Left side: The locknut needs to be mounted on the inside
of the frame.
• Right side: The plastic bushings and pivot van needs to
be used on the right side.
• When everything is mounted, place the black cap on the
bolts.
• Turn the fl aps of the cover with velcro inside and close
the zipper carefully. Fold also the zipper back inside.
Relevant article numbers
• 1015507 Lap strap with roll-up for Master Seat
Tools used
• Socket, 17 mm
1
2
