Trophy66 | Service instructions 66 | Service instructions
Mount the mounting bracket
Preparation
• Switch off the scooter with the ignition key.
Instructions
The following operations are required to mount the
mounting bracket:
Note! Suitable work area required!

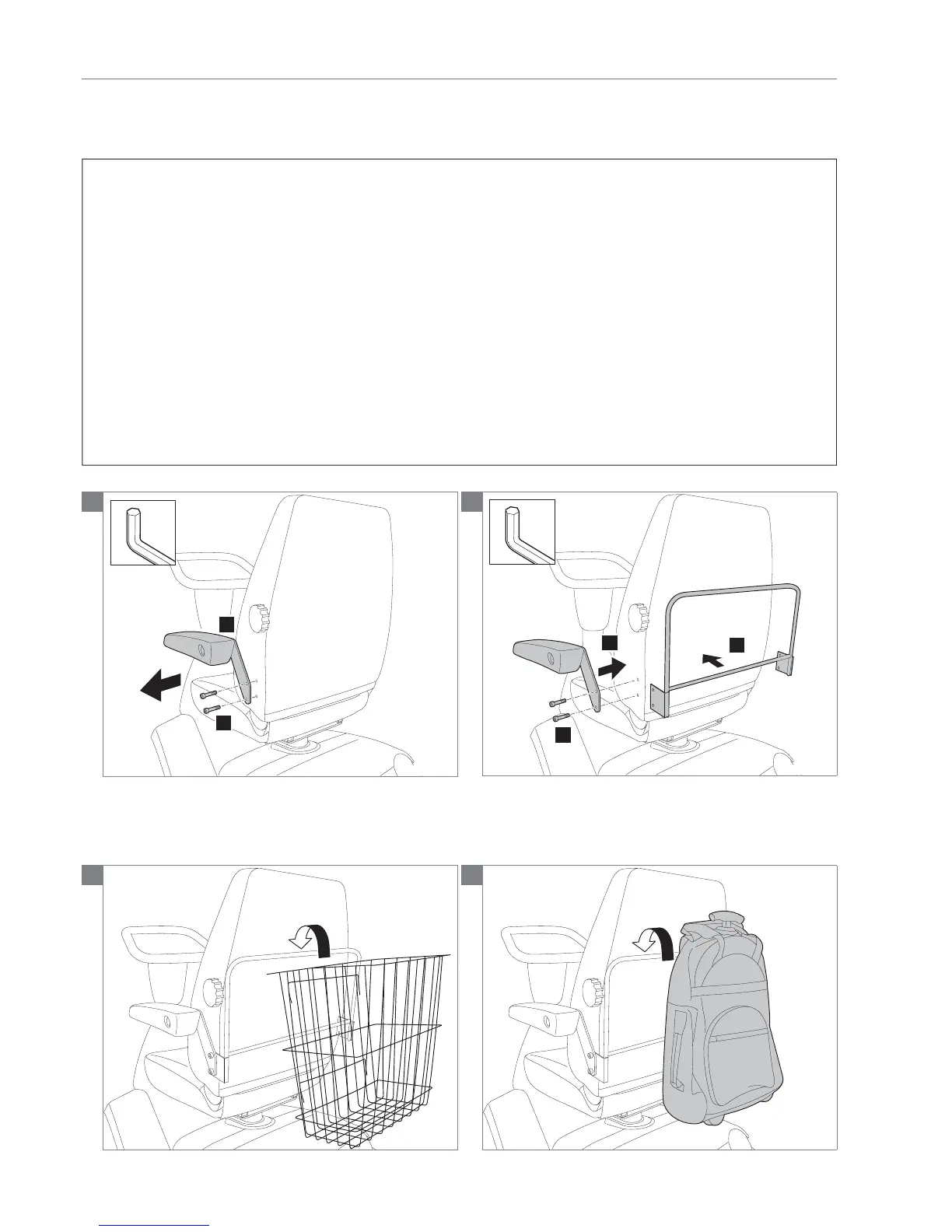

• Remove the armrest on both sides from the backrest
frame.
• Mount with the two bolts on every side the mounting
bracket on the backrest frame.
• Put the basket or trolley bag on the mounting bracket.
Relevant article numbers
• 9000620 Mounting bracket rear
• 4930 Basket
• 1015545 Trolley bag
Tools used
• Allen key, 6 mm
1
110948-03-005
1
2
6
2
1
2
3
110948-03-006
6
3
